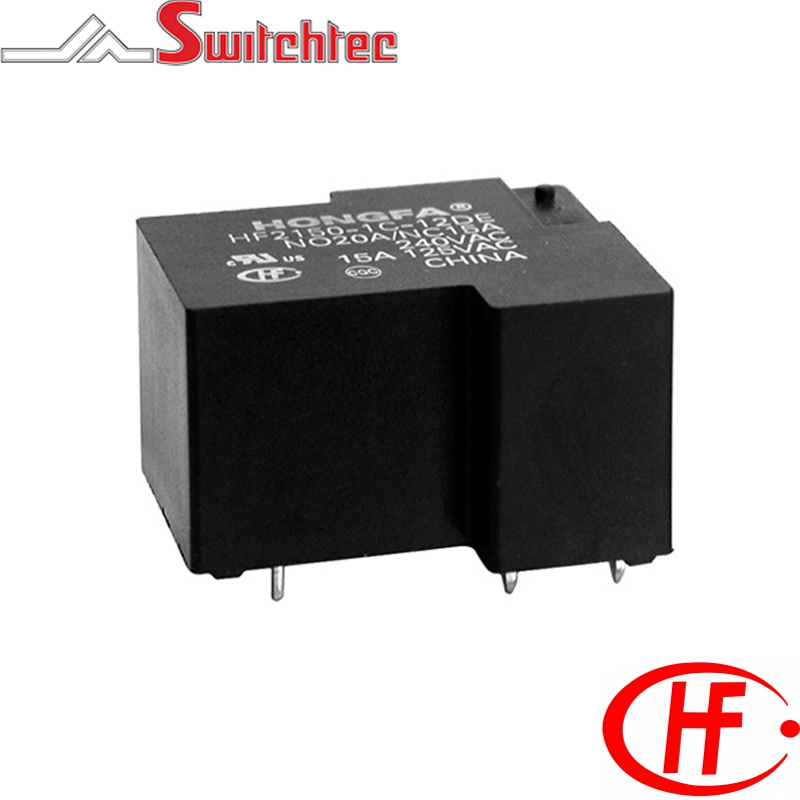

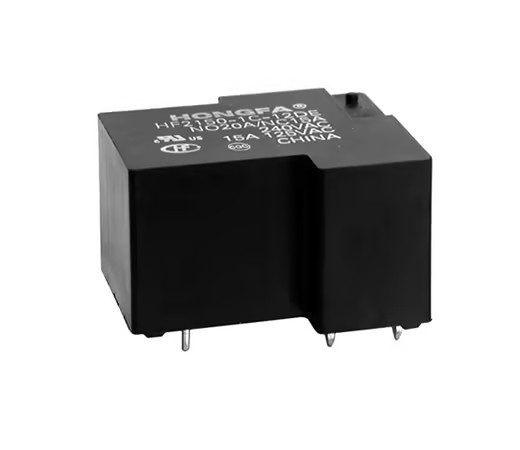

20 Amp 1 Pole Changeover - 1 Form C

20 Amp 1 Pole Changeover - 1 Form C

  • 20 Amp switching capacity
  • 900mW Coil
  • 1 Form C contact
  • PCB Coil terminals, suitable for heavy duty load
  • Heavy load up to 7200VA
  • Plastic sealed and Flux proofed types available
  • Class F Insulation available
  • RoHS compliant
  • Approvals UL and CQC



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF2150-1C005DEF HONGFA PCB POWER RELAY 5VDC 20A 1CO HF2150-1C-005DEF 1C - Single Pole Changeover 5VDC 900mW 6.5 20 AMP 3.75 0.5 27 x (1�10%)
HF2150-1C006DEF HONGFA PCB POWER RELAY 6VDC 20A 1CO HF2150-1C-006DEF 1C - Single Pole Changeover 6VDC 900mW 7.8 20 AMP 4.5 0.6 40 x (1�10%)
HF2150-1C009DEF HONGFA PCB POWER RELAY 9VDC 20A 1CO HF2150-1C-009DEF 1C - Single Pole Changeover 9VDC 900mW 11.7 20 AMP 6.75 0.9 97 x (1�10%)
HF2150-1C012DEF HONGFA PCB POWER RELAY 12VDC 20A 1CO HF2150-1C-012DEF 1C - Single Pole Changeover 12VDC 900mW 15.6 20 AMP 9 1.2 155 x (1�10%)
HF2150-1C015DEF HONGFA PCB POWER RELAY 15VDC 20A 1CO HF2150-1C-015DEF 1C - Single Pole Changeover 15VDC 900mW 19.5 20 AMP 11.25 1.5 256 x (1�10%)
HF2150-1C018DEF HONGFA PCB POWER RELAY 18VDC 20A 1CO HF2150-1C-018DEF 1C - Single Pole Changeover 18VDC 900mW 23.4 20 AMP 13.5 1.8 380 x (1�10%)
HF2150-1C024DEF HONGFA PCB POWER RELAY 24VDC 20A 1CO HF2150-1C-024DEF 1C - Single Pole Changeover 24VDC 900mW 31.2 20 AMP 18 2.4 660 x (1�10%)
HF2150-1C048DEF HONGFA PCB POWER RELAY 48VDC 20A 1CO HF2150-1C-048DEF 1C - Single Pole Changeover 48VDC 900mW 62.4 20 AMP 36 4.8 2560 x (1�10%)
HF2150-1C070DEF HONGFA PCB POWER RELAY 70VDC 20A 1CO HF2150-1C-070DEF 1C - Single Pole Changeover 70VDC 900mW 91 20 AMP 52.5 7 5500 x (1�10%)
HF2150-1C110DEF HONGFA PCB POWER RELAY 110VDC 20A 1CO HF2150-1C-110DEF 1C - Single Pole Changeover 110VDC 900mW 143 20 AMP 82.5 11 13450 x (1�10%)
