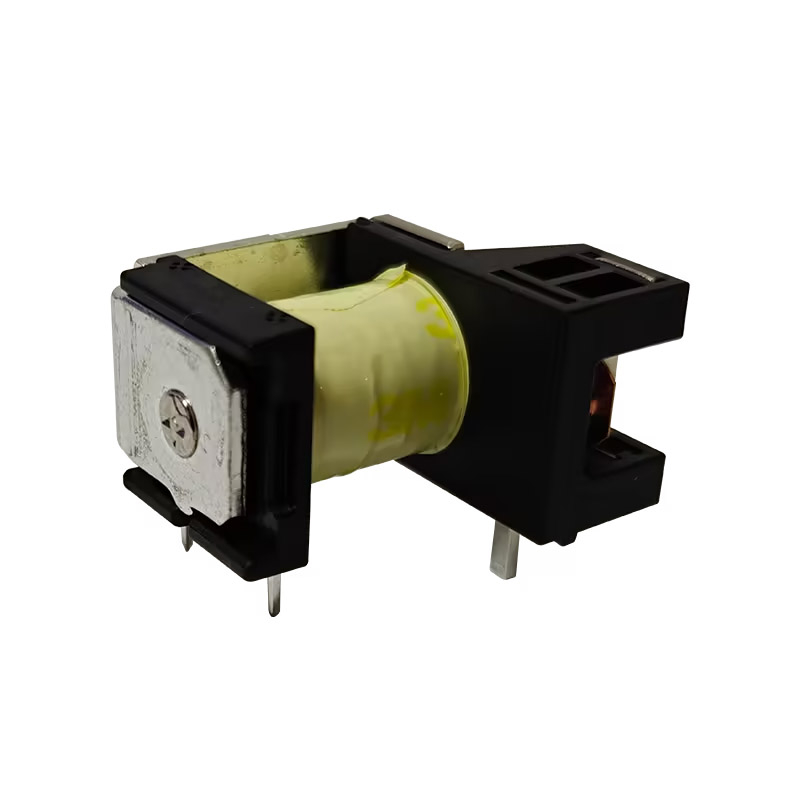

20 Amp 1 Pole Changeover - 1 Form C

20 Amp 1 Pole Changeover - 1 Form C

  • 20 Amp switching capacity
  • 900mW Coil
  • 1 Form C contact
  • PCB Coil terminals, suitable for heavy duty load
  • 2.5KV dielectric strength (between coil and contacts)
  • Unenclosed type available
  • Class F Insulation available
  • RoHS compliant
  • Approvals UL and CQC



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF2120-1C-110DF HONGFA PCB POWER RELAY 110DC 20A 1CO HF2120-1C-110DF 1C - Single Pole Changeover 110VDC 900mW 143 20 AMP 82.5 11 13450 x (1�10%)
HF2120-1C-12DF HONGFA PCB POWER RELAY 12VDC 20A 1CO HF2120-1C-12DF 1C - Single Pole Changeover 12VDC 900mW 15.6 20 AMP 9 1.2 155 x (1�10%)
HF2120-1C-15DF HONGFA PCB POWER RELAY 15VDC 20A 1CO HF2120-1C-15DF 1C - Single Pole Changeover 15VDC 900mW 19.5 20 AMP 11.25 1.5 256 x (1�10%)
HF2120-1C-18DF HONGFA PCB POWER RELAY 18VDC 20A 1CO HF2120-1C-18DF 1C - Single Pole Changeover 18VDC 900mW 23.4 20 AMP 13.5 1.8 380 x (1�10%)
HF2120-1C-24DF HONGFA PCB POWER RELAY 24VDC 20A 1CO HF2120-1C-24DF 1C - Single Pole Changeover 24VDC 900mW 31.2 20 AMP 18 2.4 660 x (1�10%)
HF2120-1C-48DF HONGFA PCB POWER RELAY 48VDC 20A 1CO HF2120-1C-48DF 1C - Single Pole Changeover 48VDC 900mW 62.4 20 AMP 36 4.8 2560 x (1�10%)
HF2120-1C-5DF HONGFA PCB POWER RELAY 5VDC 20A 1CO HF2120-1C-5DF 1C - Single Pole Changeover 5VDC 900mW 6.5 20 AMP 3.75 0.5 27 x (1�10%)
HF2120-1C-6DF HONGFA PCB POWER RELAY 6VDC 20A 1CO HF2120-1C-6DF 1C - Single Pole Changeover 6VDC 900mW 7.8 20 AMP 4.5 0.6 40 x (1�10%)
HF2120-1C-70DF HONGFA PCB POWER RELAY 70VDC 20A 1CO HF2120-1C-70DF 1C - Single Pole Changeover 70VDC 900mW 91 20 AMP 52.5 7 5500 x (1�10%)
HF2120-1C-9DF HONGFA PCB POWER RELAY 9VDC 20A 1CO HF2120-1C-9DF 1C - Single Pole Changeover 9VDC 900mW 11.7 20 AMP 6.75 0.9 97 x (1�10%)
