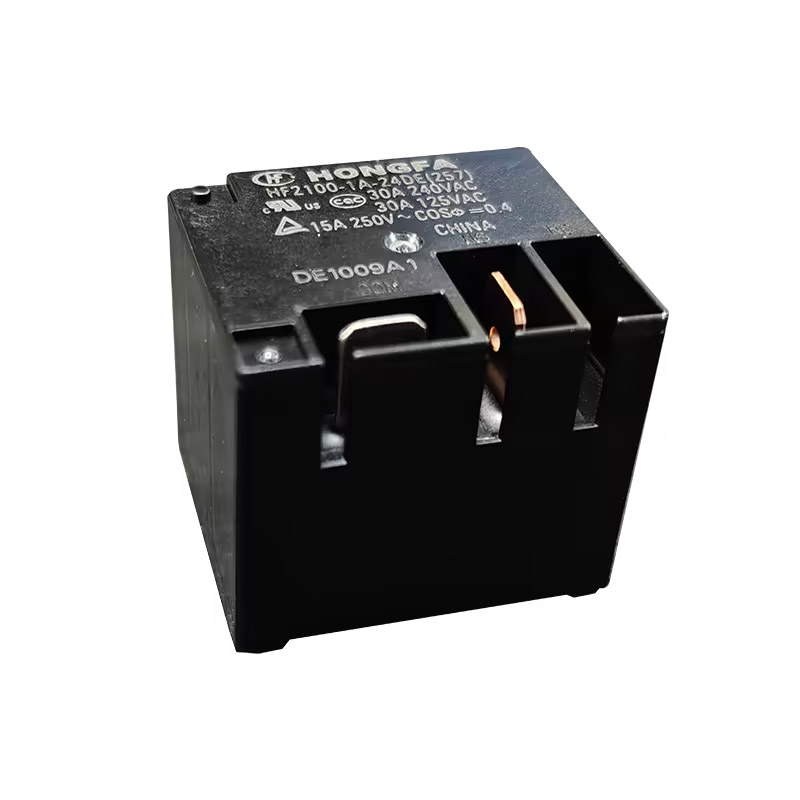

30 Amp 1 Pole Normally Open Relay

30 Amp 1 Pole Normally Open Relay

  • 30 Amp switching capacity
  • 1 Form A contact
  • PCB Coil terminals, suitable for heavy duty load
  • 2.5KV dielectric strength (between coil and contacts)
  • Plastic sealed and Flux proofed types available
  • Class F Insulation available
  • RoHS compliant
  • Approvals UL, CQC and TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF21001A005DEF HONGFA PCB POWER RELAY 5VDC 30A 1NO HF2100-1A-005DEF 1A - Single Pole Normally Open 5VDC 900mW 6.5 30 AMP 3.75 0.5 27 x (1�10%)
HF21001A006DEF HONGFA PCB POWER RELAY 6VDC 30A 1NO HF2100-1A-006DEF 1A - Single Pole Normally Open 6VDC 900mW 7.8 30 AMP 4.5 0.6 40 x (1�10%)
HF21001A009DEF HONGFA PCB POWER RELAY 9VDC 30A 1NO HF2100-1A-009DEF 1A - Single Pole Normally Open 9VDC 900mW 11.7 30 AMP 6.75 0.9 97 x (1�10%)
HF21001A012DEF HONGFA PCB POWER RELAY 12VDC 30A 1NO HF2100-1A-012DEF 1A - Single Pole Normally Open 12VDC 900mW 15.6 30 AMP 9 1.2 155 x (1�10%)
HF21001A015DEF HONGFA PCB POWER RELAY 15VDC 30A 1NO HF2100-1A-015DEF 1A - Single Pole Normally Open 15VDC 900mW 19.5 30 AMP 11.25 1.5 256 x (1�10%)
HF21001A018DEF HONGFA PCB POWER RELAY 18VDC 30A 1NO HF2100-1A-018DEF 1A - Single Pole Normally Open 18VDC 900mW 23.4 30 AMP 13.5 1.8 380 x (1�10%)
HF21001A024DEF HONGFA PCB POWER RELAY 24VDC 30A 1NO HF2100-1A-024DEF 1A - Single Pole Normally Open 24VDC 900mW 31.2 30 AMP 18 2.4 660 x (1�10%)
HF21001A048DEF HONGFA PCB POWER RELAY 48VDC 30A 1NO HF2100-1A-048DEF 1A - Single Pole Normally Open 48VDC 900mW 62.4 30 AMP 36 4.8 2560 x (1�10%)
HF21001A070DEF HONGFA PCB POWER RELAY 70VDC 30A 1NO HF2100-1A-070DEF 1A - Single Pole Normally Open 70VDC 900mW 91 30 AMP 52.5 7 5500 x (1�10%)
HF21001A110DEF HONGFA PCB POWER RELAY 110VDC 30A 1NO HF2100-1A-110DEF 1A - Single Pole Normally Open 110VDC 900mW 143 30 AMP 82.5 11 13450 x (1�10%)
