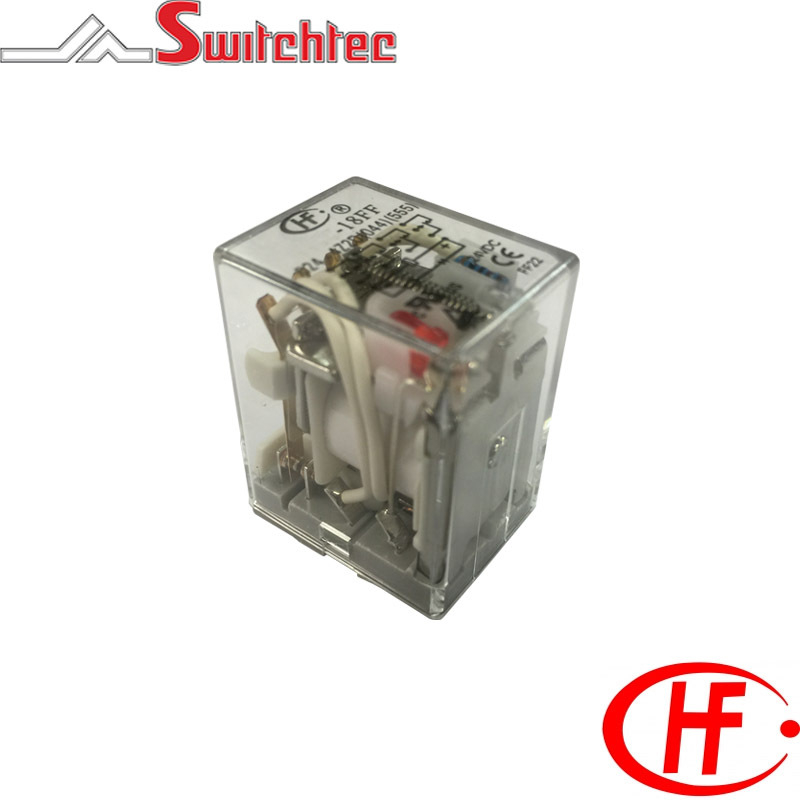

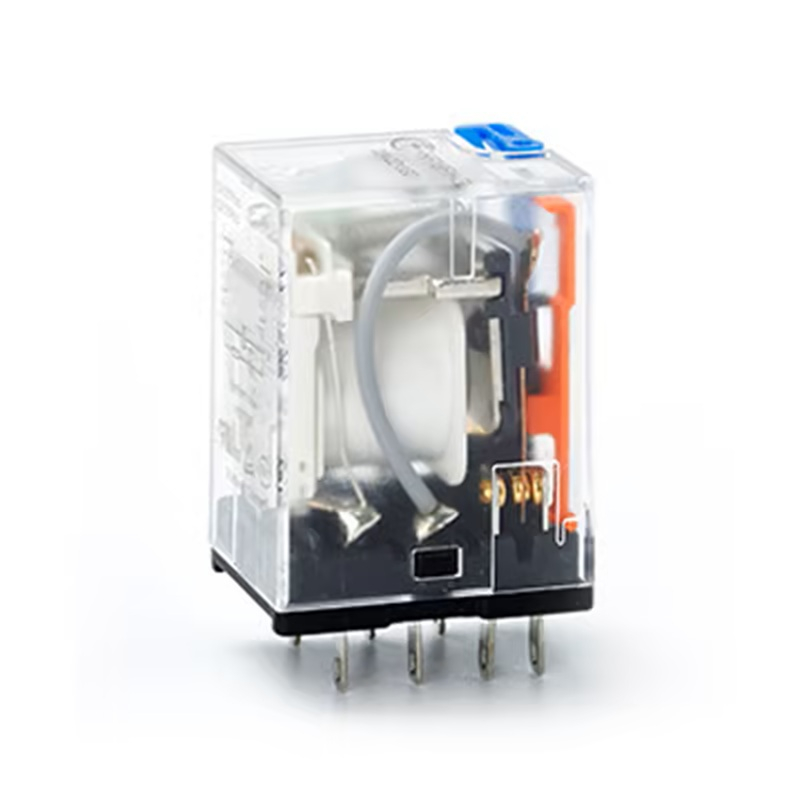

5 Amp 4 Pole Changeover - 4 Form C

5 Amp 4 Pole Changeover - 4 Form C

  • 5 Amp switching capacity
  • 1.5kV dielectric strength between coil and contact
  • AC Coil version
  • 4 pole configuration
  • LED indication available
  • Contact material silver alloy. Silver alloy + Au plated available
  • RoHS compliant
  • Dust protected
  • Approvals UL/CUR, TUV and CQC



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF18FFA0064Z1D HONGFA PCB POWER RELAY 6AC 5A 4P HF18FF/A006-4Z1D(044) 4C - 4 Pole Changeover 6VAC 1.2 - 1.8VA 6.6 5 AMP 4.8 1.8 11.5 x (1�10%)
HF18FFA0124Z1D HONGFA PCB POWER RELAY 12AC 5A 4P HF18FF/A012-4Z1D(044) 4C - 4 Pole Changeover 12VAC 1.2 - 1.8VA 13.2 5 AMP 9.6 3.6 46 x (1�10%)
HF18FFA0244Z1D HONGFA PCB POWER RELAY 24VAC 5A 4P HF18FF/A024-4Z1D(044) 4C - 4 Pole Changeover 24VAC 1.2 - 1.8VA 26.4 5 AMP 19.2 7.2 184 x (1�10%)
HF18FFA0484Z1D HONGFA PCB POWER RELAY 48AC 5A 4P HF18FF/A048-4Z1D(044) 4C - 4 Pole Changeover 48VAC 1.2 - 1.8VA 52.4 5 AMP 38.4 14.4 735 x (1�10%)
HF18FFA1204Z1D HONGFA PCB POWER RELAY 120AC 5A 4P HF18FF/A120-4Z1D(044) 4C - 4 Pole Changeover 120VAC 1.2 - 1.8VA 132 5 AMP 88 36 4550 x (1�10%)
HF18FFA2404Z1D HONGFA PCB POWER RELAY 240AC 5A 4P HF18FF/A240-4Z1D(044) 4C - 4 Pole Changeover 240VAC 1.2 - 1.8VA 264 5 AMP 176 72 18790 x (1�10%)
