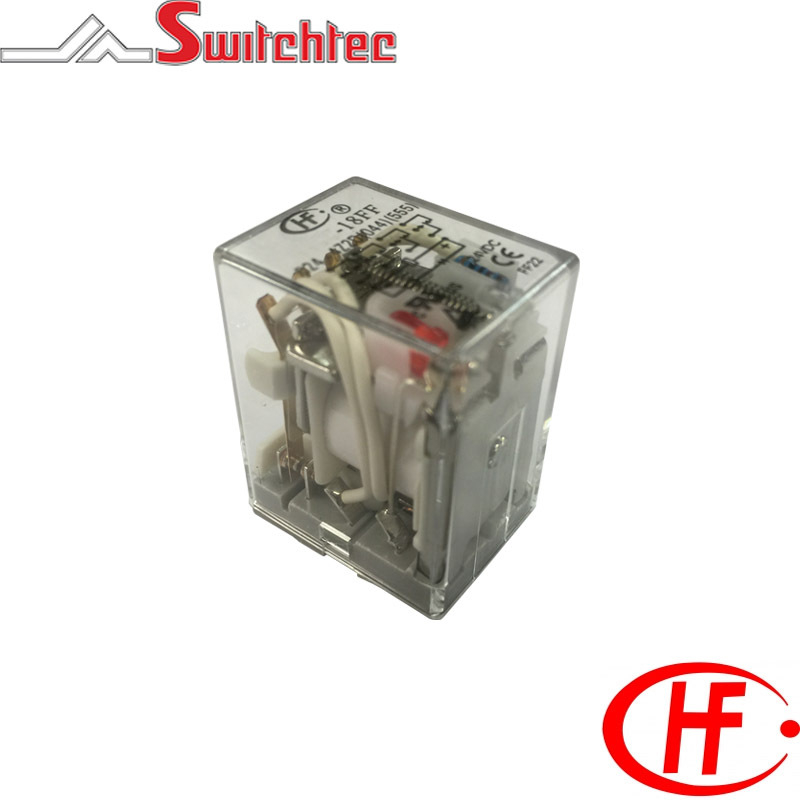

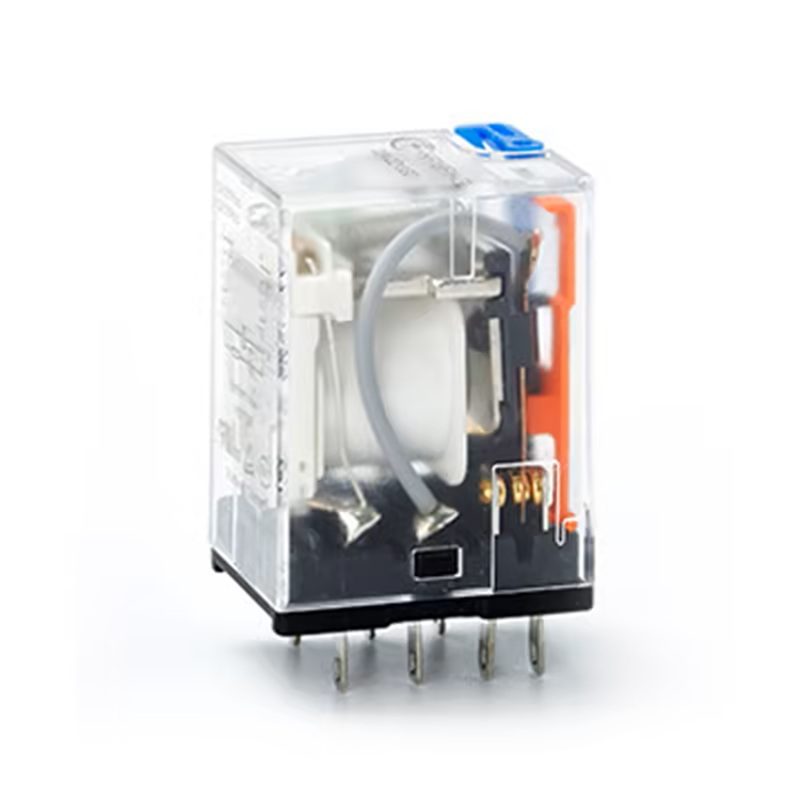

5 Amp 4 Pole Changeover - 4 Form C

5 Amp 4 Pole Changeover - 4 Form C

  • 5 Amp switching capacity
  • 1.5kV dielectric strength between coil and contact
  • DC Coil Version
  • 4 pole configuration
  • LED indication available
  • Contact material silver alloy. Silveralloy + Au plated available
  • RoHS compliant
  • Dust protected
  • Approvals UL/CUR, TUV and CQC



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF18FF0054Z1D HONGFA PCB POWER RELAY 5VDC 5A 4P HF18FF/005-4Z1D(044) 4C - 4 Pole Changeover 5VDC 0.9 - 1.1W 5.5 5 AMP 4 0.5 27.5 x (1�10%)
HF18FF0064Z1D HONGFA PCB POWER RELAY 6VDC 5A 4P HF18FF/006-4Z1D(044) 4C - 4 Pole Changeover 6VDC 0.9 - 1.1W 6.6 5 AMP 4.8 0.6 40 x (1�10%)
HF18FF0124Z1D HONGFA PCB POWER RELAY 12VDC 5A 4P HF18FF/012-4Z1D(044) 4C - 4 Pole Changeover 12VDC 0.9 - 1.1W 13.2 5 AMP 9.6 1.2 160 x (1�10%)
HF18FF0244Z1D HONGFA PCB POWER RELAY 24VDC 5A 4P HF18FF/024-4Z1D(044) 4C - 4 Pole Changeover 24VDC 0.9 - 1.1W 26.4 5 AMP 19.2 2.4 650 x (1�10%)
HF18FF0484Z1D HONGFA PCB POWER RELAY 48VDC 5A 4P HF18FF/048-4Z1D(044) 4C - 4 Pole Changeover 48VDC 0.9 - 1.1W 52.8 5 AMP 38.4 4.8 2600 x (1�10%)
HF18FF1104Z1D HONGFA PCB POWER RELAY 110VDC 5A 4P HF18FF/110-4Z1D(044) 4C - 4 Pole Changeover 110VDC 0.9 - 1.1W 121 5 AMP 88 11 11000 x (1�10%)
