Flux Proofed

Flux Proofed

No detailed description is available for this product.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price

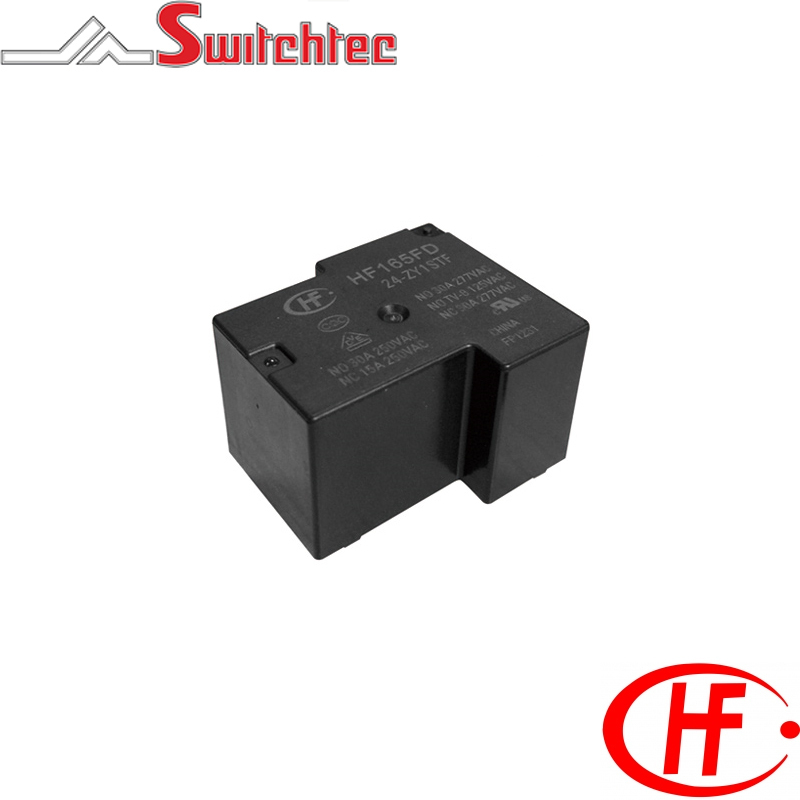

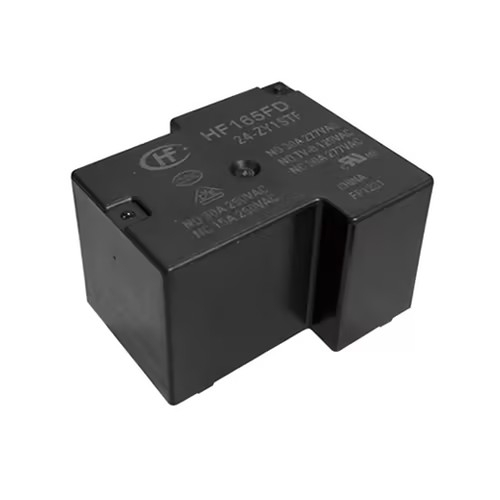

HF165FD005HY2TF HONGFA PCB POWER RELAY 5VDC 30A 1NO HF165FD/005-HY2TF 1A - Single Pole Normally Open 5VDC 900mW 6.5 30AMP 3.75 0.5 27 x (1�10%)
HF165FD006HY2TF HONGFA PCB POWER RELAY 6VDC 30A 1NO HF165FD/006-HY2TF 1A - Single Pole Normally Open 6VDC 900mW 7.8 30AMP 4.5 0.6 40 x (1�10%)
HF165FD009HY2TF HONGFA PCB POWER RELAY 9VDC 30A 1NO HF165FD/009-HY2TF 1A - Single Pole Normally Open 9VDC 900mW 11.7 30AMP 6.75 0.9 97 x (1�10%)
HF165FD012HY2TF HONGFA PCB POWER RELAY 12VDC 30A 1NO HF165FD/012-HY2TF 1A - Single Pole Normally Open 12VDC 900mW 15.6 30AMP 9 1.2 155 x (1�10%)
HF165FD015HY2TF HONGFA PCB POWER RELAY 15VDC 30A 1NO HF165FD/015-HY2TF 1A - Single Pole Normally Open 15VDC 900mW 19.5 30AMP 11.25 1.5 256 x (1�10%)
HF165FD018HY2TF HONGFA PCB POWER RELAY 18VDC 30A 1NO HF165FD/018-HY2TF 1A - Single Pole Normally Open 18VDC 900mW 23.4 30AMP 13.5 1.8 380 x (1�10%)
HF165FD024HY2TF HONGFA PCB POWER RELAY 24VDC 30A 1NO HF165FD/024-HY2TF 1A - Single Pole Normally Open 24VDC 900mW 31.2 30AMP 18 2.4 660 x (1�10%)
HF165FD048HY2TF HONGFA PCB POWER RELAY 48VDC 30A 1NO HF165FD/048-HY2TF 1A - Single Pole Normally Open 48VDC 900mW 62.4 30AMP 36 4.8 2560 x (1�10%)
HF165FD110HY2TF HONGFA PCB POWER RELAY 110VDC 30A 1NO HF165FD/110-HY2TF 1A - Single Pole Normally Open 48VDC 900mW 143 30AMP 82.5 11 13450 x (1�10%)
