High Dielectric Strength (4000VAC Between Coil & Contacts)

High Dielectric Strength (4000VAC Between Coil & Contacts)

No detailed description is available for this product.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price

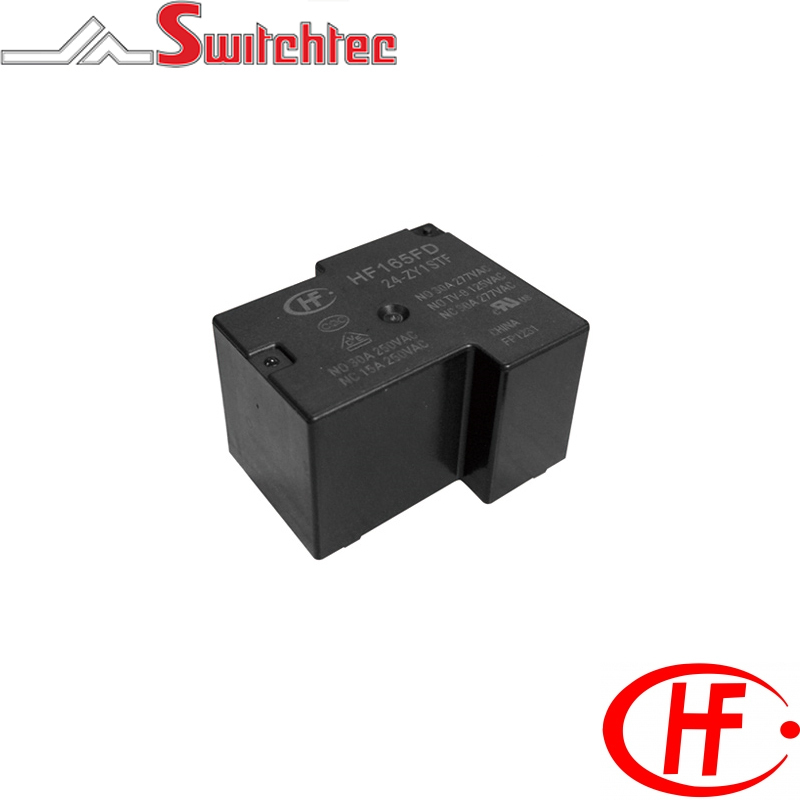

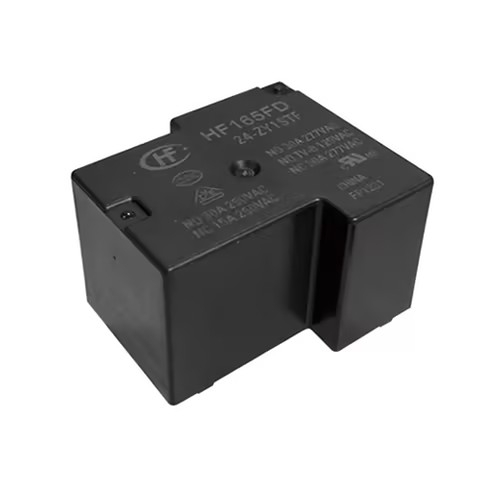

HF165FD005ZY1STFV HONGFA PCB POWER RELAY 5VDC 30A 1CO HF165FD/005-ZY1STFV 1C - Single Pole Changeover 5VDC 900mW 6.5 30AMP 3.75 0.5 27 x (1�10%)
HF165FD006ZY1STFV HONGFA PCB POWER RELAY 6VDC 30A 1CO HF165FD/006-ZY1STFV 1C - Single Pole Changeover 6VDC 900mW 7.8 30AMP 4.5 0.6 40 x (1�10%)
HF165FD009ZY1STFV HONGFA PCB POWER RELAY 9VDC 30A 1CO HF165FD/009-ZY1STFV 1C - Single Pole Changeover 9VDC 900mW 11.7 30AMP 6.75 0.9 97 x (1�10%)
HF165FD012ZY1STFV HONGFA PCB POWER RELAY 12VDC 30A 1CO HF165FD/012-ZY1STFV 1C - Single Pole Changeover 12VDC 900mW 15.6 30AMP 9 1.2 155 x (1�10%)
HF165FD015ZY1STFV HONGFA PCB POWER RELAY 15VDC 30A 1CO HF165FD/015-ZY1STFV 1C - Single Pole Changeover 15VDC 900mW 19.5 30AMP 11.25 1.5 256 x (1�10%)
HF165FD018ZY1STFV HONGFA PCB POWER RELAY 18VDC 30A 1CO HF165FD/018-ZY1STFV 1C - Single Pole Changeover 18VDC 900mW 23.4 30AMP 13.5 1.8 380 x (1�10%)
HF165FD024ZY1STFV HONGFA PCB POWER RELAY 24VDC 30A 1CO HF165FD/024-ZY1STFV 1C - Single Pole Changeover 24VDC 900mW 31.2 30AMP 18 2.4 660 x (1�10%)
HF165FD048ZY1STFV HONGFA PCB POWER RELAY 48VDC 30A 1CO HF165FD/048-ZY1STFV 1C - Single Pole Changeover 48VDC 900mW 62.4 30AMP 36 4.8 2560 x (1�10%)
HF165FD110ZY1STFV HONGFA PCB POWER RELAY 110VDC 30A 1CO HF165FD/110-ZY1STFV 1C - Single Pole Changeover 48VDC 900mW 143 30AMP 82.5 11 13450 x (1�10%)
