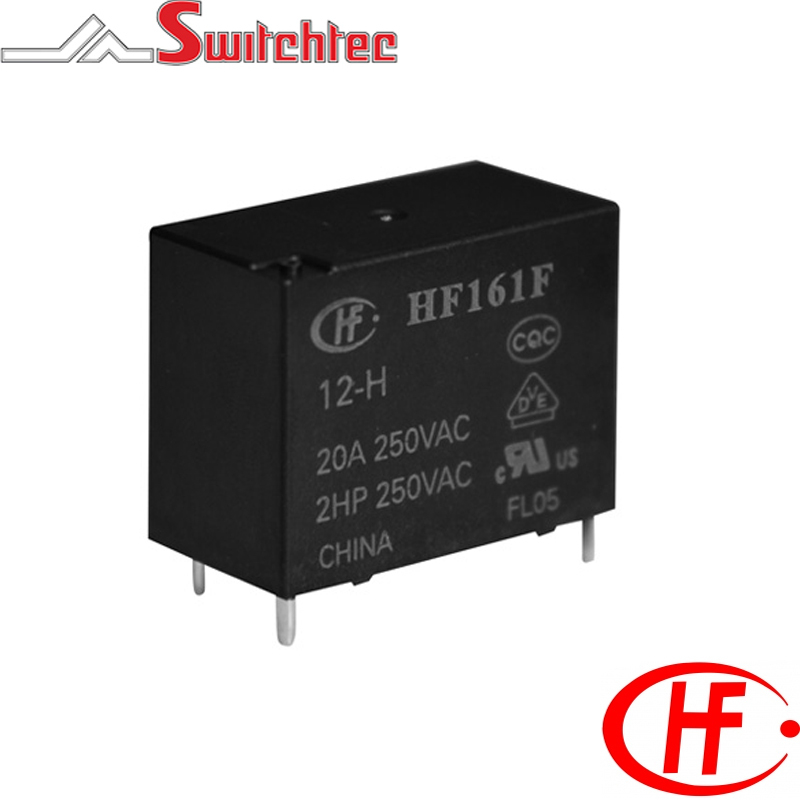

20 Amp 1 Pole Normally Open Relay

20 Amp 1 Pole Normally Open Relay

  • 20 Amp switching capacity
  • 1 Form A contact
  • 900mW Coil
  • 4.5KV dielectric strength (between coil and contacts
  • Heavy load up to 6250VA
  • Ideal for motor switching
  • PCB layouts available
  • RoHS compliant
  • Approvals UL, VDE and CQC



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF161F005HT HONGFA PCB POWER RELAY 5VDC 20A 1NO HF161F005HT 1A - Single Pole Normally Open 5VDC 900mW 6 20 AMP 3.5 0.5 27.8 x (1�10%)
HF161F012HT HONGFA PCB POWER RELAY 12VDC 20A 1NO HF161F/012-HT 1A - Single Pole Normally Open 12VDC 900mW 14.4 20 AMP 8.4 1.2 160 x (1�10%)
HF161F024HT HONGFA PCB POWER RELAY 24VDC 20A 1NO HF161F/024-HT 1A - Single Pole Normally Open 24VDC 900mW 28.8 20 AMP 16.8 2.4 640 x (1�10%)
HF161F048HT HONGFA PCB POWER RELAY 48VDC 20A 1NO HF161F/048-HT 1A - Single Pole Normally Open 48VDC 900mW 57.6 20 AMP 33.6 4.8 2560 x (1�10%)
