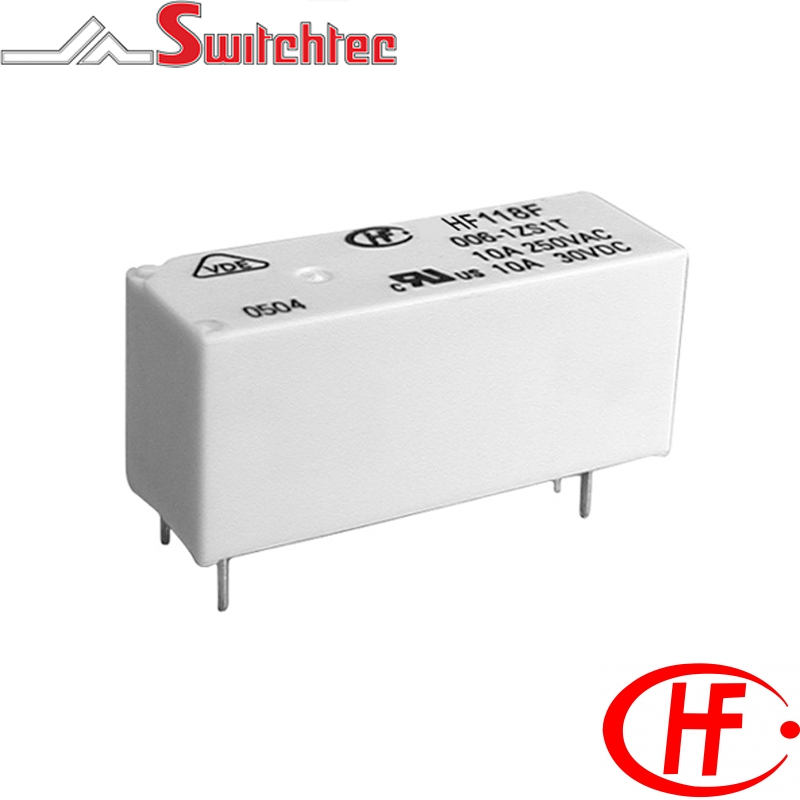

10 Amp 1 Pole Normally Closed Relay

10 Amp 1 Pole Normally Closed Relay

  • 10 amp switching capacity (1 pole version)
  • 5KV dielectric strength (between coil & contacts)
  • Creepage distance >8mm
  • Low height 12.5mm
  • 5mm version available with 1 Form A or 1 Form B Contacts
  • Contact Material AgSnO2 as product standard
  • Available on request AgNi, aGsNo2 + Au plated contacts and AgNi + Au plated contacts
  • RoHS Complaint
  • Fully sealed
  • Compliant with VDE 0435/0631/0700
  • Approvals VDE, UL & CUL
  • Relays compliant with IEC 60335-1 also available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF118F0051DS1T HONGFA PCB POWER RELAY 5VDC 10A 1NC HF118F/005-1DS1T(136) 1B - Single Pole Normally Closed 5VDC 290mW 7.5 10 AMP 3.5 0.5 113 x (1�10%)
HF118F0061DS1T HONGFA PCB POWER RELAY 6VDC 10A 1NC HF118F/006-1DS1T(136) 1B - Single Pole Normally Closed 6VDC 290mW 9 10 AMP 4.2 0.6 164 x (1�10%)
HF118F0091DS1T HONGFA PCB POWER RELAY 9VDC 10A 1NC HF118F/009-1DS1T(136) 1B - Single Pole Normally Closed 9VDC 290mW 13.5 10 AMP 6.3 0.9 360 x (1�10%)
HF118F0121DS1T HONGFA PCB POWER RELAY 12VDC 10A 1NC HF118F/012-1DS1T(136) 1B - Single Pole Normally Closed 12VDC 290mW 18 10 AMP 8.4 1.2 620 x (1�10%)
HF118F0181DS1T HONGFA PCB POWER RELAY 18VDC 10A 1NC HF118F/018-1DS1T(136) 1B - Single Pole Normally Closed 18VDC 290mW 27 10 AMP 12.6 1.8 1295 x (1�10%)
HF118F0241DS1T HONGFA PCB POWER RELAY 24VDC 10A 1NC HF118F/024-1DS1T(136) 1B - Single Pole Normally Closed 24VDC 290mW 36 10 AMP 16.8 2.4 2350 x (1�15%)
HF118F0481DS1T HONGFA PCB POWER RELAY 48VDC 10A 1NC HF118F/048-1DS1T(136) 1B - Single Pole Normally Closed 48VDC 290mW 72 10 AMP 33.6 4.8 8000 x (1�15%)
HF118F0601DS1T HONGFA PCB POWER RELAY 60VDC 10A 1NC HF118F/060-1DS1T(136) 1B - Single Pole Normally Closed 60VDC 290mW 90 10 AMP 42 6 12500 x (1�15%)
