Termination Type 1

Termination Type 1

No detailed description is available for this product.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price

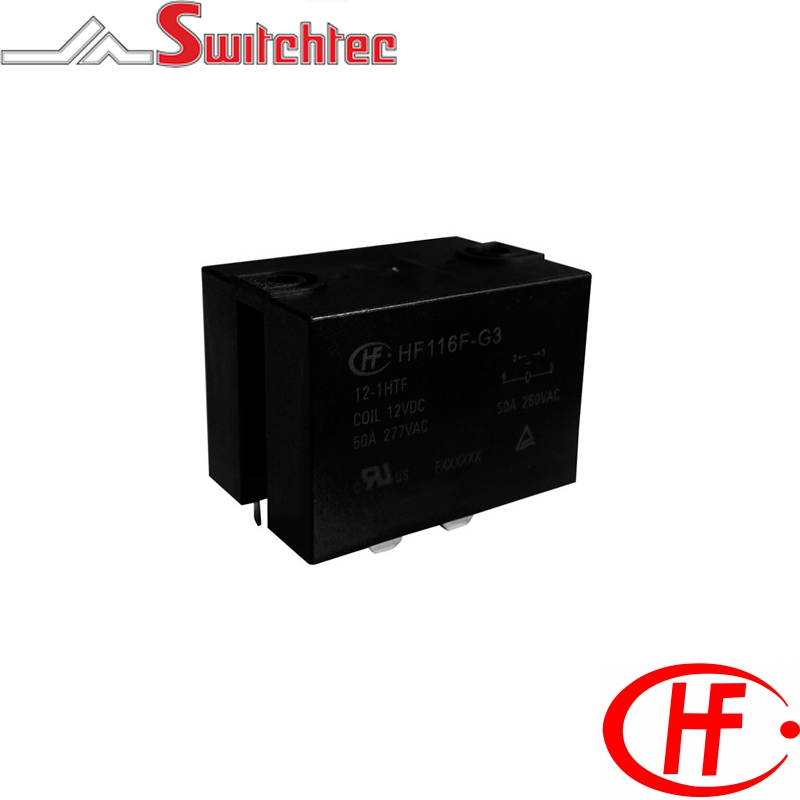

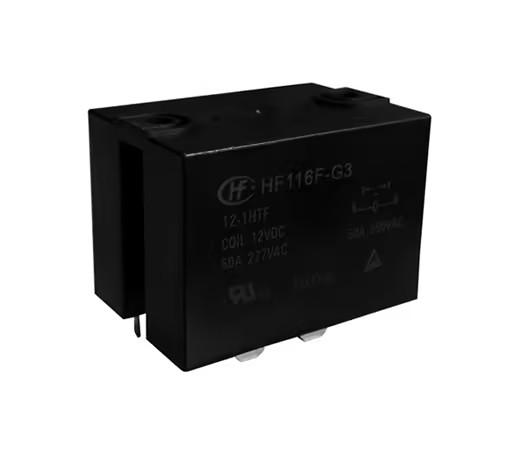

HF116FG10031HTF HONGFA INDUSTRIAL RELAY 3VDC 55A 1NO HF116FG-1/003-1HTF 1A - Single Pole Normally Open 3VDC 3.2W 3.3 55AMP 2.25 0.3 2.8 x (1�10%)
HF116FG10061HTF HONGFA INDUSTRIAL RELAY 6VDC 55A 1NO HF116FG-1/006-1HTF 1A - Single Pole Normally Open 6VDC 3.2W 6.6 55AMP 4.5 0.6 11.3 x (1�10%)
HF116FG10091HTF HONGFA INDUSTRIAL RELAY 9VDC 55A 1NO HF116FG-1/009-1HTF 1A - Single Pole Normally Open 9VDC 3.2W 9.9 55AMP 6.75 0.9 25 x (1�10%)
HF116FG10121HTF HONGFA INDUSTRIAL RELAY 12VDC 55A 1NO HF116FG-1/012-1HTF 1A - Single Pole Normally Open 12VDC 3.2W 13.2 55AMP 9 1.2 45 x (1�10%)
HF116FG10241HTF HONGFA INDUSTRIAL RELAY 24VDC 55A 1NO HF116FG-1/024-1HTF 1A - Single Pole Normally Open 24VDC 3.2W 26.4 55AMP 18 2.4 180 x (1�10%)
HF116FG10481HTF HONGFA INDUSTRIAL RELAY 48VDC 55A 1NO HF116FG-1/048-1HTF 1A - Single Pole Normally Open 48VDC 3.2W 52.8 55AMP 36 4.8 720 x (1�10%)
