VDC

VDC

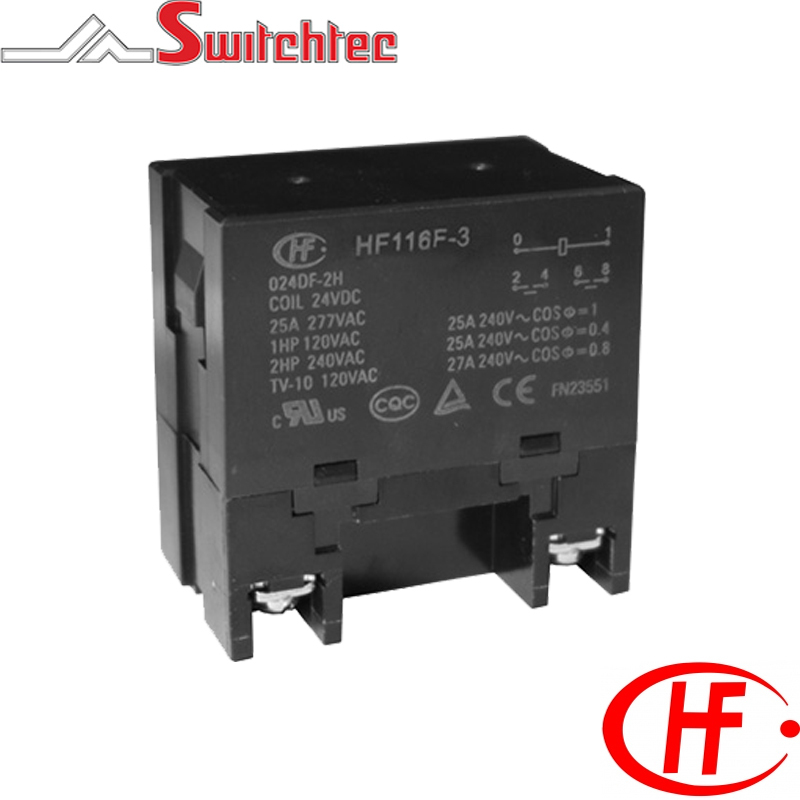

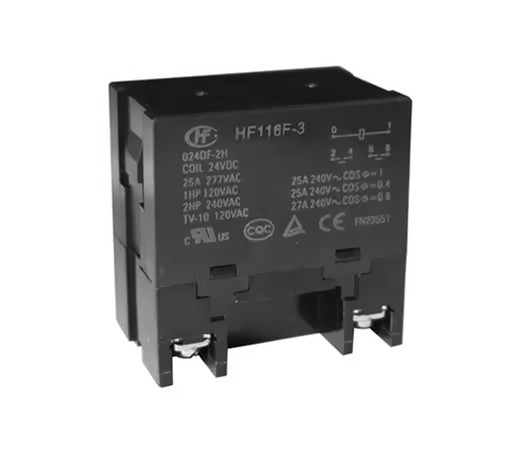

  • 30 Amp switching capacity
  • 1 Form A contact
  • Heavy load up to 7500VA
  • 4KV dielectricstrength (between coil and contacts)
  • 3mm contact gap
  • Contact materials AgSnO2
  • Available on request AgCdO
  • RoHS compliant
  • PCB types available on request
  • Approvals UL, TUV and CUL
  • Class F Insulation available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF116F3003DA1HTFW HONGFA INDUSTRIAL RELAY 3VDC 30A 1NO HF116F-3/003DA-1HTFW 1A - Single Pole Normally Open 3VDC 1900mW 3.3 30 AMP 2.25 0.3 4.7 x (1�10%)
HF116F3006DA1HTFW HONGFA INDUSTRIAL RELAY 6VDC 30A 1NO HF116F-3/006DA-1HTFW 1A - Single Pole Normally Open 6VDC 1900mW 6.6 30 AMP 4.5 0.6 18.8 x (1�10%)
HF116F3012DA1HTFW HONGFA INDUSTRIAL RELAY 12VDC 30A 1NO HF116F-3/012DA-1HTFW 1A - Single Pole Normally Open 12VDC 1900mW 13.2 30 AMP 9 1.2 75 x (1�10%)
HF116F3024DA1HTFW HONGFA INDUSTRIAL RELAY 24VDC 30A 1NO HF116F-3/024DA-1HTFW 1A - Single Pole Normally Open 24VDC 1900mW 26.4 30 AMP 18 2.4 300 x (1�10%)
HF116F3048DA1HTFW HONGFA INDUSTRIAL RELAY 48VDC 30A 1NO HF116F-3/048DA-1HTFW 1A - Single Pole Normally Open 48VDC 1900mW 52.8 30 AMP 36 4.8 1200 x (1�10%)
HF116F3100DA1HTFW HONGFA INDUSTRIAL RELAY 100VDC 30A 1NO HF116F-3/100DA-1HTFW 1A - Single Pole Normally Open 100VDC 1900mW 110 30 AMP 75 10 5200 x (1�10%)
HF116F3110DA1HTFW HONGFA INDUSTRIAL RELAY 110VDC 30A 1NO HF116F-3/110DA-1HTFW 1A - Single Pole Normally Open 110VDC 1900mW 121 30 AMP 82.5 11 6300 x (1�10%)
HF116F3200DA1HTFW HONGFA INDUSTRIAL RELAY 200VDC 30A 1NO HF116F-3/200DA-1HTFW 1A - Single Pole Normally Open 200VDC 1900mW 220 30 AMP 150 20 21000 x (1�10%)
