VAC

VAC

  • 30 Amp switching capacity
  • 1 Form A contact
  • Heavy load up to 7500VA
  • 4KV dielectricstrength (between coil and contacts)
  • 3mm contact gap
  • Contact materials AgSnO2
  • Available on request AgCdO
  • RoHS compliant
  • PCB types available on request
  • Approvals UL, TUV and CUL
  • Class F Insulation available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price

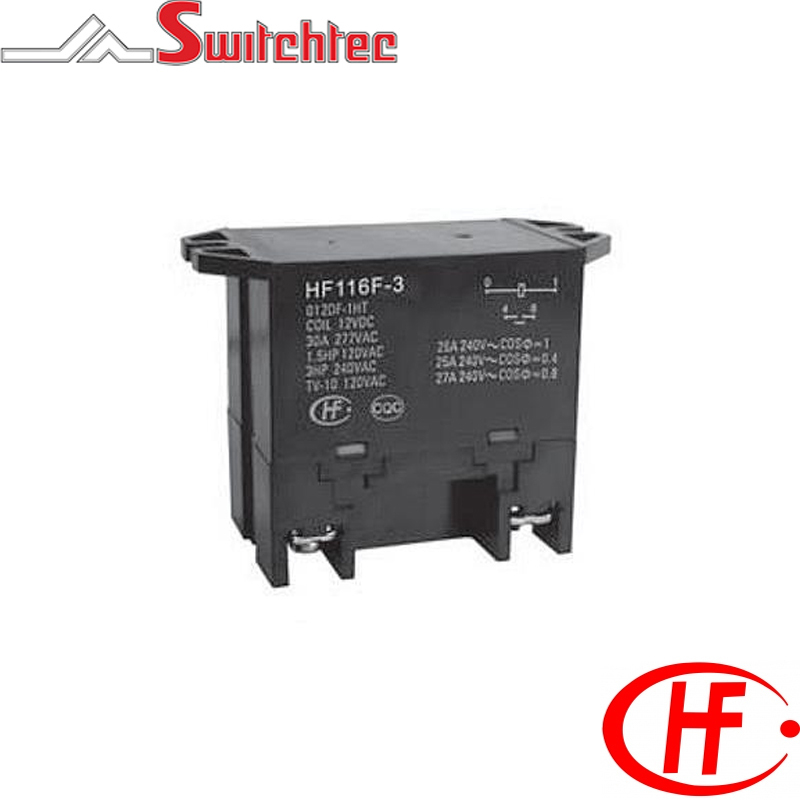

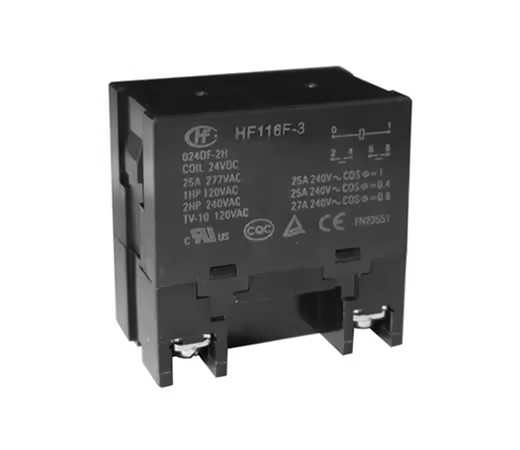

HF116F3006AF1HTFW HONGFA INDUSTRIAL RELAY 6VAC 30A 1NO HF116F-3/006AF-1HTFW 1A - Single Pole Normnally Open 6VAC 2.7VA 6.6 30 AMP 18.8 x (1�10%) 4.8 0.9
HF116F3012AF1HTFW HONGFA INDUSTRIAL RELAY 12VAC 30A 1NO HF116F-3/012AF-1HTFW 1A - Single Pole Normnally Open 12VAC 2.7VA 13.2 30 AMP 75 x (1�10%) 9.6 1.8
HF116F3048AF1HTFW HONGFA INDUSTRIAL RELAY 48VAC 30A 1NO HF116F-3/048AF-1HTFW 1A - Single Pole Normnally Open 48VAC 2.7VA 52.8 30 AMP 1200 x (1�10%) 38.4 7.2
HF116F3120AF1HTFW HONGFA INDUSTRIAL RELAY 120VAC 30A 1NO HF116F-3/120AF-1HTFW 1A - Single Pole Normnally Open 120VAC 2.7VA 132 30 AMP 5200 x (1�10%) 96 18
HF116F3230AF1HTFW HONGFA INDUSTRIAL RELAY 230VAC 30A 1NO HF116F-3/230AF-1HTFW 1A - Single Pole Normnally Open 230VAC 2.7VA 242 30 AMP 20800 x (1�10%) 176 33
HF116F3240AF1HTFW HONGFA INDUSTRIAL RELAY 240VAC 30A 1NO HF116F-3/240AF-1HTFW 1A - Single Pole Normnally Open 220VAC 2.7VA 242 30 AMP 20800 x (1�10%) 176 33
