VDC

VDC

  • 25 Amp switching capacity
  • 2 Form A contact
  • Heavy load up to 7500VA
  • 4KV dielectricstrength (between coil and contacts)
  • 3mm contact gap
  • Contact materials AgSnO2
  • Available on request AgCdO
  • RoHS compliant
  • PCB types available on request
  • Approvals UL, TUV and CUL
  • Class F Insulation available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price

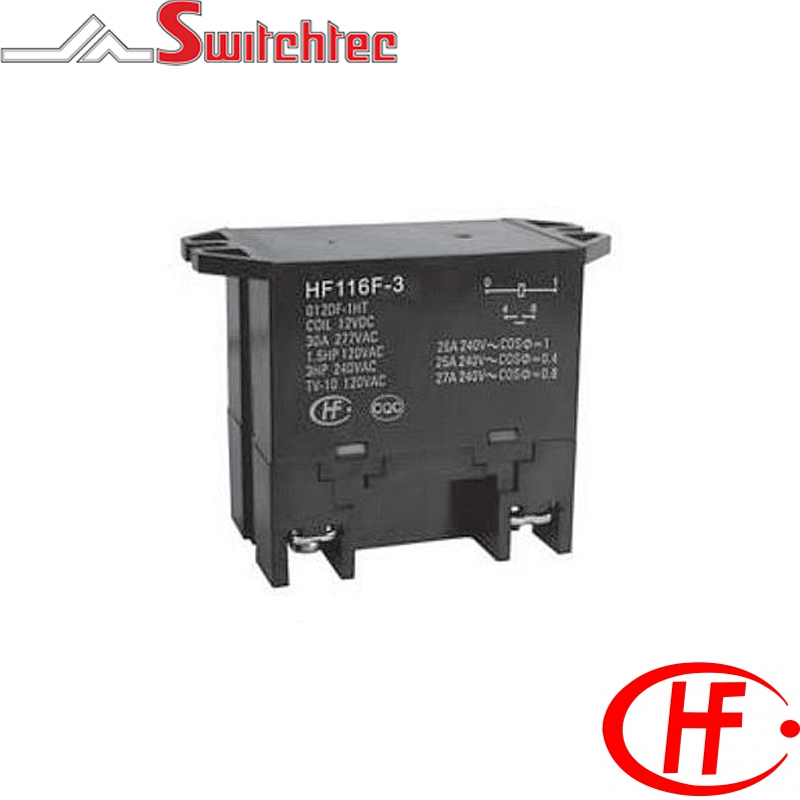

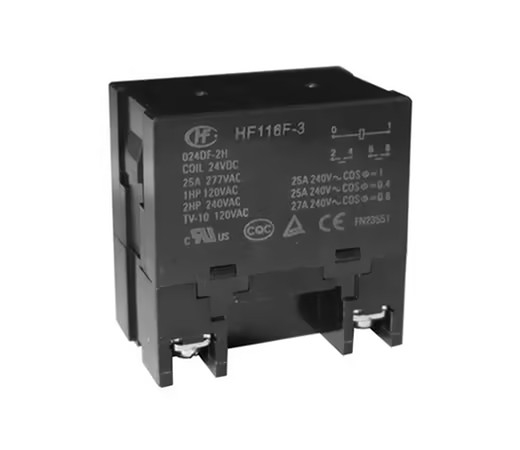

HF116F3003DF2HTFW HONGFA INDUSTRIAL RELAY 3VDC 25A 2NO HF116F-3/003DF-2HTFW 2A - Double Pole Normnally Open 3VDC 1900mW 3.3 25 AMP 2.25 0.3 4.7 x (1�10%)
HF116F3006DF2HTFW HONGFA INDUSTRIAL RELAY 6VDC 25A 2NO HF116F-3/006DF-2HTFW 2A - Double Pole Normnally Open 6VDC 1900mW 6.6 25 AMP 4.5 0.6 18.8 x (1�10%)
HF116F3012DF2HTFW HONGFA INDUSTRIAL RELAY 12VDC 25A 2NO HF116F-3/012DF-2HTFW 2A - Double Pole Normnally Open 12VDC 1900mW 13.2 25 AMP 9 1.2 75 x (1�10%)
HF116F3024DF2HTFW HONGFA INDUSTRIAL RELAY 24VDC 25A 2NO HF116F-3/024DF-2HTFW 2A - Double Pole Normnally Open 24VDC 1900mW 26.4 25 AMP 18 2.4 300 x (1�10%)
HF116F3048DF2HTFW HONGFA INDUSTRIAL RELAY 48VDC 25A 2NO HF116F-3/048DF-2HTFW 2A - Double Pole Normnally Open 48VDC 1900mW 52.8 25 AMP 36 4.8 1200 x (1�10%)
HF116F3100DF2HTFW HONGFA INDUSTRIAL RELAY 100VDC 25A 2NO HF116F-3/100DF-2HTFW 2A - Double Pole Normnally Open 100VDC 1900mW 110 25 AMP 75 10 5200 x (1�10%)
HF116F3110DF2HTFW HONGFA INDUSTRIAL RELAY 110VDC 25A 2NO HF116F-3/110DF-2HTFW 2A - Double Pole Normnally Open 110VDC 1900mW 121 25 AMP 82.5 11 6300 x (1�10%)
HF116F3200DF2HTFW HONGFA INDUSTRIAL RELAY 200VDC 25A 2NO HF116F-3/200DF-2HTFW 2A - Double Pole Normnally Open 200VDC 1900mW 220 25 AMP 150 20 21000 x (1�10%)
