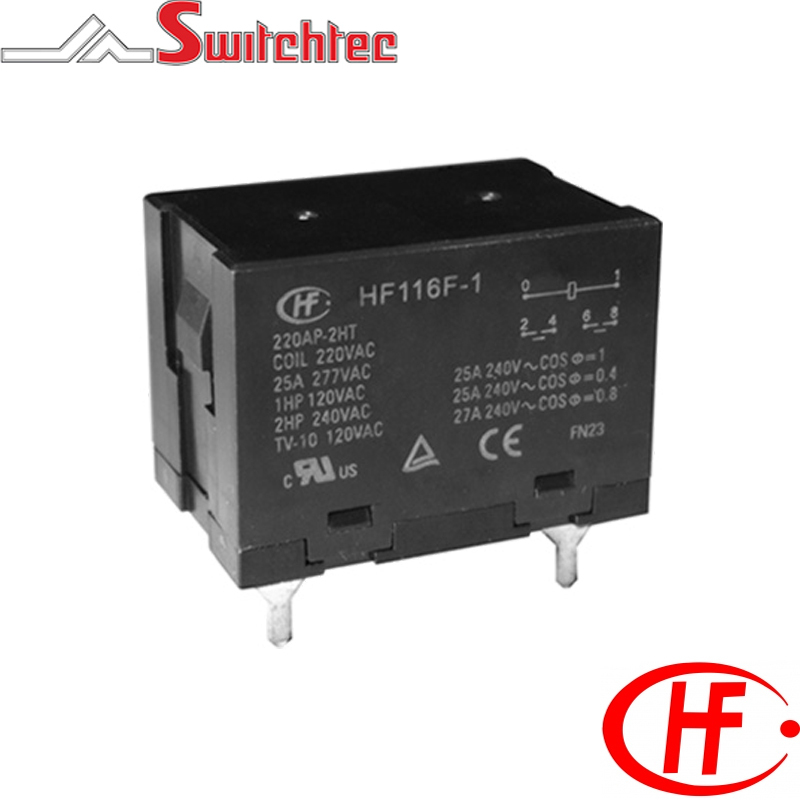

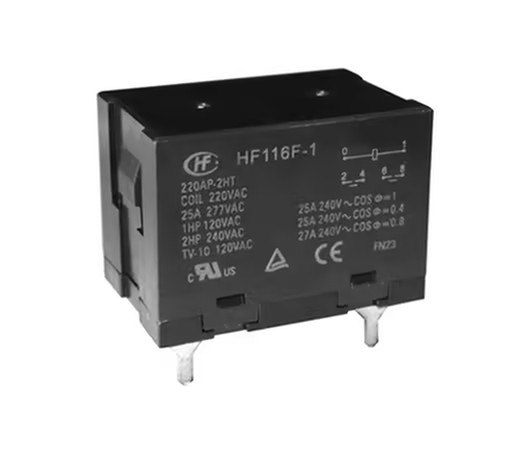

  • 25 Amp switching capacity
  • 2 Form A contact
  • Heavy load up to 7200VA
  • 4KV dielectricstrength (between coil and contacts)
  • 3mm contact gap
  • Contact materials AgSnO2
  • Available on request AgCdO
  • RoHS compliant
  • PCB and Flangless types also available on request
  • Approvals UL, TUV and CUL
  • Class F Insulation



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Max VDC Drop Out Max VAC Pick Up Max VAC Coil ? � 10% Drop Out Max VDC Pick Up Max VDC Maximum Rated Switching Current Max VAC Coil Power Coil Voltage Contact Arrangement Price
HF116F1003DP2HTFW HONGFA INDUSTRIAL RELAY 3VDC 25A 2NO HF116F-1/003DP-2HTFW 3.3 0.3 2.25 4.7 x (1�10%) 0.3 2.25 25 AMP 3.3 1900mW 3VDC 2A - Double Pole Normally Open
HF116F1006DP2HTFW HONGFA INDUSTRIAL RELAY 6VDC 25A 2NO HF116F-1/006DP-2HTFW 6.6 0.6 4.5 18.8 x (1�10%) 0.6 4.5 25 AMP 6.6 1900mW 6VDC 2A - Double Pole Normally Open
HF116F1012DP2HTFW HONGFA INDUSTRIAL RELAY 12VDC 25A 2NO HF116F-1/012DP-2HTFW 13.2 1.2 9 75 x (1�10%) 1.2 9 25 AMP 13.2 1900mW 12VDC 2A - Double Pole Normally Open
HF116F1024DP2HTFW HONGFA INDUSTRIAL RELAY 24VDC 25A 2NO HF116F-1/024DP-2HTFW 26.4 2.4 18 300 x (1�10%) 2.4 18 25 AMP 26.4 1900mW 24VDC 2A - Double Pole Normally Open
HF116F1048DP2HTFW HONGFA INDUSTRIAL RELAY 48VDC 25A 2NO HF116F-1/048DP-2HTFW 52.8 4.8 36 1200 x (1�10%) 4.8 36 25 AMP 52.8 1900mW 48VDC 2A - Double Pole Normally Open
HF116F1110DP2HTFW HONGFA INDUSTRIAL RELAY 110VDC 25A 2NO HF116F-1/110DP-2HTFW 121 11 82.5 6300 x (1�10%) 11 82.5 25 AMP 121 1900mW 110VDC 2A - Double Pole Normally Open
HF116F1200DP2HTFW HONGFA INDUSTRIAL RELAY 200VDC 25A 2NO HF116F-1/200DP-2HTFW 220 20 150 21000 x (1�10%) 20 150 25 AMP 220 1900mW 200VDC 2A - Double Pole Normally Open
