VAC

VAC

  • 25 Amp switching capacity
  • 2 Form A contact
  • Heavy load up to 7200VA
  • 4KV dielectricstrength (between coil and contacts)
  • 3mm contact gap
  • Contact materials AgSnO2
  • Available on request AgCdO
  • RoHS compliant
  • PCB and Flangless types also available on request
  • Approvals UL, TUV and CUL
  • Class F Insulation



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price

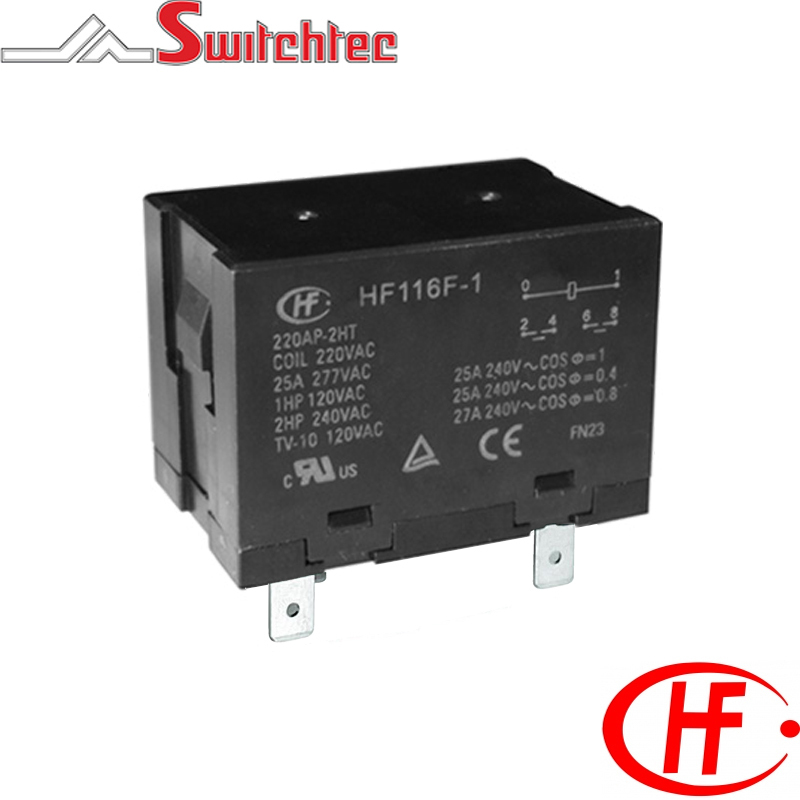

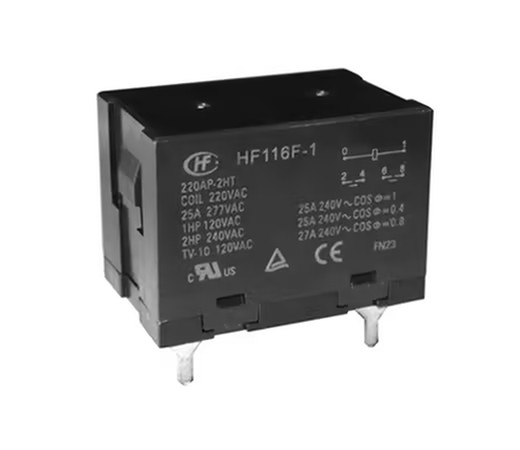

HF116F1006AA2HTFW HONGFA INDUSTRIAL RELAY 6VAC 25A 2NO HF116F-1/006AA-2HTFW 2A - Double Pole Normally Open 6VAC 2.7VA 6.6 25 AMP 18.8 x (1�10%) 4.8 0.9
HF116F1012AA2HTFW HONGFA INDUSTRIAL RELAY 12VAC 25A 2NO HF116F-1/012AA-2HTFW 2A - Double Pole Normally Open 12VAC 2.7VA 13.2 25 AMP 75 x (1�10%) 9.6 1.8
HF116F1024AA2HTFW HONGFA INDUSTRIAL RELAY 24VAC 25A 2NO HF116F-1/024AA-2HTFW 2A - Double Pole Normally Open 24VAC 2.7VA 26.4 25 AMP 300 x (1�10%) 19.2 3.6
HF116F1048AA2HTFW HONGFA INDUSTRIAL RELAY 48VAC 25A 2NO HF116F-1/048AA-2HTFW 2A - Double Pole Normally Open 48VAC 2.7VA 52.8 25 AMP 1200 x (1�10%) 38.4 7.2
HF116F1120AA2HTFW HONGFA INDUSTRIAL RELAY 120VAC 25A 2NO HF116F-1/006AA-2HTFW 2A - Double Pole Normally Open 120VAC 2.7VA 132 25 AMP 5200 x (1�10%) 96 18
HF116F1220AA2HTFW HONGFA INDUSTRIAL RELAY 220VAC 25A 2NO HF116F-1/220AA-2HTFW 2A - Double Pole Normally Open 220VAC 2.7VA 242 25 AMP 20800 x (1�10%) 176 33
