VAC

VAC

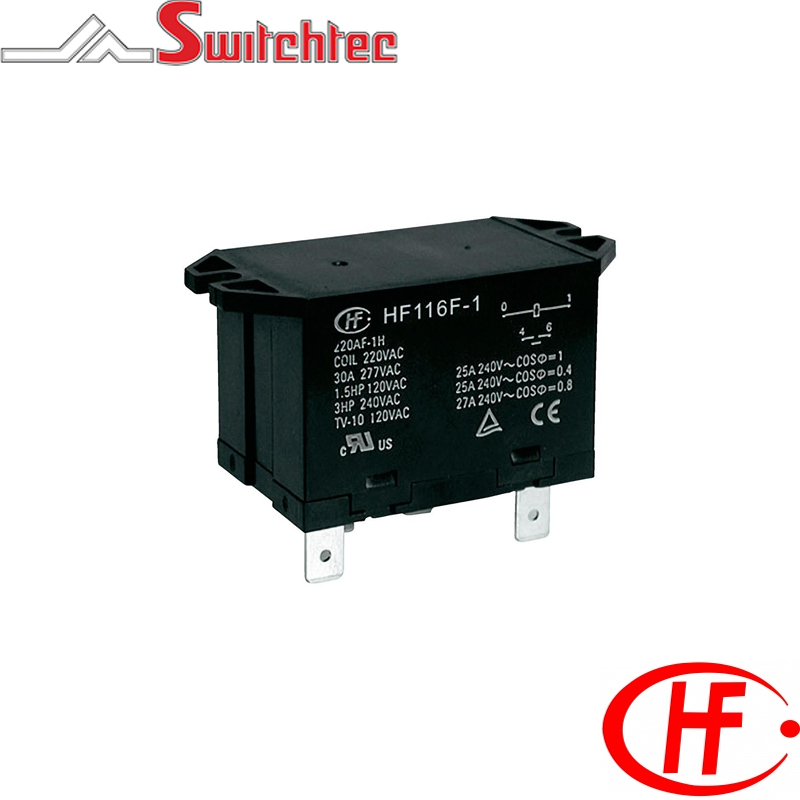

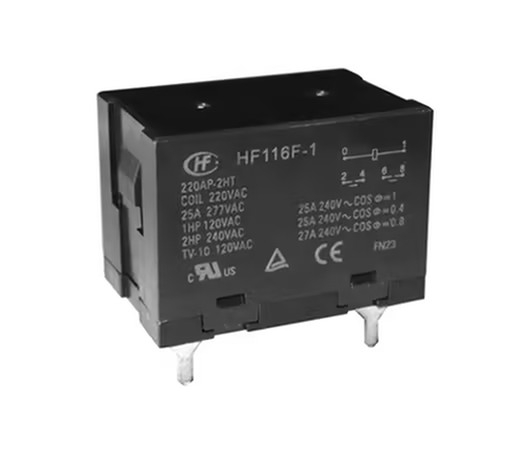

  • 25 Amp switching capacity
  • 2 Form A contact
  • Heavy load up to 7200VA
  • 4KV dielectricstrength (between coil and contacts)
  • 3mm contact gap
  • Contact materials AgSnO2
  • Available on request AgCdO
  • RoHS compliant
  • PCB and Flangless types also available on request
  • Approvals UL, TUV and CUL
  • Class F Insulation



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Pick Up Max VAC Price
HF116F1006AF2HTFW HONGFA INDUSTRIAL RELAY 6VAC 25A 2NO HF116F-1/006AF-2HTFW 2A - Double Pole Normally Open 6VAC 2.7VA 6.6 25 AMP 4.8
HF116F1012AF2HTFW HONGFA INDUSTRIAL RELAY 12VAC 25A 2NO HF116F-1/012AF-2HTFW 2A - Double Pole Normally Open 12VAC 2.7VA 13.2 25 AMP 9.6
HF116F1024AF2HTFW HONGFA INDUSTRIAL RELAY 24VAC 25A 2NO HF116F-1/024AF-2HTFW 2A - Double Pole Normally Open 24VAC 2.7VA 26.4 25 AMP 19.2
HF116F1048AF2HTFW HONGFA INDUSTRIAL RELAY 48VAC 25A 2NO HF116F-1/048AF-2HTFW 2A - Double Pole Normally Open 48VAC 2.7VA 52.8 25 AMP 38.4
HF116F1120AF2HTFW HONGFA INDUSTRIAL RELAY 120AC 25A 2NO HF116F-1/120AF-2HTFW 2A - Double Pole Normally Open 120VAC 2.7VA 132 25 AMP 96
HF116F1220AF2HTFW HONGFA INDUSTRIAL RELAY 220AC 25A 2NO HF116F-1/220AF-2HTFW 2A - Double Pole Normally Open 220VAC 2.7VA 242 25 AMP 176
HF116F1230AF2HTFW HONGFA INDUSTRIAL RELAY 230AC 25A 2NO HF116F-1/230AF-2HTFW 2A - Double Pole Normally Open 230VAC 2.7VA 253 25A 184
