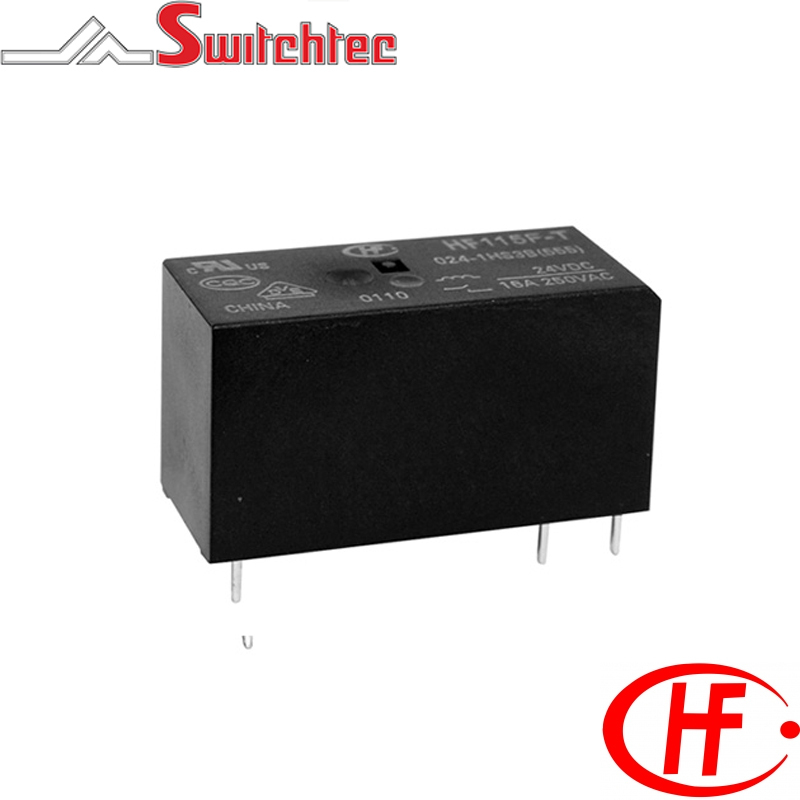

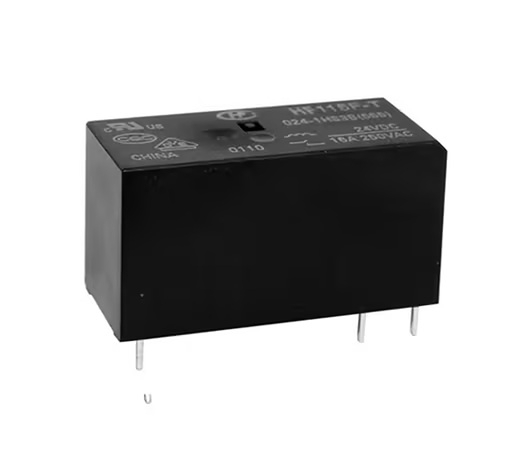

HF115FTH 16 Amp Normally Open - 1 Form A Sensitive

HF115FTH 16 Amp Normally Open - 1 Form A Sensitive

  • 16 amp switching capacity
  • High temperature device 105 C
  • 400mW rated standard coil plus 250mW sensitive version
  • 5KVA dielectric strength (between coil & contacts)
  • Creepage distance 10mm
  • Contact Material AgSnO2 as standard
  • Available on request AgCdO and AgNi contacts
  • RoHS Complaint
  • Compliant with VDE 0435/0631/0700
  • Approvals VDE, UL & CUL



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115FTH0051HS3A HONGFA PCB POWER RELAY 5VDC 16A 1NO HF115F-TH/005-1HS3A 1A - Single Pole Normally Open 5VDC 400mW 6.5 16 AMP 3.75 0.5 100 x (1�10%)
HF115FTH0061HS3A HONGFA PCB POWER RELAY 6VDC 16A 1NO HF115F-TH/006-1HS3A 1A - Single Pole Normally Open 6VDC 400mW 7.8 16 AMP 4.5 0.6 144 x (1�10%)
HF115FTH0091HS3A HONGFA PCB POWER RELAY 9VDC 16A 1NO HF115F-TH/009-1HS3A 1A - Single Pole Normally Open 9VDC 400mW 11.7 16 AMP 6.75 0.9 324 x (1�10%)
HF115FTH0121HS3A HONGFA PCB POWER RELAY 12VDC 16A 1NO HF115F-TH/012-1HS3A 1A - Single Pole Normally Open 12VDC 400mW 15.6 16 AMP 9 1.2 576 x (1�10%)
HF115FTH0181HS3A HONGFA PCB POWER RELAY 18VDC 16A 1NO HF115F-TH/018-1HS3A 1A - Single Pole Normally Open 18VDC 400mW 23.4 16 AMP 13.5 1.8 1296 x (1�10%)
HF115FTH0241HS3A HONGFA PCB POWER RELAY 24VDC 16A 1NO HF115F-TH/024-1HS3A 1A - Single Pole Normally Open 24VDC 400mW 31.2 16 AMP 18 2.4 2304 x (1�10%)
HF115FTH0481HS3A HONGFA PCB POWER RELAY 48VDC 16A 1NO HF115F-TH/048-1HS3A 1A - Single Pole Normally Open 48VDC 400mW 62.4 16 AMP 36 4.8 9216 x (1�15%)
HF115FTH0601HS3A HONGFA PCB POWER RELAY 60VDC 16A 1NO HF115F-TH/060-1HS3A 1A - Single Pole Normally Open 60VDC 400mW 78 16 AMP 45 6 12857 x (1�15%)
