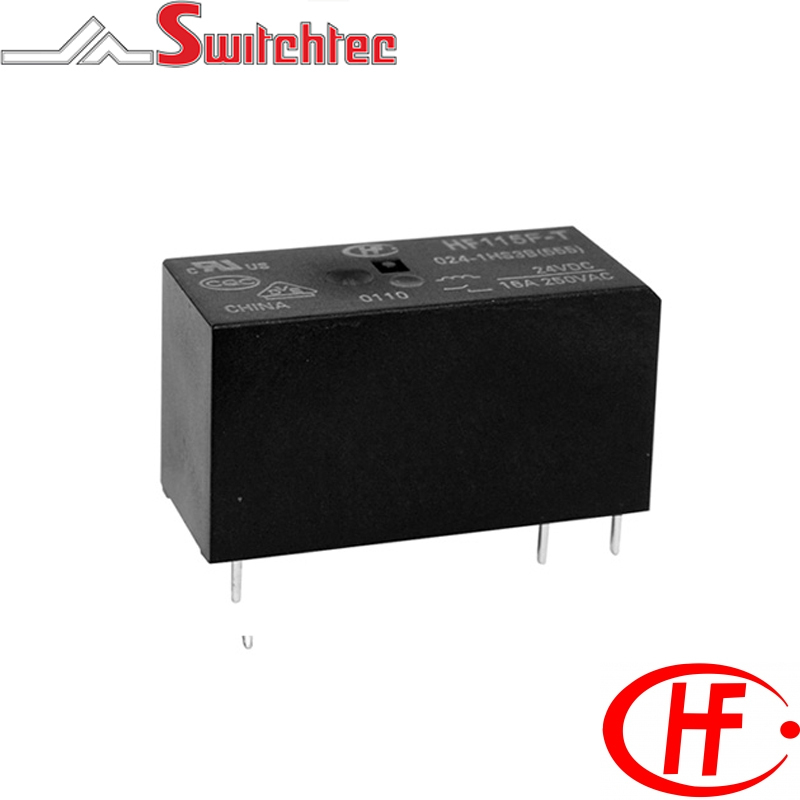

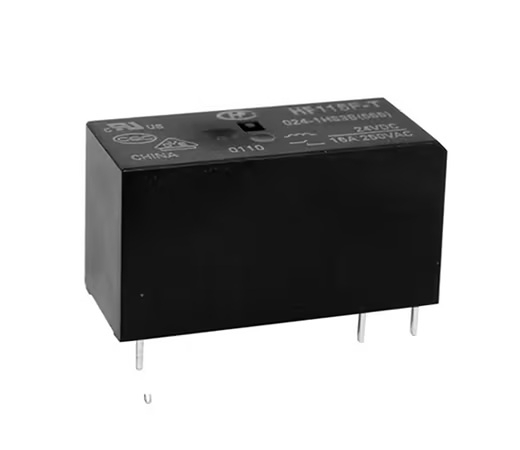

HF115FT 16 Amp Changeover - 1 Form C Standard

HF115FT 16 Amp Changeover - 1 Form C Standard

  • 16 amp switching capacity
  • High temperature device 105 C
  • 400mW rated standard coil plus 250mW sensitive version
  • 5KVA dielectric strength (between coil & contacts)
  • Creepage distance 10mm
  • Contact Material AgSnO2 as standard
  • Available on request AgCdO and AgNi contacts
  • RoHS Complaint
  • Compliant with VDE 0435/0631/0700
  • Approvals VDE, UL & CUL



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115FT0051ZS3A HONGFA PCB POWER RELAY 5VDC 16A 1CO HF115F-T/005-1ZS3A 1C - Single Pole Changeover 5VDC 250mW 6.5 16 AMP 3.5 0.5 62 x (1�10%)
HF115FT0061ZS3A HONGFA PCB POWER RELAY 6VDC 16A 1CO HF115F-T/006-1ZS3A 1C - Single Pole Changeover 6VDC 250mW 7.8 16 AMP 4.2 0.6 90 x (1�10%)
HF115FT0091ZS3A HONGFA PCB POWER RELAY 9VDC 16A 1CO HF115F-T/009-1ZS3A 1C - Single Pole Changeover 9VDC 250mW 11.7 16 AMP 6.3 0.9 202 x (1�10%)
HF115FT0121ZS3A HONGFA PCB POWER RELAY 12VDC 16A 1CO HF115F-T/012-1ZS3A 1C - Single Pole Changeover 12VDC 250mW 15.6 16 AMP 8.4 12 360 x (1�10%)
HF115FT0181ZS3A HONGFA PCB POWER RELAY 18VDC 16A 1CO HF115F-T/018-1ZS3A 1C - Single Pole Changeover 18VDC 250mW 23.4 16 AMP 12.6 1.8 810 x (1�10%)
HF115FT0241ZS3A HONGFA PCB POWER RELAY 24VDC 16A 1CO HF115F-T/024-1ZS3A 1C - Single Pole Changeover 24VDC 250mW 31.2 16 AMP 16.8 2.4 1440 x (1�10%)
HF115FT0481ZS3A HONGFA PCB POWER RELAY 48VDC 16A 1CO HF115F-T/048-1ZS3A 1C - Single Pole Changeover 48VDC 250mW 62.4 16 AMP 33.6 4.8 5760 x (1�15%)
HF115FT0601ZS3A HONGFA PCB POWER RELAY 60VDC 16A 1CO HF115F-T/060-1ZS3A 1C - Single Pole Changeover 60VDC 250mW 78 16 AMP 42 6 7500 x (1�15%)
