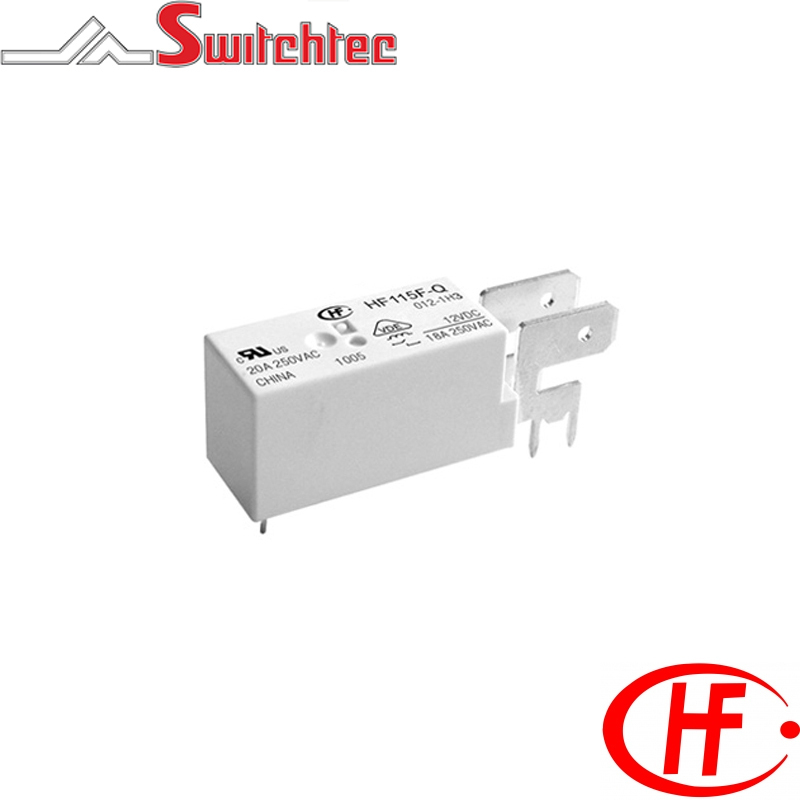

Horizontal Quick Connect Terminals

Horizontal Quick Connect Terminals

  • 20 amp switching capacity
  • High ambient temperature up to 125 C
  • Low height: 15.7mm
  • 1 Form A contact
  • 5KV dielectric strength (between coil & contacts)
  • Creepage distance 8mm
  • Contact Material AgSnO2
  • Class F Insulation
  • UL94, V-0 flammability class
  • Approvals UL, CUL & VDE
  • Meets VDE 0435/0110/0631/0700
  • RoHS Compliant
  • Relays compliant with IEC 60335 -1 also available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115FQ0051H3T HONGFA PCB POWER RELAY 5VDC 20A 1NO HF115F-Q/005-1H3T 1A - Single Pole Normally Open 5VDC 400mW 7.5 20 AMP 3.5 0.5 62 x (1�10%)
HF115FQ0061H3T HONGFA PCB POWER RELAY 6VDC 20A 1NO HF115F-Q/006-1H3T 1A - Single Pole Normally Open 6VDC 400mW 9 20 AMP 4.2 0.6 90 x (1�10%)
HF115FQ0091H3T HONGFA PCB POWER RELAY 9VDC 20A 1NO HF115F-Q/009-1H3T 1A - Single Pole Normally Open 9VDC 400mW 13.5 20 AMP 6.3 0.9 202 x (1�10%)
HF115FQ0121H3T HONGFA PCB POWER RELAY 12VDC 20A 1NO HF115F-Q/012-1H3T 1A - Single Pole Normally Open 12VDC 400mW 18 20 AMP 8.4 1.2 360 x (1�10%)
HF115FQ0181H3T HONGFA PCB POWER RELAY 18VDC 20A 1NO HF115F-Q/018-1H3T 1A - Single Pole Normally Open 18VDC 400mW 27 20 AMP 12.6 1.8 810 x (1�10%)
HF115FQ0241H3T HONGFA PCB POWER RELAY 24VDC 20A 1NO HF115F-Q/024-1H3T 1A - Single Pole Normally Open 24VDC 400mW 36 20 AMP 16.8 2.4 1440 x (1�10%)
HF115FQ0481H3T HONGFA PCB POWER RELAY 48VDC 20A 1NO HF115F-Q/048-1H3T 1A - Single Pole Normally Open 48VDC 400mW 72 20 AMP 33.6 4.8 5760 x (1�15%)
HF115FQ0601H3T HONGFA PCB POWER RELAY 60VDC 20A 1NO HF115F-Q/060-1H3T 1A - Single Pole Normally Open 60VDC 400mW 90 20 AMP 42 6 7500 x (1�15%)
HF115FQ1101H3T HONGFA PCB POWER RELAY 110VDC 20A 1NO HF115F-Q/110-1H3T 1A - Single Pole Normally Open 110VDC 400mW 165 20 AMP 77 11 25200 x (1�15%)
