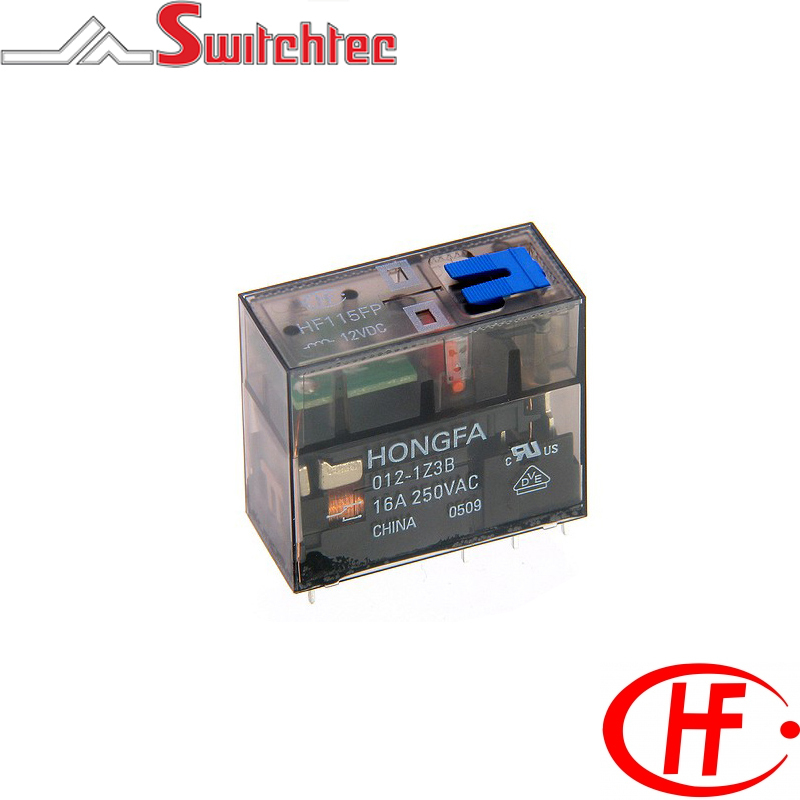

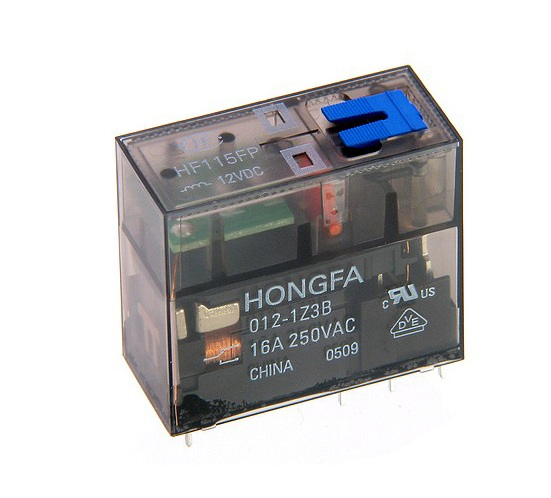

16 Amp 1 Pole Changeover - 1 Form C

16 Amp 1 Pole Changeover - 1 Form C

  • 16 Amp switching capacity
  • Manual Test Button, Flag & LED indication
  • 5KV dielectric strength (between coil & contacts)
  • DC coil
  • Contact Material AgNi
  • RoHS Compliant
  • Compliant with VDE 0435/0631/0700
  • Approvals UL, CUR & VDE
  • PC & DIN Rail Plug In sockets available



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Maximum Rated Switching Current Coil ? � 10% Price
HF115FP0121Z3B HONGFA PCB POWER RELAY 12VDC 16A 1CO HF115FP/012-1Z3B 1C - Single Pole Changeover 12VDC 400mW 16 AMP 1440 x (1�10%)
HF115FP0241Z3B HONGFA PCB POWER RELAY 24VDC 16A 1CO HF115FP/024-1Z3B 1C - Single Pole Changeover 24VDC 400mW 16 AMP 5760 x (1�15%)
HF115FP0481Z3B HONGFA PCB POWER RELAY 48VDC 16A 1CO HF115FP/048-1Z3B 1C - Single Pole Changeover 048VDC 400mW 16 AMP 25200 x (1�15%)
HF115FP1101Z3B HONGFA PCB POWER RELAY 110VDC 16A 1CO HF115FP/110-1Z3B 1C - Single Pole Changeover 110VDC 400mW 16 AMP 25200 x (1�15%)
HF115FPA0241Z3B HONGFA PCB POWER RELAY 24VAC 16A 1CO HF115FP/A024-1Z3B 1C - Single Pole Changeover 24VAC 0.75VA 16 AMP 350 x (1�10%)
HF115FPA1151Z3B HONGFA PCB POWER RELAY 110VAC 16A 1CO HF115FP/A115-1Z3B 1C - Single Pole Changeover 110VAC 0.75VA 16 AMP 8100 x (1�10%)
HF115FPA2301Z3B HONGFA PCB POWER RELAY 230VAC 16A 1CO HF115FP/A230-1Z3B 1C - Single Pole Changeover 230VAC 0.75VA 16 AMP 32500 x (1�15%)
