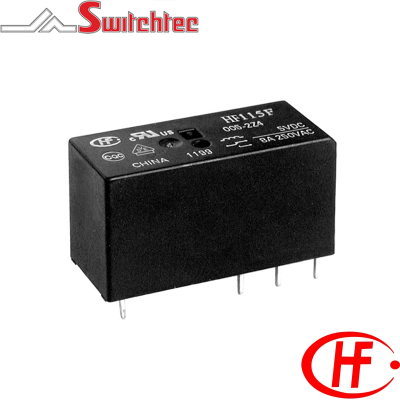

16 Amp Normally Open 5mm Pinning - 1 Form A

16 Amp Normally Open 5mm Pinning - 1 Form A

  • 16 amp switching capacity
  • 400mW rated coil
  • 5KV dielectric strength (between coil & contacts)
  • 1 Form A contact
  • Creepage distance 10mm
  • DC coil version
  • Contact Material AgSnO2 as standard
  • Available on request AgCdO, AgNi, AgCdO + Au plated and AgNi + Au plated contacts
  • RoHS Complaint
  • Fully sealed as standard
  • Compliant with VDE 0435/0631/0700
  • Approvals FIMKO,VDE, UL & CUL
  • P.C. & DIN rail sockets available
  • Insulation Class F



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115F0051HS3AF HONGFA PCB POWER RELAY 5VDC 16A 1NO HF115F/005-1HS3AF 1A - Single Pole Normally Open 5VDC 400mW 7.5 16 AMP 3.5 0.5 62 x (1�10%)
HF115F0061HS3AF HONGFA PCB POWER RELAY 6VDC 16A 1NO HF115F/006-1HS3AF 1A - Single Pole Normally Open 6VDC 400mW 9 16 AMP 4.2 0.6 90 x (1�10%)
HF115F0091HS3AF HONGFA PCB POWER RELAY 9VDC 16A 1NO HF115F/009-1HS3AF 1A - Single Pole Normally Open 9VDC 400mW 13.5 16 AMP 6.3 0.9 202 x (1�10%)
HF115F0121HS3AF HONGFA PCB POWER RELAY 12VDC 16A 1NO HF115F/012-1HS3AF 1A - Single Pole Normally Open 12VDC 400mW 18 16 AMP 8.4 1.2 360 x (1�10%)
HF115F0181HS3AF HONGFA PCB POWER RELAY 18VDC 16A 1NO HF115F/018-1HS3AF 1A - Single Pole Normally Open 18VDC 400mW 27 16 AMP 12.6 1.8 810 x (1�10%)
HF115F0241HS3AF HONGFA PCB POWER RELAY 24VDC 16A 1NO HF115F/024-1HS3AF 1A - Single Pole Normally Open 24VDC 400mW 36 16 AMP 16.8 2.4 1440 x (1�15%)
HF115F0481HS3AF HONGFA PCB POWER RELAY 48VDC 16A 1NO HF115F/048-1HS3AF 1A - Single Pole Normally Open 48VDC 400mW 72 16 AMP 33.6 4.8 5760 x (1�15%)
HF115F0601HS3AF HONGFA PCB POWER RELAY 60VDC 16A 1NO HF115F/060-1HS3AF 1A - Single Pole Normally Open 60VDC 400mW 90 16 AMP 42 6 7500 x (1�15%)
HF115F1101HS3AF HONGFA PCB POWER RELAY 110VDC 16A 1NO HF115F/110-1HS3AF 1A - Single Pole Normally Open 110VDC 400mW 165 16 AMP 77 11 25200 x (1�10%)
