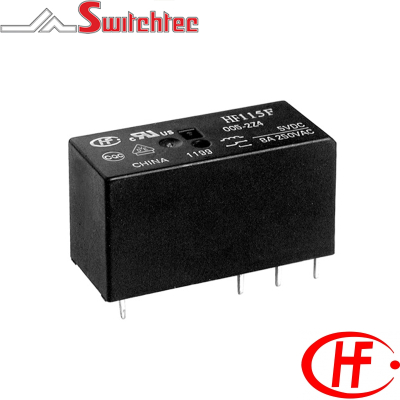

12 Amp Normally Closed 3.5mm Pinning - 1 Form B

12 Amp Normally Closed 3.5mm Pinning - 1 Form B

  • 12 Amp switching capacity
  • 400mW Coil
  • 5KVA dielectric strength (between coil and contacts)
  • 1 Form B contact
  • Creepage distance 10mm
  • DC Coil Version
  • Contact materials AgSnO2 as standard
  • Available on request AgCdO, AgNi, AgCdO+Au plated, AgNi + Au plated contacts
  • RoHS compliant
  • Fully sealed
  • Compliant with VDE 0435/0631/0700
  • Approvals FIMKO, VDE UL & CUL
  • P.C. & DIN rail sockets available
  • Insulation Class F



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115F0051DS1AF HONGFA PCB POWER RELAY 5DC 12A 1NC HF115F/005-1DS1AF 1B - Single Pole Normally Closed 5VDC 400mW 7.5 12 AMP 3.5 0.5 62 x (1�10%)
HF115F0061DS1AF HONGFA PCB POWER RELAY 6DC 12A 1NC HF115F/006-1DS1AF 1B - Single Pole Normally Closed 6VDC 400mW 9 12 AMP 4.2 0.6 90 x (1�10%)
HF115F0091DS1AF HONGFA PCB POWER RELAY 9DC 12A 1NC HF115F/009-1DS1AF 1B - Single Pole Normally Closed 9VDC 400mW 13.5 12 AMP 6.3 0.9 202 x (1�10%)
HF115F0121DS1AF HONGFA PCB POWER RELAY 12DC 12A 1NC HF115F/012-1DS1AF 1B - Single Pole Normally Closed 12VDC 400mW 18 12 AMP 8.4 1.2 360 x (1�10%)
HF115F0181DS1AF HONGFA PCB POWER RELAY 18DC 12A 1NC HF115F/018-1DS1AF 1B - Single Pole Normally Closed 18VDC 400mW 27 12 AMP 12.6 1.8 810 x (1�10%)
HF115F0241DS1AF HONGFA PCB POWER RELAY 24DC 12A 1NC HF115F/024-1DS1AF 1B - Single Pole Normally Closed 24VDC 400mW 36 12 AMP 16.8 2.4 1440 x (1�15%)
HF115F0481DS1AF HONGFA PCB POWER RELAY 48DC 12A 1NC HF115F/048-1DS1AF 1B - Single Pole Normally Closed 48VDC 400mW 72 12 AMP 33.6 4.8 5760 x (1�15%)
HF115F0601DS1AF HONGFA PCB POWER RELAY 60DC 12A 1NC HF115F/060-1DS1AF 1B - Single Pole Normally Closed 60VDC 400mW 90 12 AMP 42 6 7500 x (1�15%)
HF115F1101DS1AF HONGFA PCB POWER RELAY 110DC 12A 1NC HF115F/110-1DS1AF 1B - Single Pole Normally Closed 110VDC 400mW 165 12 AMP 77 11 25200 x (1�10%)
