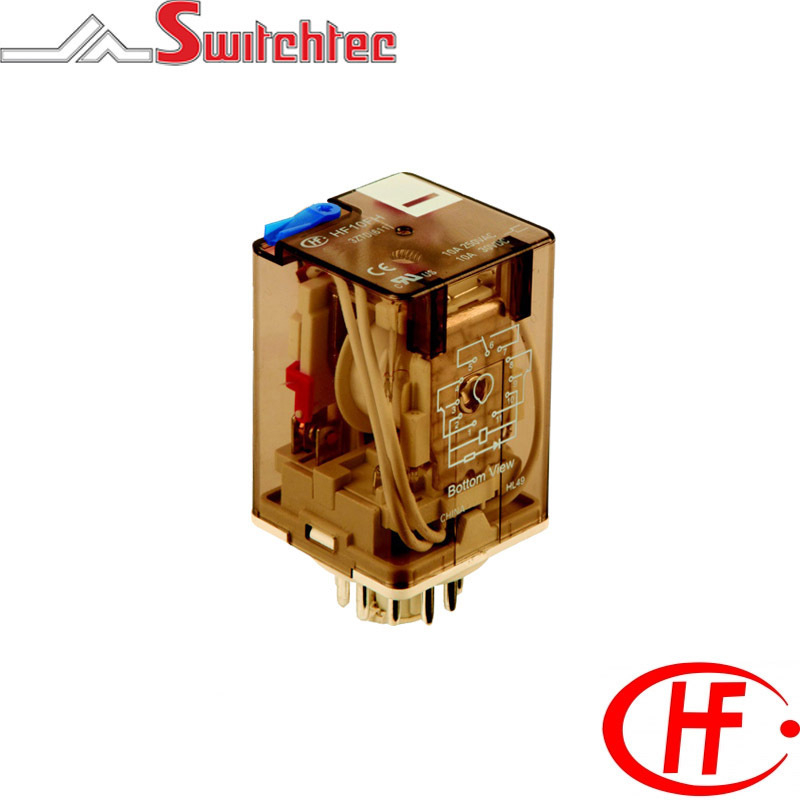

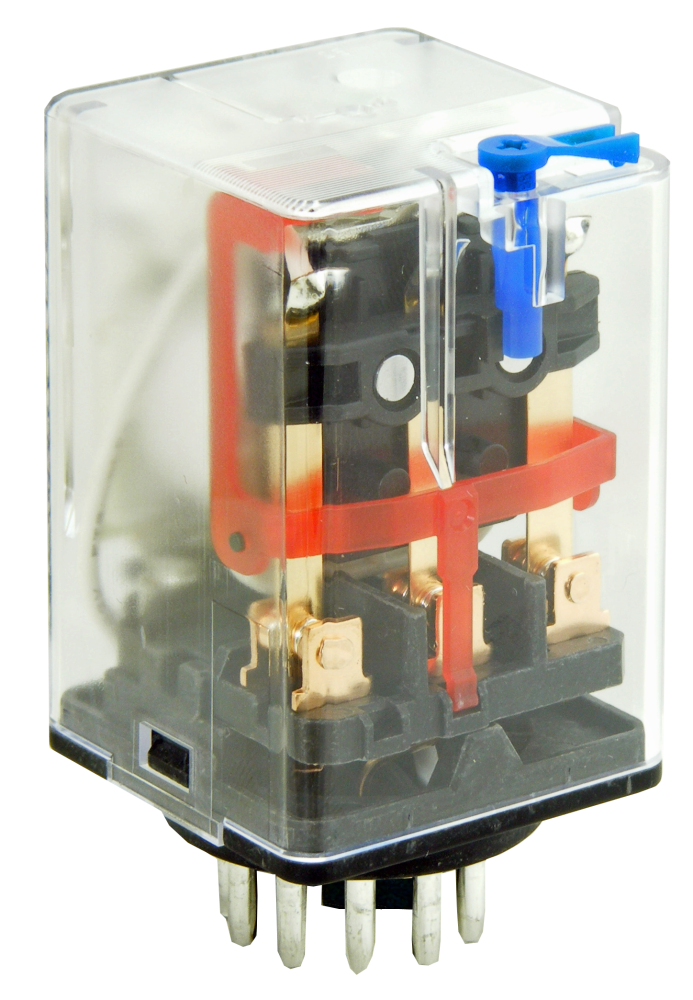

VDC - 10 Amp 3 Pole Changeover - 3 Form C

VDC - 10 Amp 3 Pole Changeover - 3 Form C

  • 10 Amp switching capacity
  • 3 Form C configuration
  • DC coil version
  • High electrical endurance (min 100,000 operations)
  • Contact materials AgSnO2. Gold plated version available on request
  • RoHS compliant
  • Industry standard 8 or 11 round plug in terminals
  • Din Rail Plug in sockets available
  • Dust protected
  • Smoke cover type
  • Approvals UL & CUR
  • With Lockable test button, flag indicator and built in LED as standard

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF10FH006D3ZDT HONGFA PLUG IN RELAY 6VDC 3CO 10A HF10FH/006-3ZDT(611) 3C - 3 Pole Changeover 6VDC 1500mW 7.2 10 AMP 4.8 0.6 23.5 x (1�10%)
HF10FH012D3ZDT HONGFA PLUG IN RELAY 12VDC 3CO 10A HF10FH/012D-3ZDT 3C - 3 Pole Changeover 12VDC 1500mW 14.4 10 AMP 9.6 1.2 95 x (1�10%)
HF10FH024D3ZDT HONGFA PLUG IN RELAY 24VDC 3CO 10A HF10FH/024D-3ZDT 3C - 3 Pole Changeover 24VDC 1500mW 28.8 10 AMP 19.2 2.4 430 x (1�10%)
HF10FH048D3ZDT HONGFA PLUG IN RELAY 48VDC 3CO 10A HF10FH/048D-3ZDT(611) 3C - 3 Pole Changeover 48VDC 1500mW 57.6 10 AMP 38.4 4.8 1630 x (1�10%)
HF10FH110D3ZDT HONGFA PLUG IN RELAY 110DC 3CO 10A HF10FH/110D-3ZDT 3C - 3 Pole Changeover 110VDC 1500mW 132 10 AMP 88 11 7300 x (1�10%)
