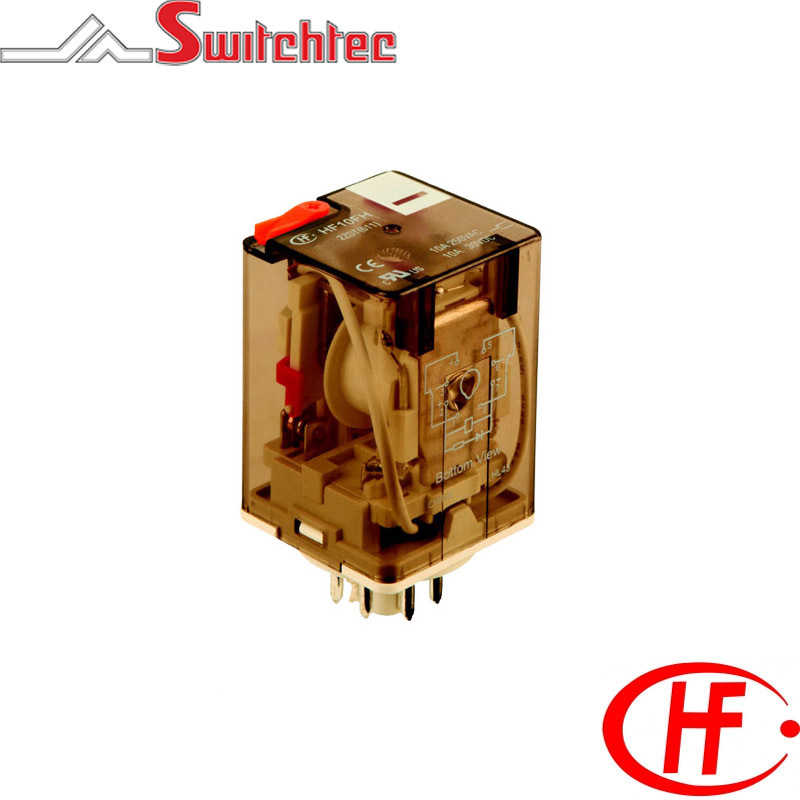

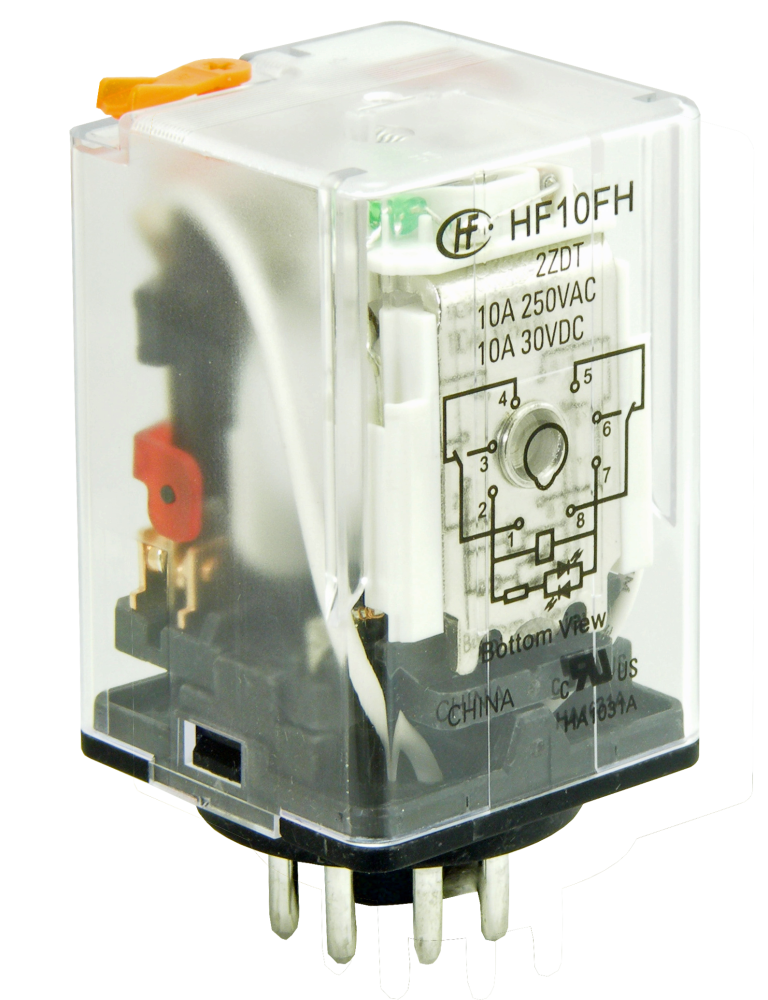

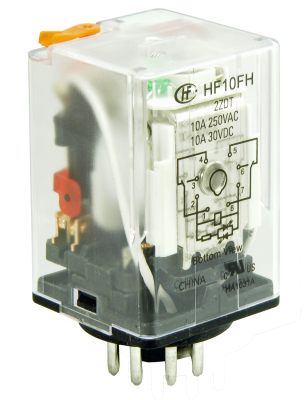

VAC - 10 Amp 2 Pole Changeover - 2 Form C

VAC - 10 Amp 2 Pole Changeover - 2 Form C

  • 10 Amp switching capacity
  • 2 Form C configuration
  • AC coil version
  • High electrical endurance (min 100,000 operations)
  • Contact materials AgSnO2. Gold plated version available on request
  • RoHS compliant
  • Industry standard 8 or 11 round plug in terminals
  • Din Rail Plug in sockets available
  • Dust protected
  • Smoke cover type
  • Approvals UL & CUR
  • With Lockable test button, flag indicator and built in LED as standard

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price
HF10FH006A2ZDT HONGFA PLUG IN RELAY 6VAC 2CO 10A HF10FH/006A-2ZDT 2C - 2 Pole Changeover 6VAC 2.7VA 7.2 10 AMP 3.9 x (1�10%) 4.8 1.8
HF10FH012A2ZDT HONGFA PLUG IN RELAY 12VAC 2CO 10A HF10FH/012A-2ZDT 2C - 2 Pole Changeover 12VAC 2.7VA 14.4 10 AMP 16.9 x (1�10%) 9.6 3.6
HF10FH024A2ZDT HONGFA PLUG IN RELAY 24VAC 2CO 10A HF10FH/024A-2ZDT 2C - 2 Pole Changeover 24VAC 2.7VA 28.8 10 AMP 70 x (1�10%) 19.2 7.2
HF10FH048A2ZDT HONGFA PLUG IN RELAY 48VAC 2CO 10A HF10FH/048A-2ZDT(611) 2C - 2 Pole Changeover 48VAC 2.7VA 57.6 10 AMP 315 x (1�10%) 38.4 14.4
HF10FH120A2ZDT HONGFA PLUG IN RELAY 115/120AC 2CO 10A HF10FH/120A-2ZDT 2C - 2 Pole Changeover 110/120 2.7VA 132 10 AMP 1600 x (1�10%) 88 36
HF10FH230A2ZDT HONGFA PLUG IN RELAY 230VAC 2CO 10A HF10FH/230A-2ZDT 2C - 2 Pole Changeover 220/240 2.7VA 264 10 AMP 6800 x (1�10%) 176 72
