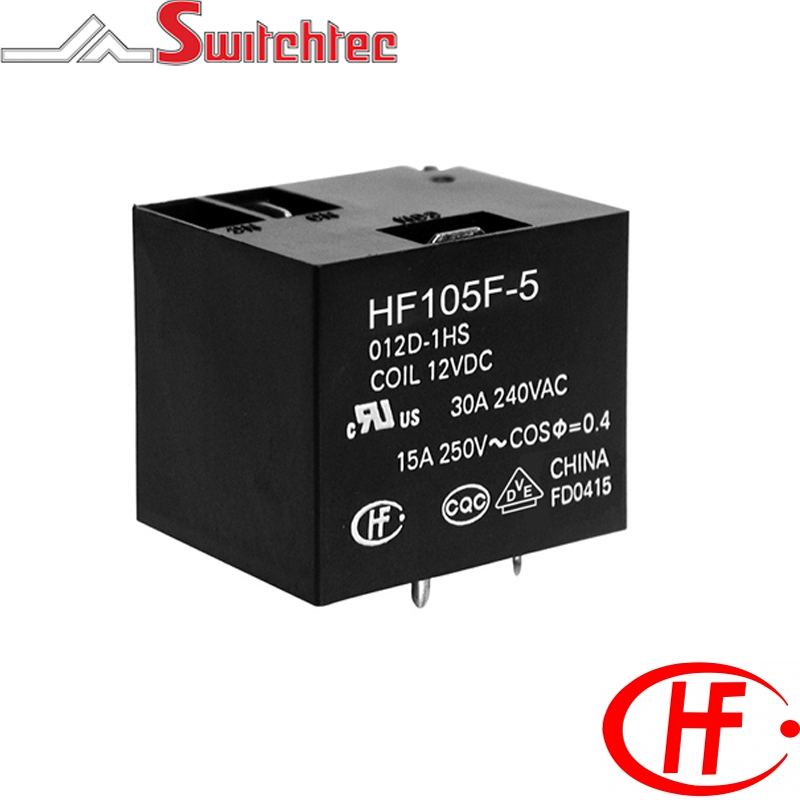

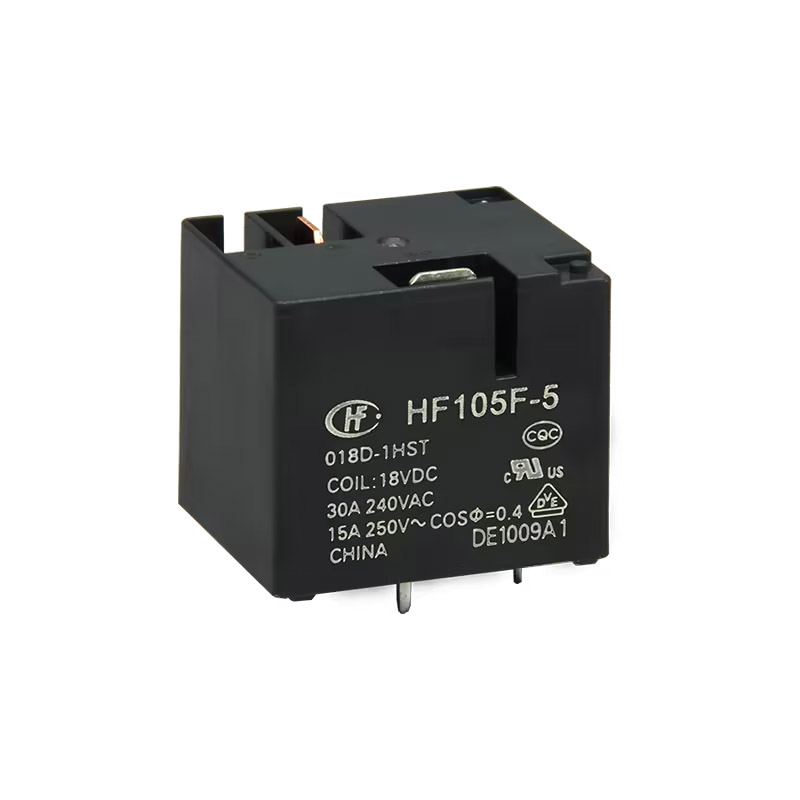

30 Amp 1 Pole Normally Open Relay DC Coils

30 Amp 1 Pole Normally Open Relay DC Coils

  • 30 Amp switching capacity
  • DC Coil
  • 1 Form A contact
  • Heavy load up to 7200VA
  • Wash tight
  • 4KV dielectric strength (between coil and contacts)
  • Contact materials AgSnO2
  • RoHS compliant
  • PCB Coil terminals, suitable for heavy duty loads
  • Approvals UL, CUL and TUV
  • 6.4QC (Faston) power connection



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF105F5005D1HSTF HONGFA PCB POWER RELAY 5DC 1NO HF105F5/005D-1HSTF(136) 1A- Single Pole Normally Open 5VDC 900mW 6.5 20 AMP 3.75 0.5 27 x (1�10%)
HF105F5006D1HSTF HONGFA PCB POWER RELAY 6DC 1NO HF105F5/006D-1HSTF(136) 1A- Single Pole Normally Open 6VDC 900mW 7.8 20 AMP 4.5 0.6 40 x (1�10%)
HF105F5009D1HSTF HONGFA PCB POWER RELAY 9DC 1NO HF105F5/009D-1HSTF(136) 1A- Single Pole Normally Open 9VDC 900mW 11.7 20 AMP 6.75 0.9 97 x (1�10%)
HF105F5012D1HSTF HONGFA PCB POWER RELAY 12DC 1NO HF105F5/012D-1HSTF(136) 1A- Single Pole Normally Open 12VDC 900mW 15.6 20 AMP 9 1.2 155 x (1�10%)
HF105F5015D1HSTF HONGFA PCB POWER RELAY 15DC 1NO HF105F5/015D-1HSTF(136) 1A- Single Pole Normally Open 15VDC 900mW 19.5 20 AMP 11.25 1.5 256 x (1�10%)
HF105F5018D1HSTF HONGFA PCB POWER RELAY 18DC 1NO HF105F5/018D-1HSTF(136) 1A- Single Pole Normally Open 18VDC 900mW 23.4 20 AMP 13.5 1.8 380 x (1�10%)
HF105F5024D1HSTF HONGFA PCB POWER RELAY 24DC 1NO HF105F5/024D-1HSTF(136) 1A- Single Pole Normally Open 24VDC 900mW 31.2 20 AMP 18 2.4 660 x (1�10%)
HF105F5048D1HSTF HONGFA PCB POWER RELAY 48DC 1NO HF105F5/048D-1HSTF(136) 1A- Single Pole Normally Open 48VDC 900mW 62.4 20 AMP 36 4.8 2560 x (1�10%)
HF105F5070D1HSTF HONGFA PCB POWER RELAY 70DC 1NO HF105F5/070D-1HSTF(136) 1A- Single Pole Normally Open 70VDC 900mW 91 20 AMP 52.5 7 5500 x (1�10%)
HF105F5110D1HSTF HONGFA PCB POWER RELAY 110DC 1NO HF105F5/110D-1HSTF(136) 1A- Single Pole Normally Open 110VDC 900mW 143 20 AMP 82.5 11 13450 x (1�10%)
