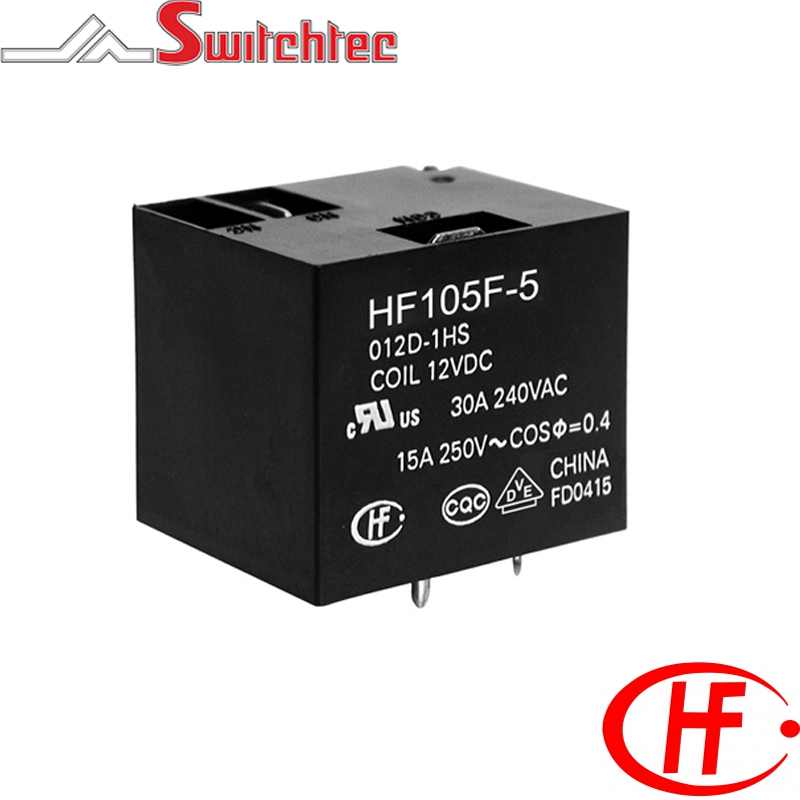

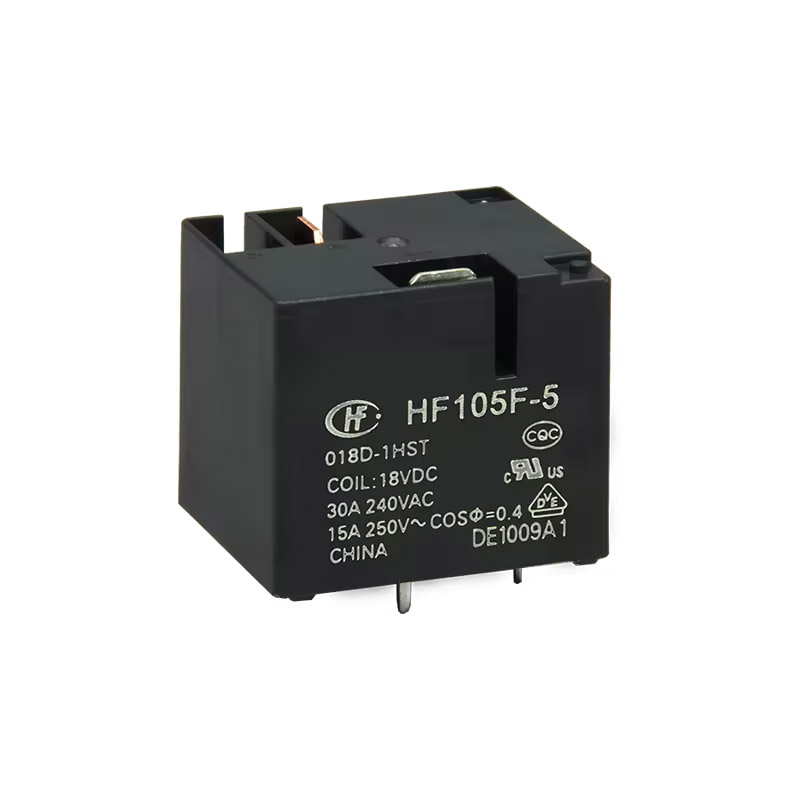

20 Amp 1 Pole Changeover Relay DC Coils

20 Amp 1 Pole Changeover Relay DC Coils

  • 20 Amp switching capacity
  • DC Coil
  • 1 Form C contact
  • Heavy load up to 7200VA
  • Wash tight
  • 4KV dielectric strength (between coil and contacts)
  • Contact materials AgSnO2
  • RoHS compliant
  • PCB Coil terminals, suitable for heavy duty loads
  • Approvals UL, CUL and TUV
  • 6.4QC (Faston) power connection



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF105F5005D1ZSTF HONGFA PCB POWER RELAY 5DC 1CO HF105F5/005D-1ZSTF(136) 1C - Single Pole Changeover 5VDC 900mW 6.5 20 AMP 3.75 0.5 27 x (1�10%)
HF105F5006D1ZSTF HONGFA PCB POWER RELAY 6DC 1CO HF105F5/006D-1ZSTF(136) 1C - Single Pole Changeover 6VDC 900mW 7.8 20 AMP 4.5 0.6 40 x (1�10%)
HF105F5009D1ZSTF HONGFA PCB POWER RELAY 9DC 1CO HF105F5/009D-1ZSTF(136) 1C - Single Pole Changeover 9VDC 900mW 11.7 20 AMP 6.75 0.9 97 x (1�10%)
HF105F5012D1ZSTF HONGFA PCB POWER RELAY 12DC 1CO HF105F5/012D-1ZSTF(136) 1C - Single Pole Changeover 12VDC 900mW 15.6 20 AMP 9 1.2 155 x (1�10%)
HF105F5015D1ZSTF HONGFA PCB POWER RELAY 15DC 1CO HF105F5/015D-1ZSTF(136) 1C - Single Pole Changeover 15VDC 900mW 19.5 20 AMP 11.25 1.5 256 x (1�10%)
HF105F5018D1ZSTF HONGFA PCB POWER RELAY 18DC 1CO HF105F5/018D-1ZSTF(136) 1C - Single Pole Changeover 18VDC 900mW 23.4 20 AMP 13.5 1.8 380 x (1�10%)
HF105F5024D1ZSTF HONGFA PCB POWER RELAY 24DC 1CO HF105F5/024D-1ZSTF(136) 1C - Single Pole Changeover 24VDC 900mW 31.2 20 AMP 18 2.4 660 x (1�10%)
HF105F5048D1ZSTF HONGFA PCB POWER RELAY 48DC 1CO HF105F5/048D-1ZSTF(136) 1C - Single Pole Changeover 48VDC 900mW 62.4 20 AMP 36 4.8 2560 x (1�10%)
HF105F5070D1ZSTF HONGFA PCB POWER RELAY 70DC 1CO HF105F5/070D-1ZSTF(136) 1C - Single Pole Changeover 70VDC 900mW 91 20 AMP 52.5 7 5500 x (1�10%)
HF105F5110D1ZSTF HONGFA PCB POWER RELAY 110DC 1CO HF105F5/110D-1ZSTF(136) 1C - Single Pole Changeover 110VDC 900mW 143 20 AMP 82.5 11 13450 x (1�10%)
