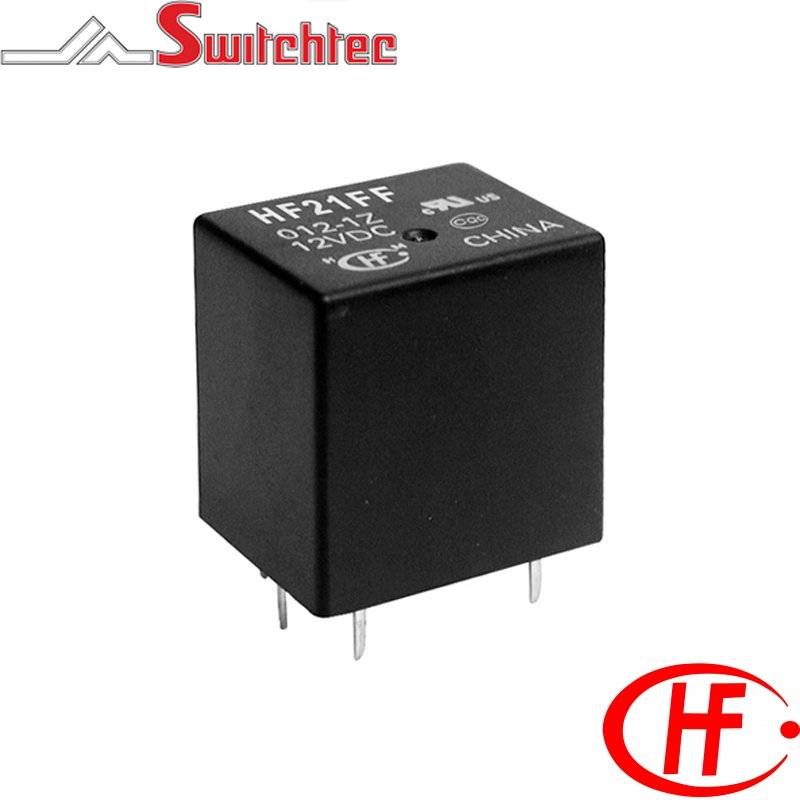

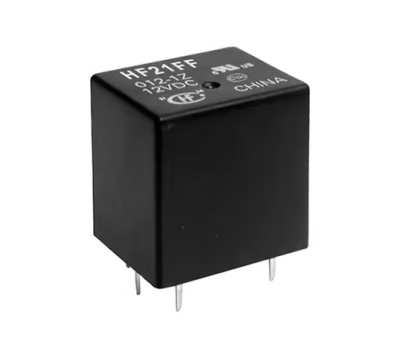

10 Amp 1 Pole Changeover Relay

10 Amp 1 Pole Changeover Relay

  • 10 amp 1 Form C switching capacity
  • Fully sealed
  • Wash Tight
  • 360mW & 530mW coils
  • Contact Material AgSnO2
  • RoHS Complaint
  • Approvals UL/CUL & TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF21FF0051ZSTF HONGFA PCB CUBE RELAY 5VDC 10A SPDT HF21FF/005-1ZSTF 1C - Single Pole Changeover 5VDC 360mW 6.5 10 AMP 3.8 0.5 70 x (1�10%)
HF21FF0061ZSTF HONGFA PCB CUBE RELAY 6VDC 10A SPDT HF21FF/006-1ZSTF 1C - Single Pole Changeover 6VDC 360mW 7.8 10 AMP 4.5 0.6 100 x (1�10%)
HF21FF0091ZSTF HONGFA PCB CUBE RELAY 9VDC 10A SPDT HF21FF/009-1ZSTF 1C - Single Pole Changeover 9VDC 360mW 11.7 10 AMP 6.8 0.9 225 x (1�10%)
HF21FF0121ZSTF HONGFA PCB CUBE RELAY 12VDC 10A SPDT HF21FF/012-1ZSTF 1C - Single Pole Changeover 12VDC 360mW 15.6 10 AMP 9 1.2 400 x (1�10%)
HF21FF0181ZSTF HONGFA PCB CUBE RELAY 18VDC 10A SPDT HF21FF/018-1ZSTF 1C - Single Pole Changeover 18VDC 360mW 23.4 10 AMP 13.5 1.8 900 x (1�10%)
HF21FF0241ZSTF HONGFA PCB CUBE RELAY 24VDC 10A SPDT HF21FF/024-1ZSTF 1C - Single Pole Changeover 24VDC 360mW 31.2 10 AMP 18 2.4 1600 x (1�15%)
HF21FF0481ZSTF HONGFA PCB CUBE RELAY 48VDC 10A SPDT HF21FF/048-1ZSTF 1C - Single Pole Changeover 48VDC 530mW 62.4 10 AMP 36 4.8 4500 x (1�15%)
