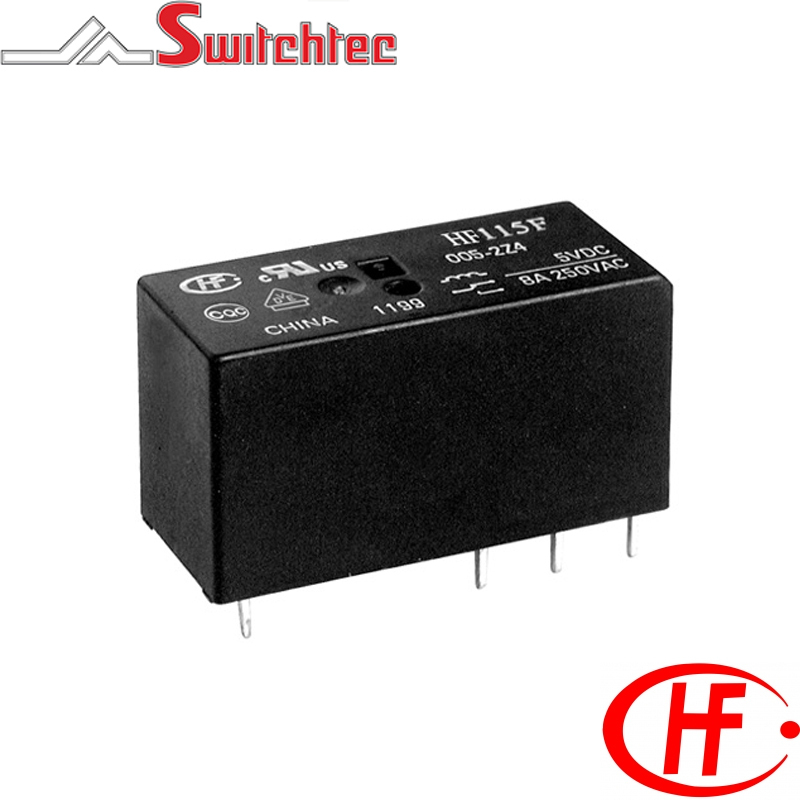

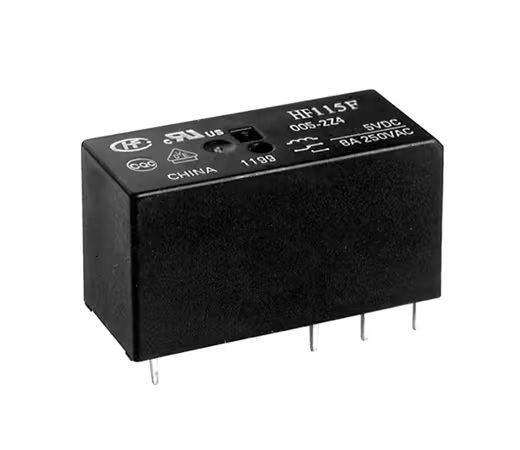

8 Amp 2 x Normally Open - 2 Form A

8 Amp 2 x Normally Open - 2 Form A

  • 8 Amp switching capacity
  • 400mW Coil
  • 5KVA dielectric strength (between coil and contacts)
  • 2 Form A contact
  • Creepage distance 10mm
  • DC Coil Version
  • Contact materials AgSnO2 as standard
  • Available on request AgCdO, AgNi, AgCdO+Au plated, AgNi + Au plated contacts
  • RoHS compliant
  • Fully sealed
  • Compliant with VDE 0435/0631/0700
  • Approvals FIMKO, VDE UL & CUL
  • P.C. & DIN rail sockets available
  • Insulation Class F



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115F0052HS4AF HONGFA PCB POWER RELAY 5DC 8A 2NO HF115F/005-2HS4AF 2A - Double Pole Normally Open 5VDC 400mW 7.5 8 AMP 3.5 0.5 62 x (1�10%)
HF115F0062HS4AF HONGFA PCB POWER RELAY 6DC 8A 2NO HF115F/006-2HS4AF 2A - Double Pole Normally Open 6VDC 400mW 9 8 AMP 4.2 0.6 90 x (1�10%)
HF115F0092HS4AF HONGFA PCB POWER RELAY 9DC 8A 2NO HF115F/009-2HS4AF 2A - Double Pole Normally Open 9VDC 400mW 13.5 8 AMP 6.3 0.9 202 x (1�10%)
HF115F0122HS4AF HONGFA PCB POWER RELAY 12DC 8A 2NO HF115F/012-2HS4AF 2A - Double Pole Normally Open 12VDC 400mW 18 8 AMP 8.4 1.2 360 x (1�10%)
HF115F0182HS4AF HONGFA PCB POWER RELAY 18DC 8A 2NO HF115F/018-2HS4AF 2A - Double Pole Normally Open 18VDC 400mW 27 8 AMP 12.6 1.8 810 x (1�10%)
HF115F0242HS4AF HONGFA PCB POWER RELAY 24DC 8A 2NO HF115F/024-2HS4AF 2A - Double Pole Normally Open 24VDC 400mW 36 8 AMP 16.8 2.4 1440 x (1�15%)
HF115F0482HS4AF HONGFA PCB POWER RELAY 48DC 8A 2NO HF115F/048-2HS4AF 2A - Double Pole Normally Open 48VDC 400mW 72 8 AMP 33.6 4.8 5760 x (1�15%)
HF115F0602HS4AF HONGFA PCB POWER RELAY 60DC 8A 2NO HF115F/060-2HS4AF 2A - Double Pole Normally Open 60VDC 400mW 90 8 AMP 42 6 7500 x (1�15%)
HF115F1102HS4AF HONGFA PCB POWER RELAY 110DC 8A 2NO HF115F/110-2HS4AF 2A - Double Pole Normally Open 110VDC 400mW 165 8 AMP 77 11 25200 x (1�10%)
