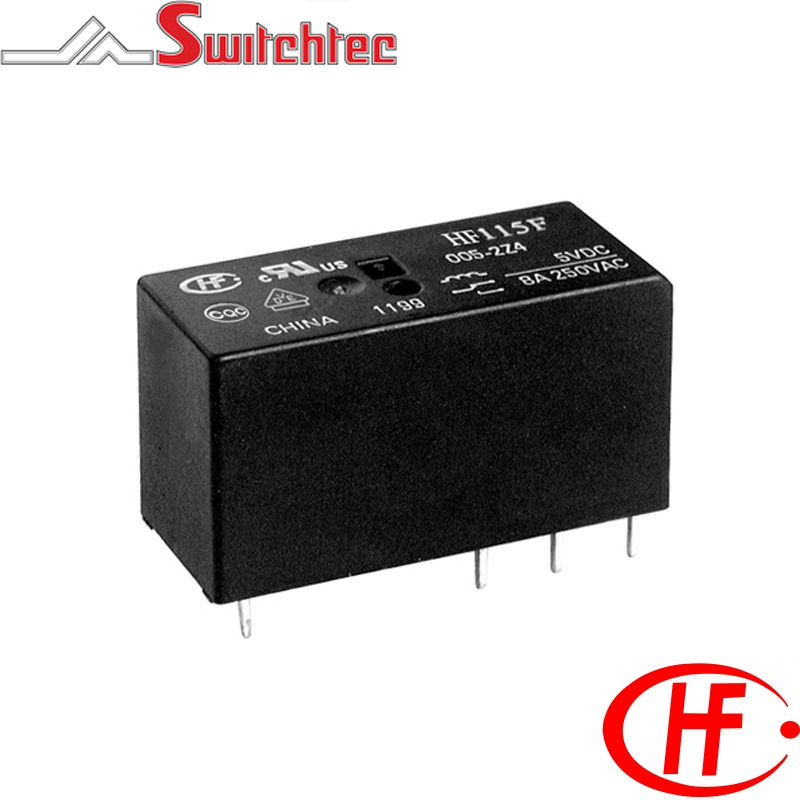

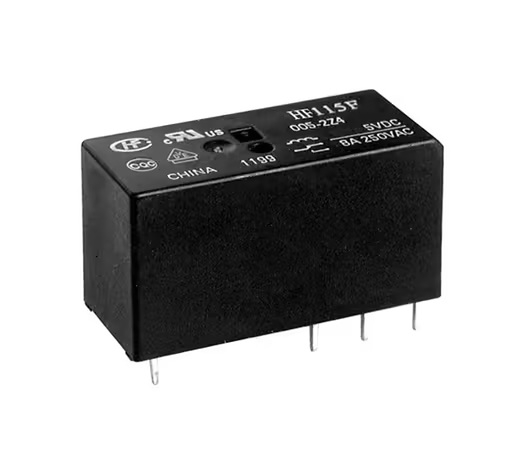

8 Amp 2 x Changeover - 2 Form C

8 Amp 2 x Changeover - 2 Form C

  • 8 Amp switching capacity
  • 400mW Coil
  • 5KVA dielectric strength (between coil and contacts)
  • 2 Form C contact
  • Creepage distance 10mm
  • DC Coil Version
  • Contact materials AgSnO2 as standard
  • Available on request AgCdO, AgNi, AgCdO+Au plated, AgNi + Au plated contacts
  • RoHS compliant
  • Fully sealed
  • Compliant with VDE 0435/0631/0700
  • Approvals FIMKO, VDE UL & CUL
  • P.C. & DIN rail sockets available
  • Insulation Class F



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115F0052ZS4AF HONGFA PCB POWER RELAY 5VDC 8A 2CO HF115F/005-2ZS4AF 2C - Double Pole Change Over 5VDC 400mW 7.5 8 AMP 3.5 0.5 62 x (1�10%)
HF115F0062ZS4AF HONGFA PCB POWER RELAY 6VDC 8A 2CO HF115F/006-2ZS4AF 2C - Double Pole Change Over 6VDC 400mW 9 8 AMP 4.2 0.6 90 x (1�10%)
HF115F0092ZS4AF HONGFA PCB POWER RELAY 9DC 8A 2CO HF115F/009-2ZS4AF 2C - Double Pole Change Over 9VDC 400mW 13.5 8 AMP 6.3 0.9 202 x (1�10%)
HF115F0122ZS4AF HONGFA PCB POWER RELAY 12DC 8A 2CO HF115F/012-2ZS4AF 2C - Double Pole Change Over 12VDC 400mW 18 8 AMP 8.4 1.2 360 x (1�10%)
HF115F0182ZS4AF HONGFA PCB POWER RELAY 18DC 8A 2CO HF115F/018-2ZS4AF 2C - Double Pole Change Over 18VDC 400mW 27 8 AMP 12.6 1.8 810 x (1�10%)
HF115F0242ZS4AF HONGFA PCB POWER RELAY 24DC 8A 2CO HF115F/024-2ZS4AF 2C - Double Pole Change Over 24VDC 400mW 36 8 AMP 16.8 2.4 1440 x (1�15%)
HF115F0482ZS4AF HONGFA PCB POWER RELAY 48DC 8A 2CO HF115F/048-2ZS4AF 2C - Double Pole Change Over 48VDC 400mW 72 8 AMP 33.6 4.8 5760 x (1�15%)
HF115F0602ZS4AF HONGFA PCB POWER RELAY 60DC 8A 2CO HF115F/060-2ZS4AF 2C - Double Pole Change Over 60VDC 400mW 90 8 AMP 42 6 7500 x (1�15%)
HF115F1102ZS4AF HONGFA PCB POWER RELAY 110DC 8A 2CO HF115F/110-2ZS4AF 2C - Double Pole Change Over 110VDC 400mW 165 8 AMP 77 11 25200 x (1�10%)
