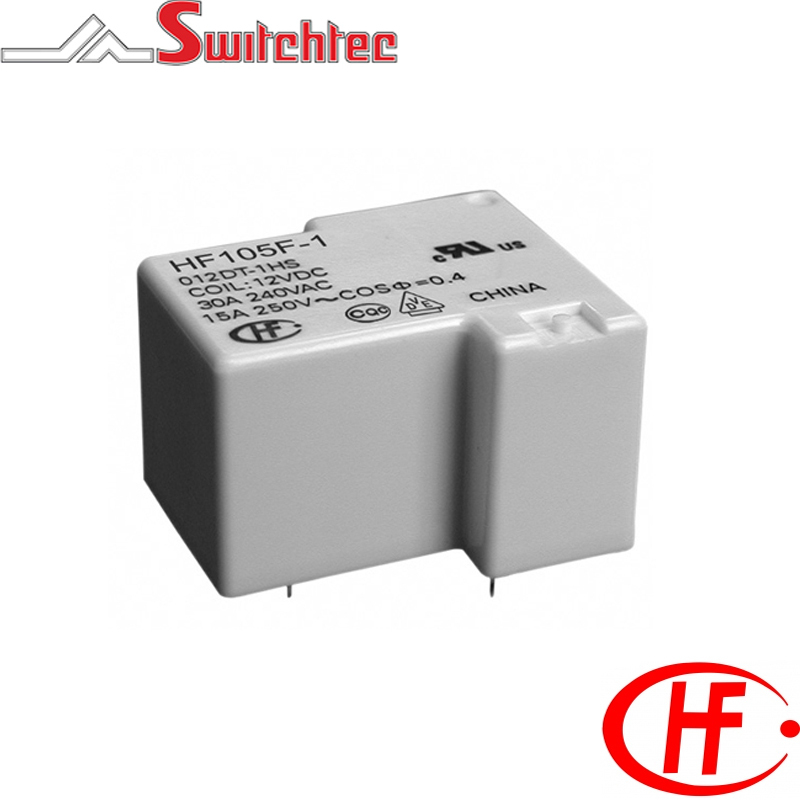

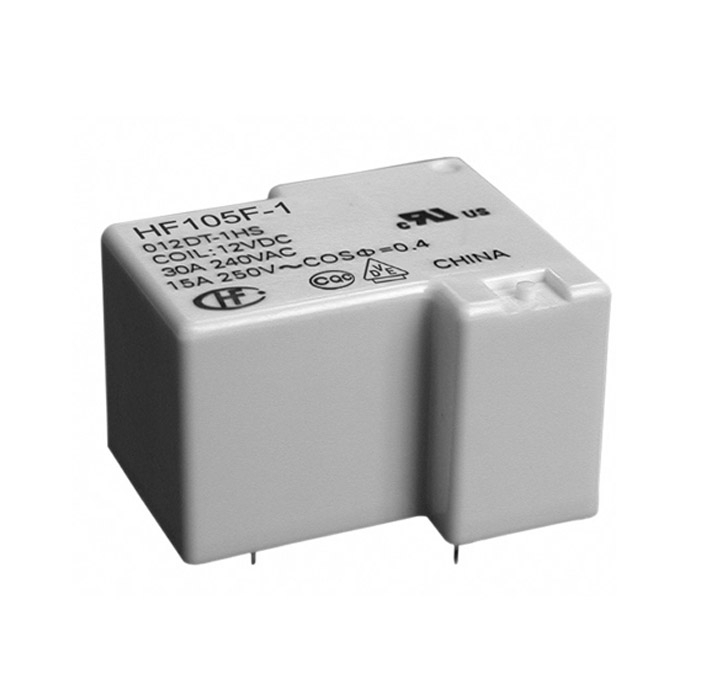

30 Amp 1 Pole Normally Open Relay DC Coil Versions With Pin 6

30 Amp 1 Pole Normally Open Relay DC Coil Versions With Pin 6

  • 30 Amp switching capacity
  • DC Coil
  • 1 Form A contact
  • Heavy load up to 7200VA
  • Wash tight
  • 4KV dielectric strength (between coil and contacts)
  • Class F Insulation available
  • Contact materials AgSnO2
  • RoHS compliant
  • Approvals UL, CUL and TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF105F1005D61HSTF HONGFA PCB POWER RELAY 5VDC 1NO HF105F-1/005D6-1HSTF(136) 1A - Single Pole Normally Open 5VDC 900mW 6.5 20 AMP 3.75 0.5 27 x (1�10%)
HF105F1006D61HSTF HONGFA PCB POWER RELAY 6VDC 1NO HF105F-1/006D6-1HSTF(136) 1A - Single Pole Normally Open 6VDC 900mW 7.8 20 AMP 4.5 0.6 40 x (1�10%)
HF105F1009D61HSTF HONGFA PCB POWER RELAY 9VDC 1NO HF105F-1/009D6-1HSTF(136) 1A - Single Pole Normally Open 9VDC 900mW 11.7 20 AMP 6.75 0.9 97 x (1�10%)
HF105F1012D61HSTF HONGFA PCB POWER RELAY 12VDC 1NO HF105F-1/012D6-1HSTF(136) 1A - Single Pole Normally Open 12VDC 900mW 15.6 20 AMP 9 1.2 155 x (1�10%)
HF105F1015D61HSTF HONGFA PCB POWER RELAY 15VDC 1NO HF105F-1/015D6-1HSTF(136) 1A - Single Pole Normally Open 15VDC 900mW 19.5 20 AMP 11.25 1.5 256 x (1�10%)
HF105F1018D61HSTF HONGFA PCB POWER RELAY 18VDC 1NO HF105F-1/018D6-1HSTF(136) 1A - Single Pole Normally Open 18VDC 900mW 23.4 20 AMP 13.5 1.8 380 x (1�10%)
HF105F1024D61HSTF HONGFA PCB POWER RELAY 24VDC 1NO HF105F-1/024D6-1HSTF(136) 1A - Single Pole Normally Open 24VDC 900mW 31.2 20 AMP 18 2.4 660 x (1�10%)
HF105F1048D61HSTF HONGFA PCB POWER RELAY 48VDC 1NO HF105F-1/048D6-1HSTF(136) 1A - Single Pole Normally Open 48VDC 900mW 62.4 20 AMP 36 4.8 2560 x (1�10%)
HF105F1070D61HSTF HONGFA PCB POWER RELAY 70VDC 1NO HF105F-1/070D6-1HSTF(136) 1A - Single Pole Normally Open 79VDC 900mW 91 20 AMP 52.5 7 5500 x (1�10%)
HF105F1110D61HSTF HONGFA PCB POWER RELAY 110DC 1NO HF105F-1/110D6-1HSTF(136) 1A - Single Pole Normally Open 110VDC 900mW 143 20 AMP 82.5 11 13450 x (1�10%)
