5mm Pin 16 Amp

5mm Pin 16 Amp

No detailed description is available for this product.

No detailed specifications are available for this product.

Click on any of the following links to download the file.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price

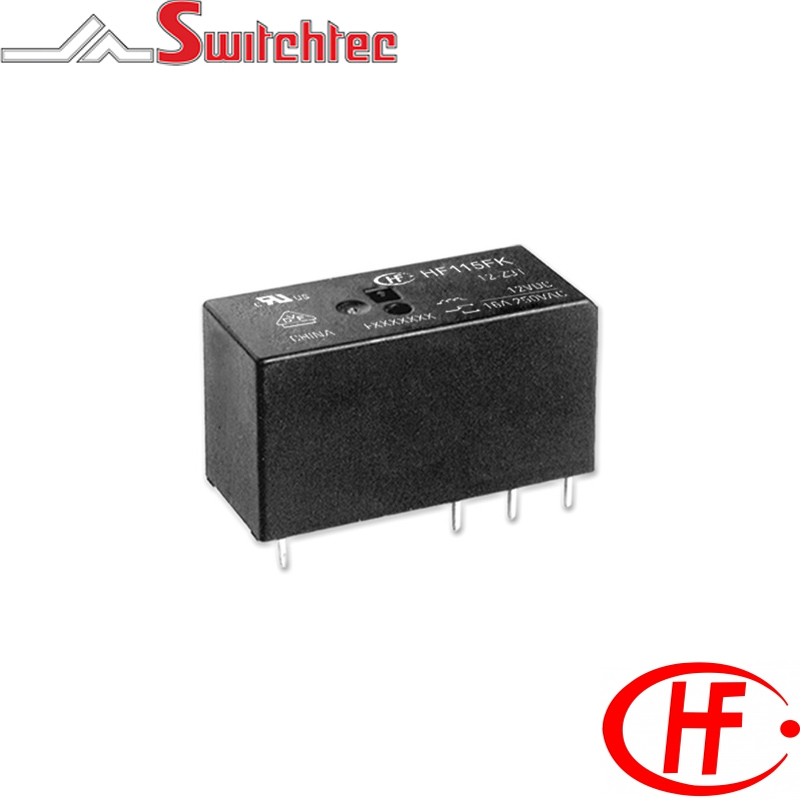

HF115FK005H3T HONGFA PCB POWER RELAY 5VDC 16A 1NO HF115F-K/005-H3T 1A - Single Pole Normally Open 5VDC 400mW 7.5 16AMP 3.5 0.5 62 x (1�10%)
HF115FK006H3T HONGFA PCB POWER RELAY 6VDC 16A 1NO HF115F-K/006-H3T 1A - Single Pole Normally Open 6VDC 400mW 9 16AMP 4.2 0.6 90 x (1�10%)
HF115FK009H3T HONGFA PCB POWER RELAY 9VDC 16A 1NO HF115F-K/009-H3T 1A - Single Pole Normally Open 9VDC 400mW 13.5 16AMP 6.3 0.9 202 x (1�10%)
HF115FK012H3T HONGFA PCB POWER RELAY 12VDC 16A 1NO HF115F-K/012-H3T 1A - Single Pole Normally Open 12VDC 400mW 18 16AMP 8.4 1.2 360 x (1�10%)
HF115FK018H3T HONGFA PCB POWER RELAY 18VDC 16A 1NO HF115F-K/018-H3T 1A - Single Pole Normally Open 18VDC 400mW 27 16AMP 12.6 1.8 810 x (1�10%)
HF115FK024H3T HONGFA PCB POWER RELAY 24VDC 16A 1NO HF115F-K/024-H3T 1A - Single Pole Normally Open 24VDC 400mW 36 16AMP 16.8 2.4 1400 x (1�10%)
HF115FK048H3T HONGFA PCB POWER RELAY 48VDC 16A 1NO HF115F-K/048-H3T 1A - Single Pole Normally Open 48VDC 400mW 72 16AMP 33.6 4.8 5760 x (1�10%)
