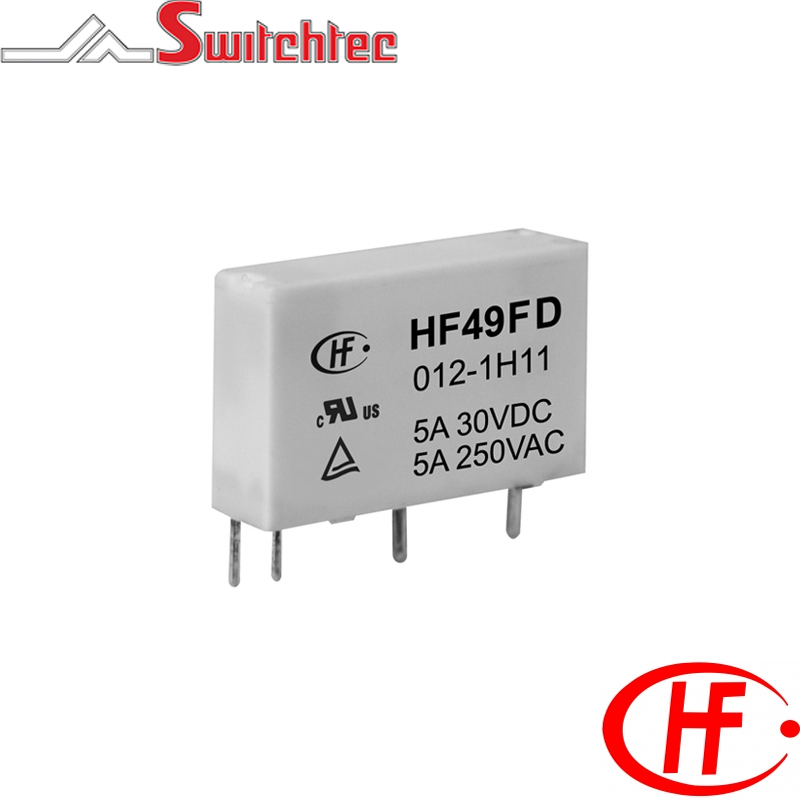

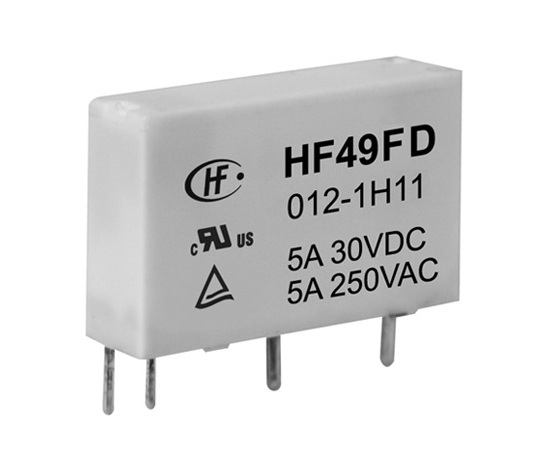

5 Amp 1 Pole Normally Open - Single Contact, 5.08mm Pitch

5 Amp 1 Pole Normally Open - Single Contact, 5.08mm Pitch

  • 5A switching capability
  • High sensitive: Min. 120mW
  • 3kV dielectric strength (between coil and contacts)
  • Meets IEC61131-2 reinforce insulation
  • Creepage distance: Min. 3.5mm
  • UL insulation system: Class F available
  • RoHS compliant
  • Approvals UL/CUL, TUV, CQC and VDE



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF49FD0051H11TF HONGFA PCB POWER RELAY 5VDC 5A SPNO HF49FD/005-1H11TF 1A - Single Pole Normally Open 5VDC 120mW 6 5 AMP 3.5 0.25 208 x (1�10%)
HF49FD0061H11TF HONGFA PCB POWER RELAY 6VDC 5A SPNO HF49FD/006-1H11TF 1A - Single Pole Normally Open 6VDC 120mW 7.2 5 AMP 4.2 0.3 300 x (1�10%)
HF49FD0091H11TF HONGFA PCB POWER RELAY 9VDC 5A SPNO HF49FD/009-1H11TF 1A - Single Pole Normally Open 9VDC 120mW 10.8 5 AMP 6.3 0.45 675 x (1�10%)
HF49FD0121H11TF HONGFA PCB POWER RELAY 12VDC 5A SPNO HF49FD/012-1H11TF 1A - Single Pole Normally Open 12VDC 120mW 14.4 5 AMP 8.4 0.6 1200 x (1�10%)
HF49FD0241H11TF HONGFA PCB POWER RELAY 24VDC 5A SPNO HF49FD/024-1H11TF 1A - Single Pole Normally Open 24VDC 180mW 28.8 5 AMP 16.8 1.2 3200 x (1�15%)
