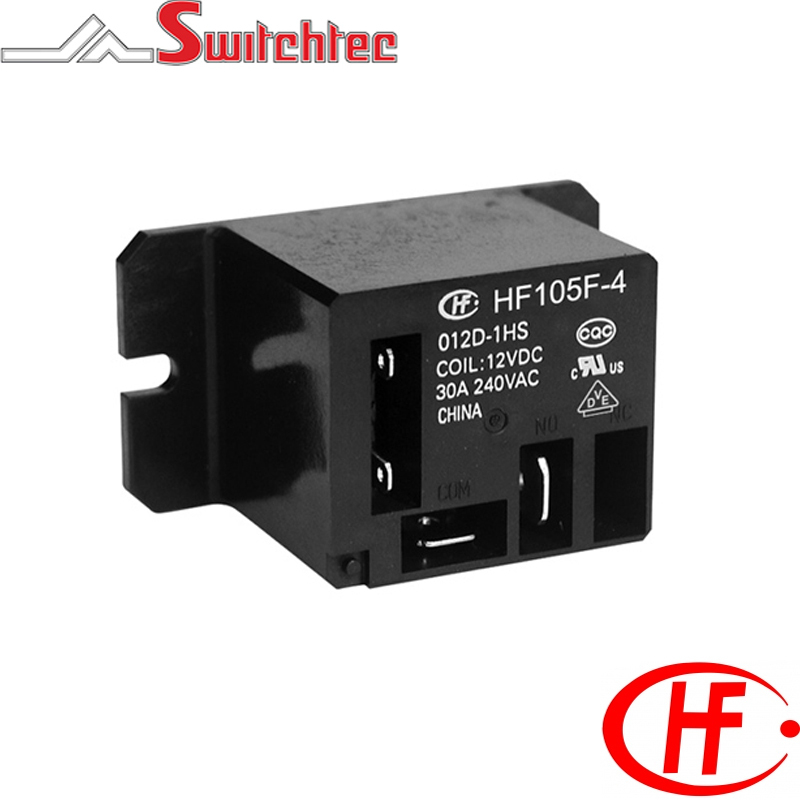

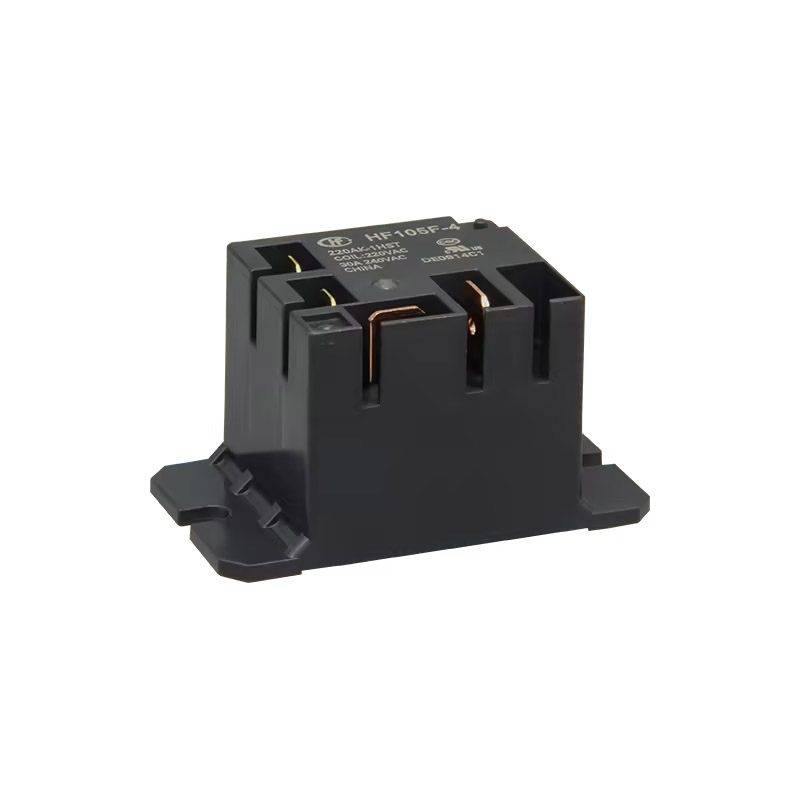

30 Amp 1 Pole Normally Open Relay DC Coil 4.8mm Coil Terminal

30 Amp 1 Pole Normally Open Relay DC Coil 4.8mm Coil Terminal

  • 30 Amp switching capacity
  • DC Coil
  • 1 Form A contact
  • Heavy load up to 7200VA
  • Wash tight
  • 2.5KV dielectric strength (between coil and contacts)
  • Contact materials AgSnO2
  • RoHS compliant
  • QC (Faston) terminals, suitable for heavy loads
  • Approvals UL, CUL and TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF105F4005DK1HSTF HONGFA POWER RELAY 5VDC 1NO HF105F-4/005DK-1HSTF(136) 1A - Single Pole Normally Open 5VDC 900mW 6.5 30 AMP 3.75 0.5 27 x (1�10%)
HF105F4006DK1HSTF HONGFA POWER RELAY 6VDC 1NO HF105F-4/006DK-1HSTF(136) 1A - Single Pole Normally Open 6VDC 900mW 7.8 30 AMP 4.5 0.6 40 x (1�10%)
HF105F4009DK1HSTF HONGFA POWER RELAY 9VDC 1NO HF105F-4/009DK-1HSTF(136) 1A - Single Pole Normally Open 9VDC 900mW 11.7 30 AMP 6.75 0.9 97 x (1�10%)
HF105F4012DK1HSTF HONGFA POWER RELAY 12VDC 1NO HF105F-4/012DK-1HSTF(136) 1A - Single Pole Normally Open 12VDC 900mW 15.6 30 AMP 9 1.2 155 x (1�10%)
HF105F4015DK1HSTF HONGFA POWER RELAY 15VDC 1NO HF105F-4/015DK-1HSTF(136) 1A - Single Pole Normally Open 15VDC 900mW 19.5 30 AMP 11.25 1.5 256 x (1�10%)
HF105F4018DK1HSTF HONGFA POWER RELAY 18VDC 1NO HF105F-4/018DK-1HSTF(136) 1A - Single Pole Normally Open 18VDC 900mW 23.4 30 AMP 13.5 1.8 380 x (1�10%)
HF105F4024DK1HSTF HONGFA POWER RELAY 24VDC 1NO HF105F-4/024DK-1HSTF(136) 1A - Single Pole Normally Open 24VDC 900mW 31.2 30 AMP 18 2.4 660 x (1�10%)
HF105F4048DK1HSTF HONGFA POWER RELAY 48VDC 1NO HF105F-4/048DK-1HSTF(136) 1A - Single Pole Normally Open 48VDC 900mW 62.4 30 AMP 36 4.8 2560 x (1�10%)
HF105F4110DK1HSTF HONGFA POWER RELAY 110VDC 1NO HF105F-4/110DK-1HSTF(136) 1A - Single Pole Normally Open 110VDC 900mW 143 30 AMP 82.5 11 13450 x (1�10%)
