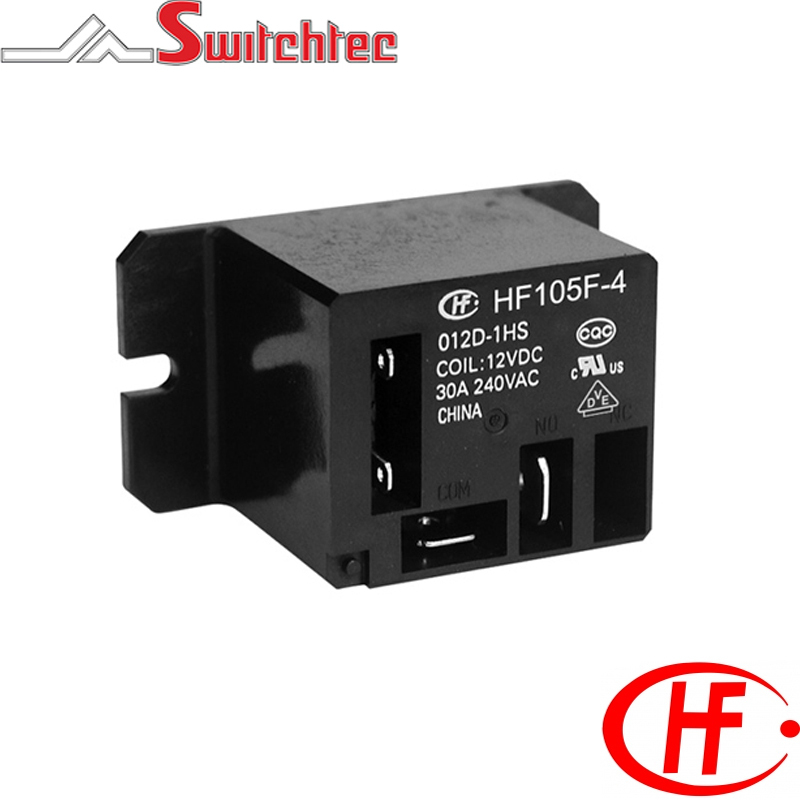

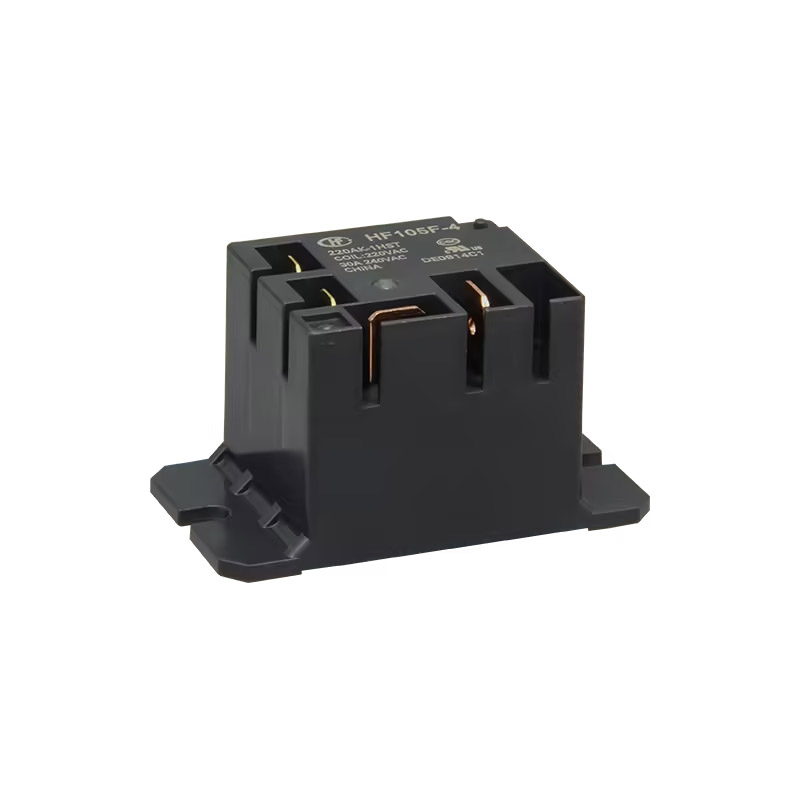

30 Amp 1 Pole Normally Open Relay AC Coil 4.8mm Coil Terminal

30 Amp 1 Pole Normally Open Relay AC Coil 4.8mm Coil Terminal

  • 30 Amp switching capacity
  • AC Coil
  • 1 Form A contact
  • Heavy load up to 7200VA
  • Wash tight
  • 2.5KV dielectric strength (between coil and contacts)
  • Contact materials AgSnO2
  • RoHS compliant
  • QC (Faston) terminals, suitable for heavy loads
  • Approvals UL, CUL and TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price
HF105F4012AK1HSTF HONGFA POWER RELAY 12VAC 1NO HF105F-4/012AK-1HSTF(136) 1A - Single Pole Normally Open 12VAC 2VA 15.6 30 AMP 25 x (1�10%) 9.6 2.4
HF105F4024AK1HSTF HONGFA POWER RELAY 24VAC 1NO HF105F-4/024AK-1HSTF(136) 1A - Single Pole Normally Open 24VAC 2VA 31.2 30 AMP 100 x (1�10%) 19.2 4.8
HF105F4120AK1HSTF HONGFA POWER RELAY 120VAC 1NO HF105F-4/120AK-1HSTF(136) 1A - Single Pole Normally Open 120VAC 2VA 156 30 AMP 2500 x (1�10%) 96 24
HF105F4208AK1HSTF HONGFA POWER RELAY 208VAC 1NO HF105F-4/208AK-1HSTF(136) 1A - Single Pole Normally Open 208VAC 2VA 270.4 30 AMP 11000 x (1�10%) 166.4 41
HF105F4220AK1HSTF HONGFA POWER RELAY 220VAC 1NO HF105F-4/220AK-1HSTF(136) 1A - Single Pole Normally Open 220VAC 2VA 286 30 AMP 13490 x (1�10%) 176 44
HF105F4240AK1HSTF HONGFA POWER RELAY 240VAC 1NO HF105F-4/240AK-1HSTF(136) 1A - Single Pole Normally Open 240VAC 2VA 286 30 AMP 13490 x (1�10%) 192 48
HF105F4277AK1HSTF HONGFA POWER RELAY 277VAC 1NO HF105F-4/277AK-1HSTF(136) 1A - Single Pole Normally Open 277VAC 2VA 360.1 30 AMP 15000 x (1�10%) 220 54
