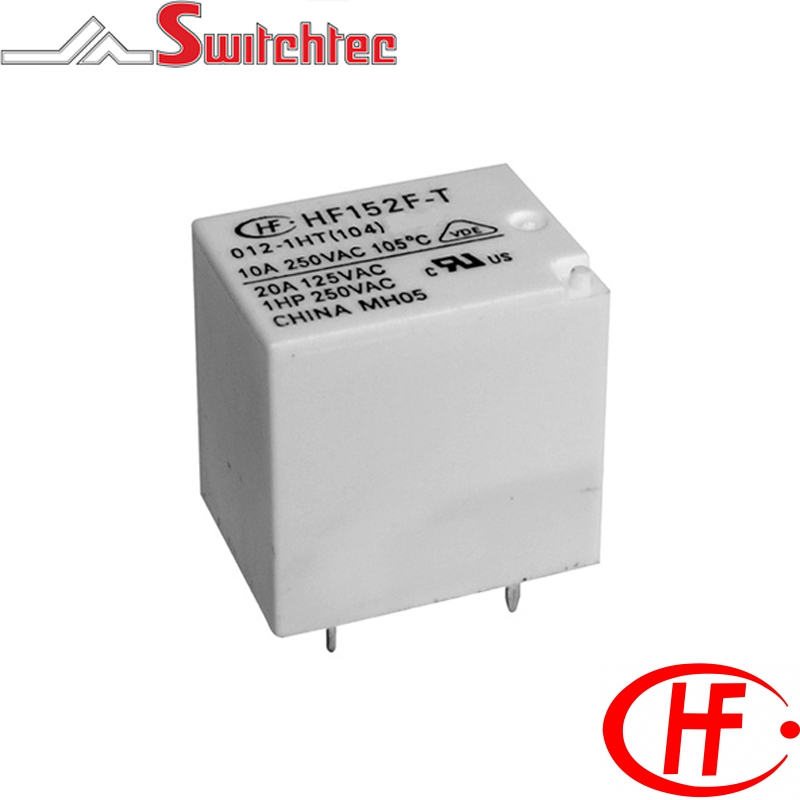

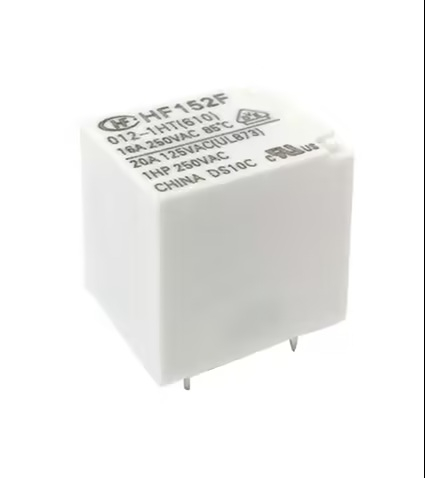

20 Amp 1 Pole Normally Open Relay

20 Amp 1 Pole Normally Open Relay

  • 20 amp switching capacity
  • 1 pole Form A
  • High temperature version available (105 C)
  • Fully sealed
  • 360mW Coil
  • Surge voltage up to 6000VA
  • Contact materials AgSnO2; AgNi also available
  • Gold plated contacts available
  • RoHS Complaint
  • Approvals UL, CUL & VDE
  • TV-8 125VAC rating Form A type HF152T



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF152F0031HST HONGFA PCB CUBE RELAY 3VDC 20A 1NO HF152F/003-1HST 1A - Single Pole Normally Open 3VDC 360mW 3.9 20 AMP 2.25 0.3 25 x (1�10%)
HF152F0051HST HONGFA PCB CUBE RELAY 5VDC 20A 1NO HF152F/005-1HST 1A - Single Pole Normally Open 5VDC 360mW 6.5 20 AMP 3.75 0.5 70 x (1�10%)
HF152F0061HST HONGFA PCB CUBE RELAY 6VDC 20A 1NO HF152F/006-1HST 1A - Single Pole Normally Open 6VDC 360mW 7.8 20 AMP 4.5 0.6 100 x (1�10%)
HF152F0091HST HONGFA PCB CUBE RELAY 9VDC 20A 1NO HF152F/009-1HST 1A - Single Pole Normally Open 9VDC 360mW 11.7 20 AMP 6.75 0.9 225 x (1�10%)
HF152F0121HST HONGFA PCB CUBE RELAY 12VDC 20A 1NO HF152F/012-1HST 1A - Single Pole Normally Open 12VDC 360mW 15.6 20 AMP 9 1.2 400 x (1�10%)
HF152F0181HST HONGFA PCB CUBE RELAY 18VDC 20A 1NO HF152F/018-1HST 1A - Single Pole Normally Open 18VDC 360mW 23.4 20 AMP 13.5 1.8 900 x (1�10%)
HF152F0241HST HONGFA PCB CUBE RELAY 24VDC 20A 1NO HF152F/024-1HST 1A - Single Pole Normally Open 24VDC 360mW 31.2 20 AMP 18 2.4 1600 x (1�10%)
HF152F0481HST HONGFA PCB CUBE RELAY 48VDC 20A 1NO HF152F/048-1HST 1A - Single Pole Normally Open 48VDC 360mW 62.4 20 AMP 36 4.8 6400 x (1�10%)
