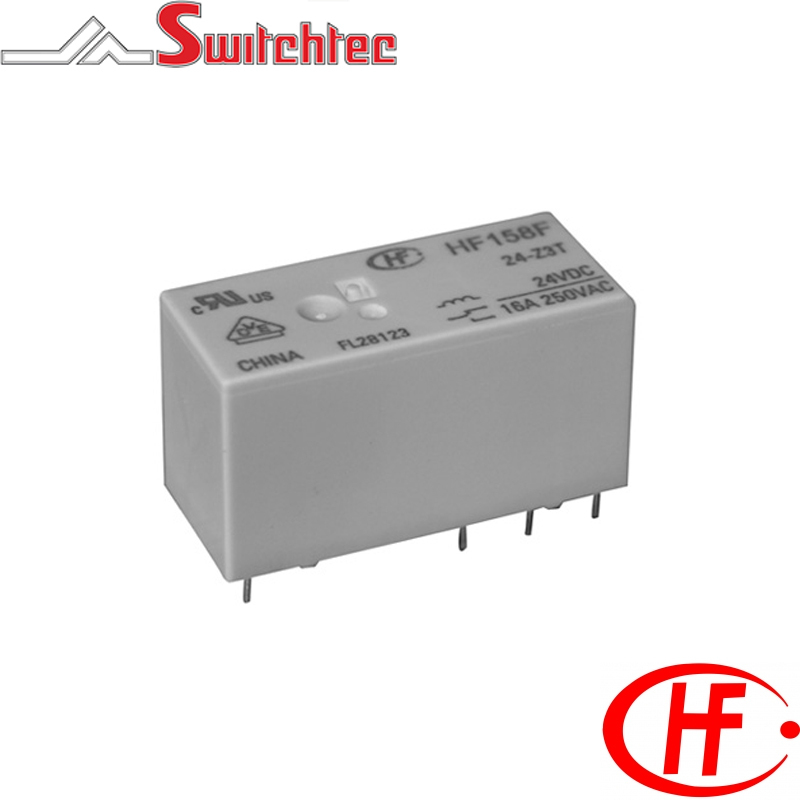

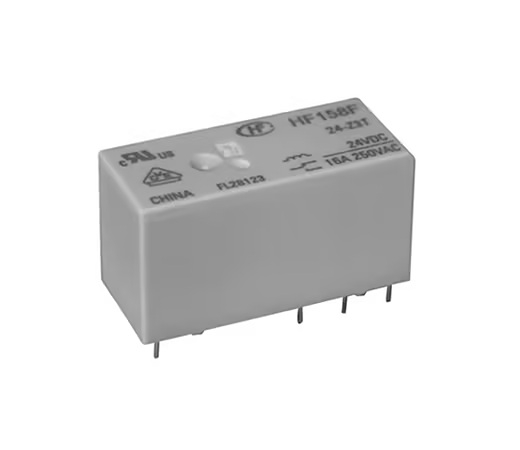

20 Amp 1 Pole Normally Open Relay

20 Amp 1 Pole Normally Open Relay

  • 20 Amp switching capacity
  • High Temperature version upto 105C
  • 5KV dielectric strength (between coil and contacts)
  • 1 Form A contact
  • 400mW Coil
  • Creepage distance 10mm
  • Class F Insulation
  • Relays compliant with IEC 60335-1 also available
  • Plastic sealed and Flux proofed types available
  • RoHS compliant
  • Approvals VDE & UL



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF158FT005HS3T HONGFA PCB POWER RELAY 5VDC 20A 1NO HF158F-T/005-HS3T 1C - Sinle Pole Changeover 5VDC 400mW 9 20 AMP 3.5 0.5 62 x (1�10%)
HF158FT006HS3T HONGFA PCB POWER RELAY 6VDC 20A 1NO HF158F-T/006-HS3T 1C - Sinle Pole Changeover 6VDC 400mW 10.8 20 AMP 4.2 0.6 90 x (1�10%)
HF158FT009HS3T HONGFA PCB POWER RELAY 9VDC 20A 1NO HF158F-T/009-HS3T 1C - Sinle Pole Changeover 9VDC 400mW 16.2 20 AMP 6.3 0.9 202 x (1�10%)
HF158FT012HS3T HONGFA PCB POWER RELAY 12VDC 20A 1NO HF158F-T/012-HS3T 1C - Sinle Pole Changeover 12VDC 400mW 21.6 20 AMP 8.4 1.2 360 x (1�10%)
HF158FT024HS3T HONGFA PCB POWER RELAY 24VDC 20A 1NO HF158F-T/024-HS3T 1C - Sinle Pole Changeover 24VDC 400mW 43.2 20 AMP 16.8 2.4 1440 x (1�10%)
HF158FT048HS3T HONGFA PCB POWER RELAY 48VDC 20A 1NO HF158F-T/048-HS3T 1C - Sinle Pole Changeover 48VDC 400mW 86.4 20 AMP 33.6 4.8 5760 x (1�15%)
