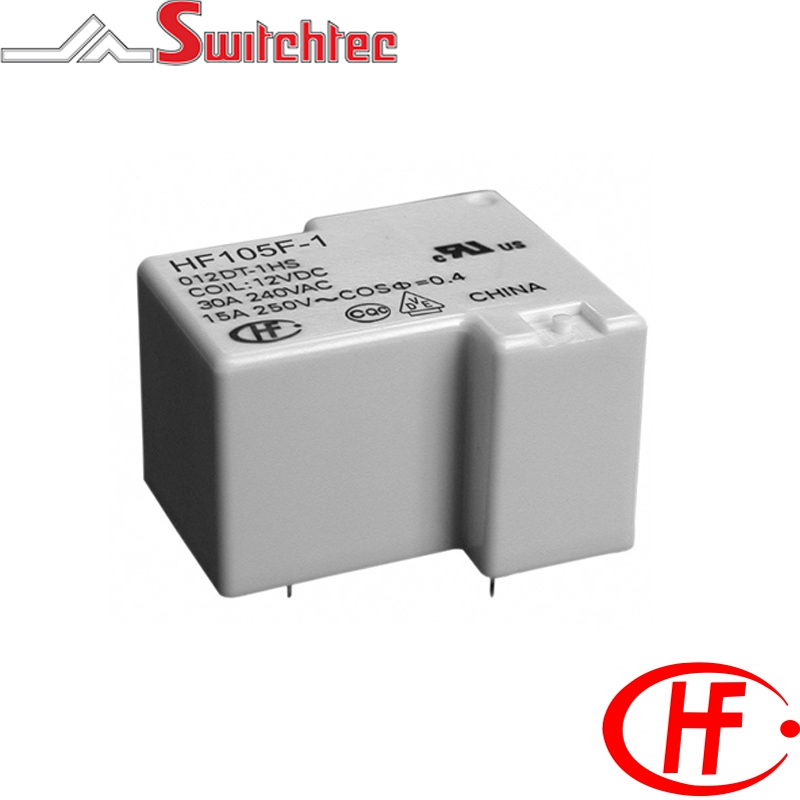

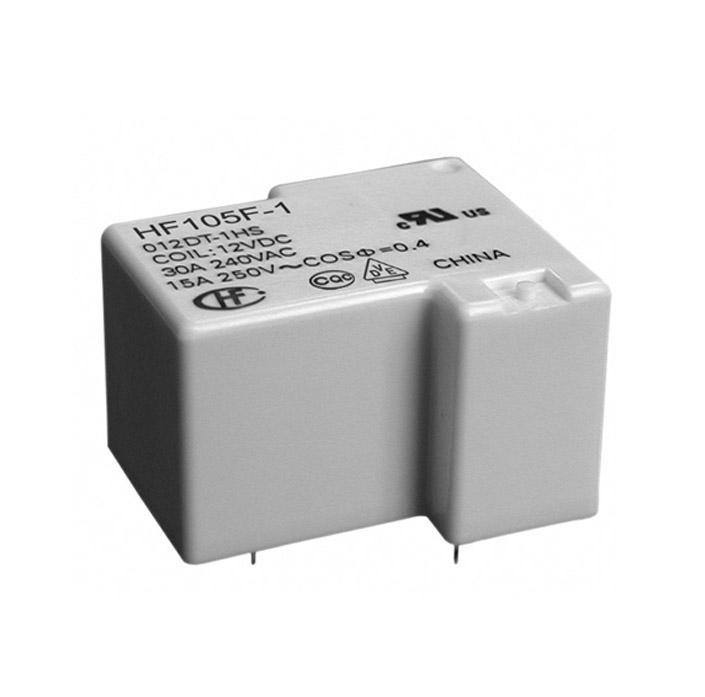

20 Amp 1 Pole Changeover Relay DC Coil Version Without Pin 6

20 Amp 1 Pole Changeover Relay DC Coil Version Without Pin 6

  • 20 Amp switching capacity
  • DC Coil
  • 1 Form C contact
  • Heavy load up to 7200VA
  • Wash tight
  • 4KV dielectric strength (between coil and contacts)
  • Class F Insulation available
  • Contact materials AgSnO2
  • RoHS compliant
  • Approvals UL, CUL and TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF105F1005DT1ZSTF HONGFA PCB POWER RELAY 5VDC 1CO HF105F-1/005DT-1ZSTF(136) 1C - Single Pole Changeover 5VDC 900mW 6.5 20 AMP 3.75 0.5 27 x (1�10%)
HF105F1006DT1ZSTF HONGFA PCB POWER RELAY 6VDC 1CO HF105F-1/006DT-1ZSTF(136) 1C - Single Pole Changeover 6VDC 900mW 7.8 20 AMP 4.5 0.6 40 x (1�10%)
HF105F1009DT1ZSTF HONGFA PCB POWER RELAY 9VDC 1CO HF105F-1/009DT-1ZSTF(136) 1C - Single Pole Changeover 9VDC 900mW 11.7 20 AMP 6.75 0.9 97 x (1�10%)
HF105F1012DT1ZSTF HONGFA PCB POWER RELAY 12VDC 1CO HF105F-1/012DT-1ZSTF(136) 1C - Single Pole Changeover 12VDC 900mW 15.6 20 AMP 9 1.2 155 x (1�10%)
HF105F1015DT1ZSTF HONGFA PCB POWER RELAY 15VDC 1CO HF105F-1/015DT-1ZSTF(136) 1C - Single Pole Changeover 15VDC 900mW 19.5 20 AMP 11.25 1.5 256 x (1�10%)
HF105F1018DT1ZSTF HONGFA PCB POWER RELAY 18VDC 1CO HF105F-1/018DT-1ZSTF(136) 1C - Single Pole Changeover 18VDC 900mW 23.4 20 AMP 13.5 1.8 380 x (1�10%)
HF105F1024DT1ZSTF HONGFA PCB POWER RELAY 24VDC 1CO HF105F-1/024DT-1ZSTF(136) 1C - Single Pole Changeover 24VDC 900mW 31.2 20 AMP 18 2.4 660 x (1�10%)
HF105F1048DT1ZSTF HONGFA PCB POWER RELAY 48VDC 1CO HF105F-1/048DT-1ZSTF(136) 1C - Single Pole Changeover 48VDC 900mW 62.4 20 AMP 36 4.8 2560 x (1�10%)
HF105F1070DT1ZSTF HONGFA PCB POWER RELAY 70VDC 1CO HF105F-1/070DT-1ZSTF(136) 1C - Single Pole Changeover 70VDC 900mW 91 20 AMP 52.5 7 5500 x (1�10%)
HF105F1110DT1ZSTF HONGFA PCB POWER RELAY 110VDC 1CO HF105F-1/110DT-1ZSTF(136) 1C - Single Pole Changeover 110VDC 900mW 143 20 AMP 82.5 11 13450 x (1�10%)
