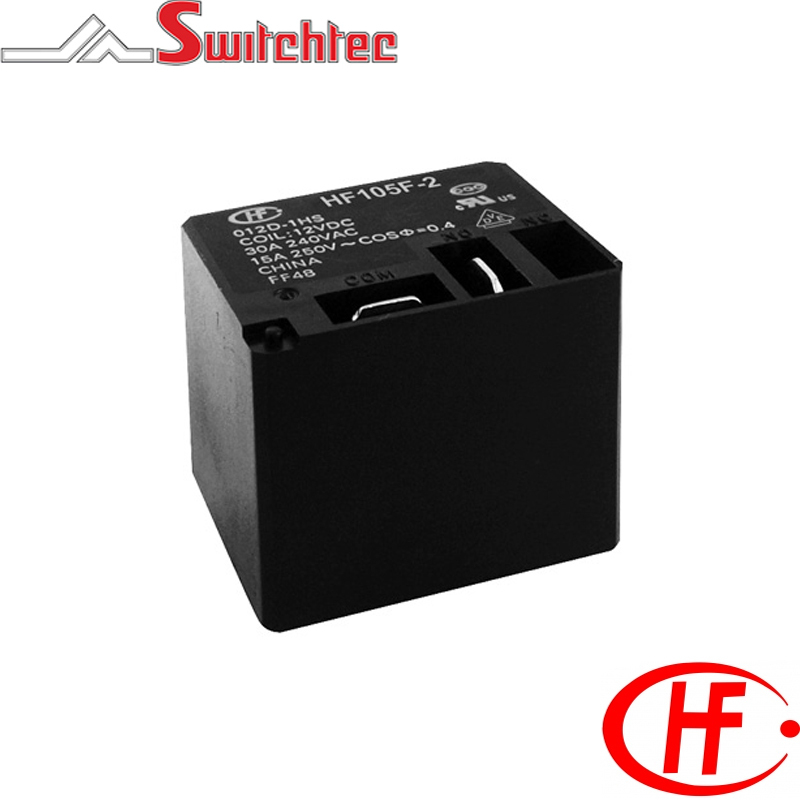

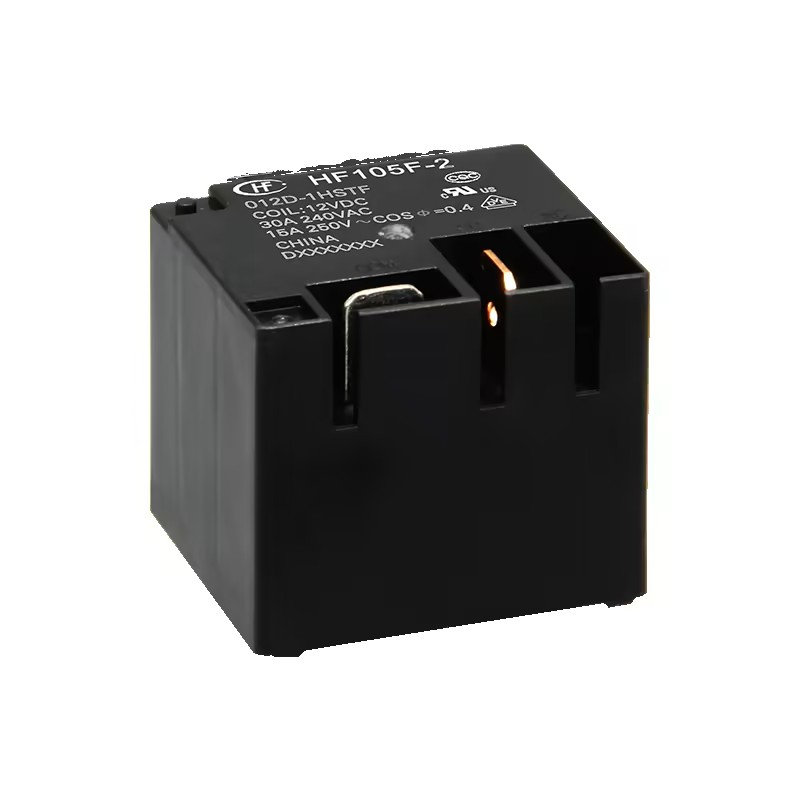

20 Amp 1 Pole Changeover Relay AC Coils

20 Amp 1 Pole Changeover Relay AC Coils

  • 20 Amp switching capacity
  • AC Coil
  • 1 Form C contact
  • Heavy load up to 7200VA
  • Wash tight
  • 4KV dielectric strength (between coil and contacts)
  • Contact materials AgSnO2
  • RoHS compliant
  • Approvals UL, CQC and TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price
HF105F2012A1ZSTF HONGFA PCB POWER RELAY 12VAC 1CO HF105F-2/012A-1ZSTF(136) 1C - Single Pole Changeover 12VAC 2VA 15.6 30 AMP 25 x (1�10%) 9.6 2.4
HF105F2024A1ZSTF HONGFA PCB POWER RELAY 24VAC 1CO HF105F-2/024A-1ZSTF(136) 1C - Single Pole Changeover 24VAC 2VA 31.2 30 AMP 100 x (1�10%) 19.2 4.8
HF105F2120A1ZSTF HONGFA PCB POWER RELAY 120VAC 1CO HF105F-2/120A-1ZSTF(136) 1C - Single Pole Changeover 120VAC 2VA 156 30 AMP 2500 x (1�10%) 96 24
HF105F2208A1ZSTF HONGFA PCB POWER RELAY 208VAC 1CO HF105F-2/208A-1ZSTF(136) 1C - Single Pole Changeover 208VAC 2VA 270.4 30 AMP 11000 x (1�10%) 166.4 41
HF105F2220A1ZSTF HONGFA PCB POWER RELAY 220VAC 1CO HF105F-2/220A-1ZSTF(136) 1C - Single Pole Changeover 220VAC 2VA 286 30 AMP 13490 x (1�10%) 176 44
HF105F2240A1ZSTF HONGFA PCB POWER RELAY 240VAC 1CO HF105F-2/240A-1ZSTF(136) 1C - Single Pole Changeover 240VAC 2VA 286 30 AMP 13490 x (1�10%) 192 48
HF105F2277A1ZSTF HONGFA PCB POWER RELAY 277VAC 1CO HF105F-2/277A-1ZSTF(136) 1C - Single Pole Changeover 277VAC 2VA 360.1 30 AMP 15000 x (1�10%) 220 54
