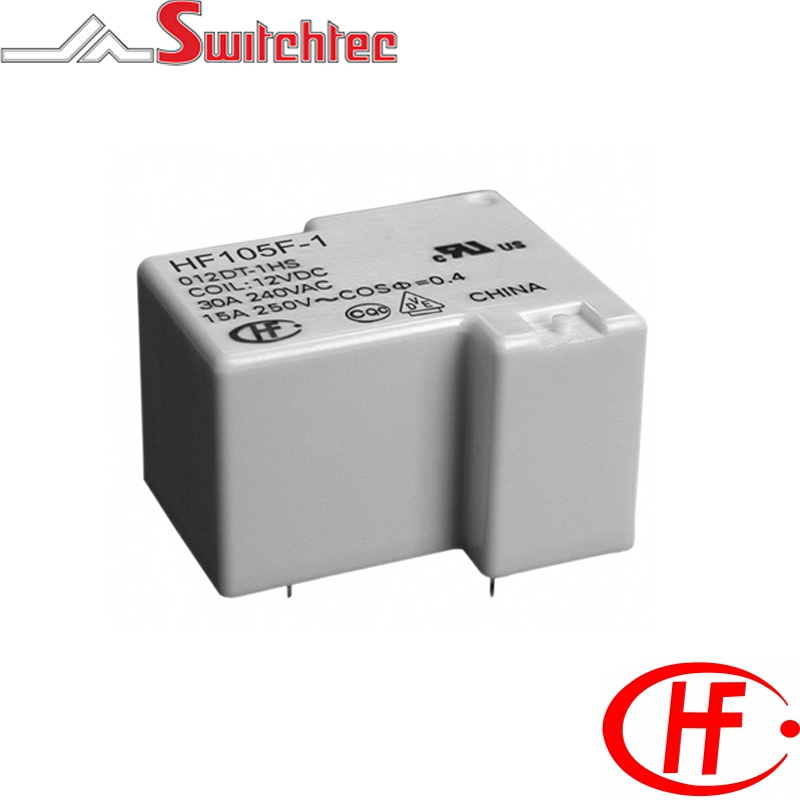

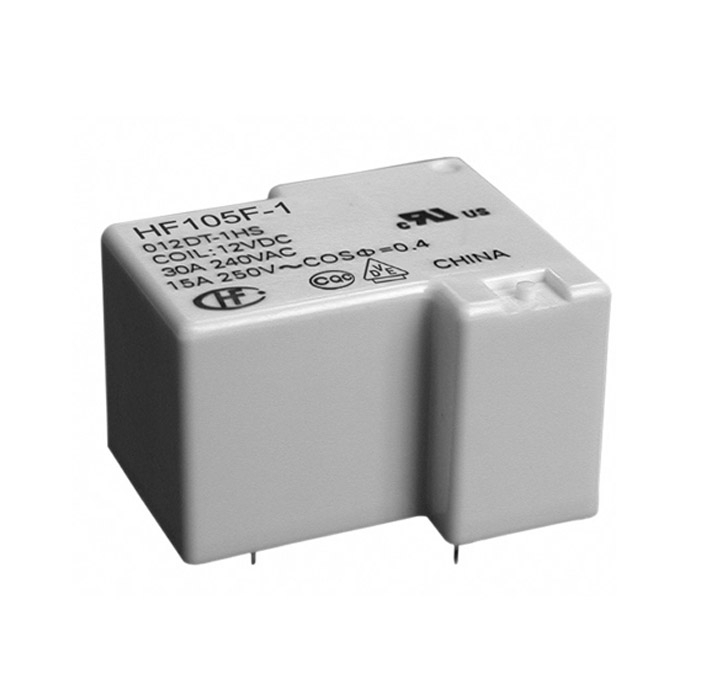

20 Amp 1 Pole Changeover Relay AC Coil Version Without Pin 6

20 Amp 1 Pole Changeover Relay AC Coil Version Without Pin 6

  • 20 Amp switching capacity
  • AC Coi
  • 1 Form C contact
  • Heavy load up to 7200VA
  • Wash tight
  • 4KV dielectric strength (between coil and contacts)
  • Class F Insulation available
  • Contact materials AgSnO2
  • RoHS compliant
  • Approvals UL, CUL and TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price
HF105F1012AT1ZSTF HONGFA PCB POWER RELAY 12VAC 1CO HF105F-1/012AT-1ZSTF(136) 1C - Single Pole Changeover 12VAC 2VA 15.6 20 AMP 25 x (1�10%) 9.6 2.4
HF105F1024AT1ZSTF HONGFA PCB POWER RELAY 24VAC 1CO HF105F-1/024AT-1ZSTF(136) 1C - Single Pole Changeover 24VAC 2VA 31.2 20 AMP 100 x (1�10%) 19.2 4.8
HF105F1120AT1ZSTF HONGFA PCB POWER RELAY 120VAC 1CO HF105F-1/120AT-1ZSTF(136) 1C - Single Pole Changeover 120VAC 2VA 156 20 AMP 2500 x (1�10%) 96 24
HF105F1208AT1ZSTF HONGFA PCB POWER RELAY 208VAC 1CO HF105F-1/208AT-1ZSTF(136) 1C - Single Pole Changeover 208VAC 2VA 270.4 20 AMP 11000 x (1�10%) 166.4 41
HF105F1220AT1ZSTF HONGFA PCB POWER RELAY 220VAC 1CO HF105F-1/220AT-1ZSTF(136) 1C - Single Pole Changeover 220VAC 2VA 286 20 AMP 13490 x (1�10%) 176 44
HF105F1240AT1ZSTF HONGFA PCB POWER RELAY 240VAC 1CO HF105F-1/240AT-1ZSTF 1C - Single Pole Changeover 240VAC 2VA 286 20 AMP 13490 x (1�10%) 192 48
HF105F1277AT1ZSTF HONGFA PCB POWER RELAY 277VAC 1CO HF105F-1/277AT-1ZSTF(136) 1C - Single Pole Changeover 277VAC 2VA 360.1 20 AMP 15000 x (1�10%) 220 54
