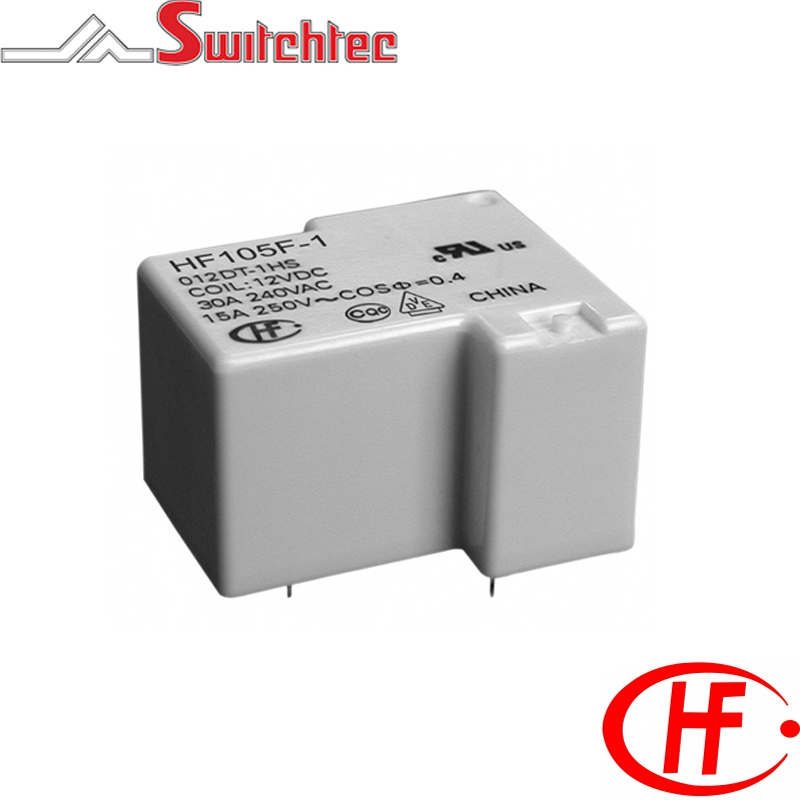

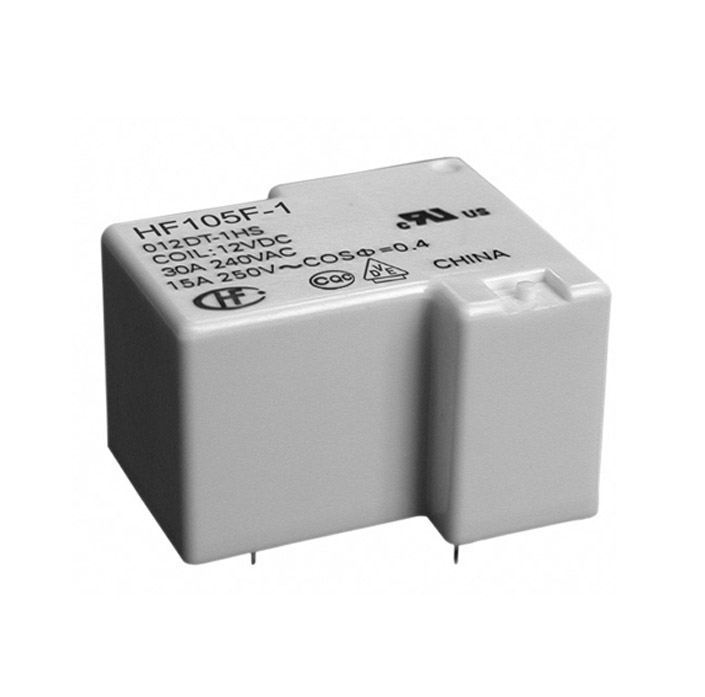

20 Amp 1 Pole Changeover Relay AC Coil Version With Pin 6

20 Amp 1 Pole Changeover Relay AC Coil Version With Pin 6

  • 20 Amp switching capacity
  • AC Coil
  • 1 Form C contact
  • Heavy load up to 7200VA
  • Wash tight
  • 4KV dielectric strength (between coil and contacts)
  • Class F Insulation available
  • Contact materials AgSnO2
  • RoHS compliant
  • Approvals UL, CUL and TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price
HF105F1012A61ZSTF HONGFA PCB POWER RELAY 12VAC 1CO HF105F-1/012A6-1ZSTF(136) 1C - Single Pole Changeover 12VAC 2VA 15.6 20 AMP 25 x (1�10%) 9.6 2.4
HF105F1024A61ZSTF HONGFA PCB POWER RELAY 24VAC 1CO HF105F-1/024A6-1ZSTF(136) 1C - Single Pole Changeover 24VAC 2VA 31.2 20 AMP 100 x (1�10%) 19.2 4.8
HF105F1120A61ZSTF HONGFA PCB POWER RELAY 120AC 1CO HF105F-1/120A6-1ZSTF(136) 1C - Single Pole Changeover 120VAC 2VA 156 20 AMP 2500 x (1�10%) 96 24
HF105F1208A61ZSTF HONGFA PCB POWER RELAY 208AC 1CO HF105F-1/208A6-1ZSTF(136) 1C - Single Pole Changeover 208VAC 2VA 270.4 20 AMP 11000 x (1�10%) 166.4 41
HF105F1240A61ZSTF HONGFA PCB POWER RELAY 240AC 1CO HF105F-1/240A6-1ZSTF(136) 1C - Single Pole Changeover 240VAC 2VA 286 20 AMP 13490 x (1�10%) 192 48
HF105F1277A61ZSTF HONGFA PCB POWER RELAY 277AC 1CO HF105F-1/277A6-1ZSTF(136) 1C - Single Pole Changeover 277VAC 2VA 360.1 20 AMP 15000 x (1�10%) 220 54
