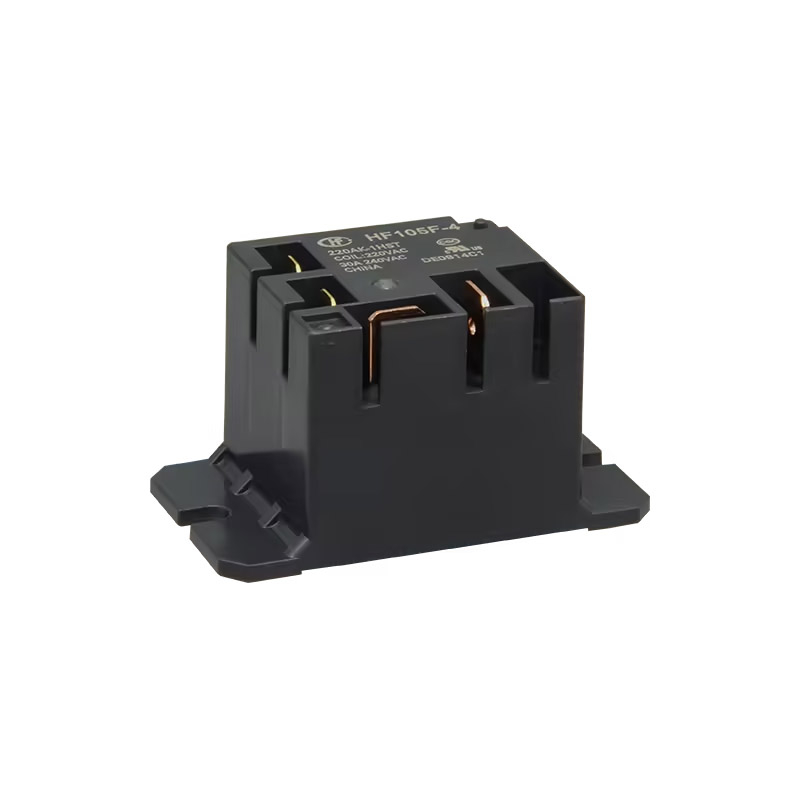

20 Amp 1 Pole Changeover Relay AC Coil 4.8mm Coil Terminal

20 Amp 1 Pole Changeover Relay AC Coil 4.8mm Coil Terminal

  • 20 Amp switching capacity
  • AC Coil
  • 1 Form C contact
  • Heavy load up to 7200VA
  • Wash tight
  • 2.5KV dielectric strength (between coil and contacts)
  • Contact materials AgSnO2
  • RoHS compliant
  • QC (Faston) terminals, suitable for heavy loads
  • Approvals UL, CUL and TUV



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price
HF105F4012AK1ZSTF HONGFA POWER RELAY 12AC 1CO HF105F-4/012AK-1ZSTF(136) 1C - Single Pole Changeover 12VAC 2VA 15.6 20 AMP 25 x (1�10%) 9.6 2.4
HF105F4024AK1ZSTF HONGFA POWER RELAY 24AC 1CO HF105F-4/024A-1ZSTF(136) 1C - Single Pole Changeover 24VAC 2VA 31.2 20 AMP 100 x (1�10%) 19.2 4.8
HF105F4120AK1ZSTF HONGFA POWER RELAY 120AC 1CO HF105F-4/120AK-1ZSTF(136) 1C - Single Pole Changeover 120VAC 2VA 156 20 AMP 2500 x (1�10%) 96 24
HF105F4208AK1ZSTF HONGFA POWER RELAY 208AC 1CO HF105F-4/208AK-1ZSTF(136) 1C - Single Pole Changeover 208VAC 2VA 270.4 20 AMP 11000 x (1�10%) 166.4 41
HF105F4220AK1ZSTF HONGFA POWER RELAY 220AC 1CO HF105F-4/220AK-1ZSTF(136) 1C - Single Pole Changeover 220VAC 2VA 286 20 AMP 13490 x (1�10%) 176 44
HF105F4240AK1ZSTF HONGFA POWER RELAY 240AC 1CO HF105F-4/240AK-1ZSTF(136) 1C - Single Pole Changeover 240VAC 2VA 286 20 AMP 13490 x (1�10%) 192 48
HF105F4277AK1ZSTF HONGFA POWER RELAY 277AC 1CO HF105F-4/277AK-1ZSTF(136) 1C - Single Pole Changeover 277VAC 2VA 360.1 20 AMP 15000 x (1�10%) 220 54
