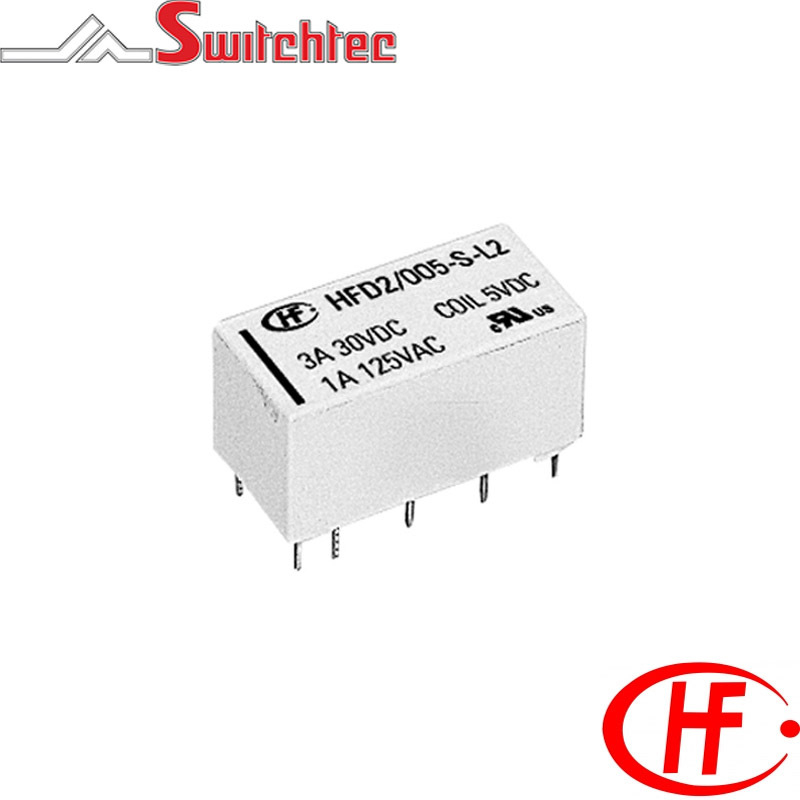

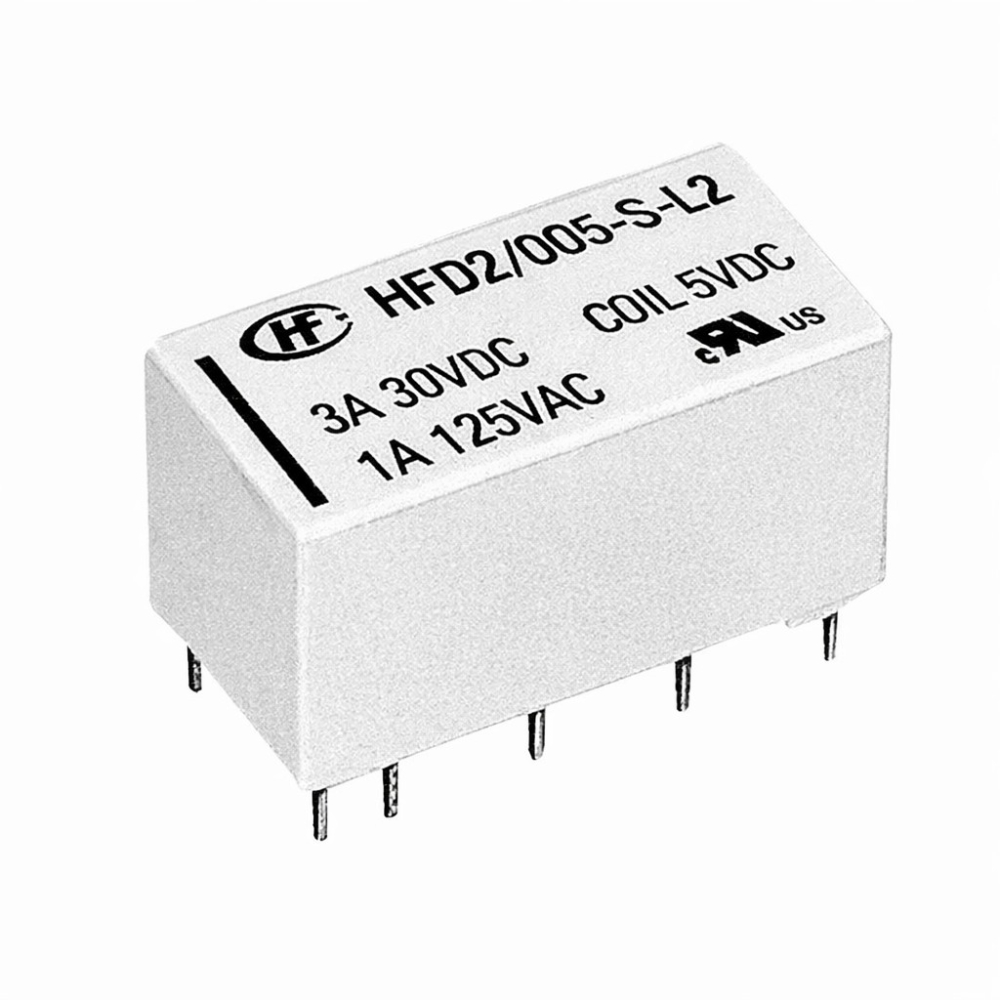

2 Coil Latching (Standard) 200mW 1 Amp

2 Coil Latching (Standard) 200mW 1 Amp

  • 1A 125VAC / 2A 30VDC contact rating
  • 2 pole c/o contacts
  • 2 Coil Latching versions
  • Standard version
  • Fully sealed
  • Contact Materia; AgPd60/Ag – AuAg8, others available upon request
  • Bifurcated contacts
  • RoHS Compliant
  • Approvals UL/CSA



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Coil ? � 10% Set/Reset Voltage VDC Max Price
HFD2-005M-L2 HONGFA PCB SIGNAL RELAY 5VDC 2A 2CO HFD2/005-M-L2 2C - Double Pole Changeover 5VDC 200mW 10 3AMP 125 x (1�10%) 3.75
HFD2-006M-L2 HONGFA PCB SIGNAL RELAY 6VDC 2A 2CO HFD2/006-M-L2 2C - Double Pole Changeover 6VDC 200mW 12 3AMP 180 x (1�10%) 4.5
HFD2-009M-L2 HONGFA PCB SIGNAL RELAY 9VDC 2A 2CO HFD2/009-M-L2 2C - Double Pole Changeover 9VDC 200mW 18 3AMP 405 x (1�10%) 6.75
HFD2-012M-L2 HONGFA PCB SIGNAL RELAY 12VDC 2A 2CO HFD2/012-M-L2 2C - Double Pole Changeover 12VDC 200mW 24 3AMP 720 x (1�10%) 9
HFD2-015M-L2 HONGFA PCB SIGNAL RELAY 15VDC 2A 2CO HFD2/015-M-L2 2C - Double Pole Changeover 15VDC 200mW 30 3AMP 1125 x (1�10%) 11.25
HFD2-024M-L2 HONGFA PCB SIGNAL RELAY 24VDC 2A 2CO HFD2/024-M-L2 2C - Double Pole Changeover 24VDC 200mW 48 3AMP 2040 x (1�10%) 18
