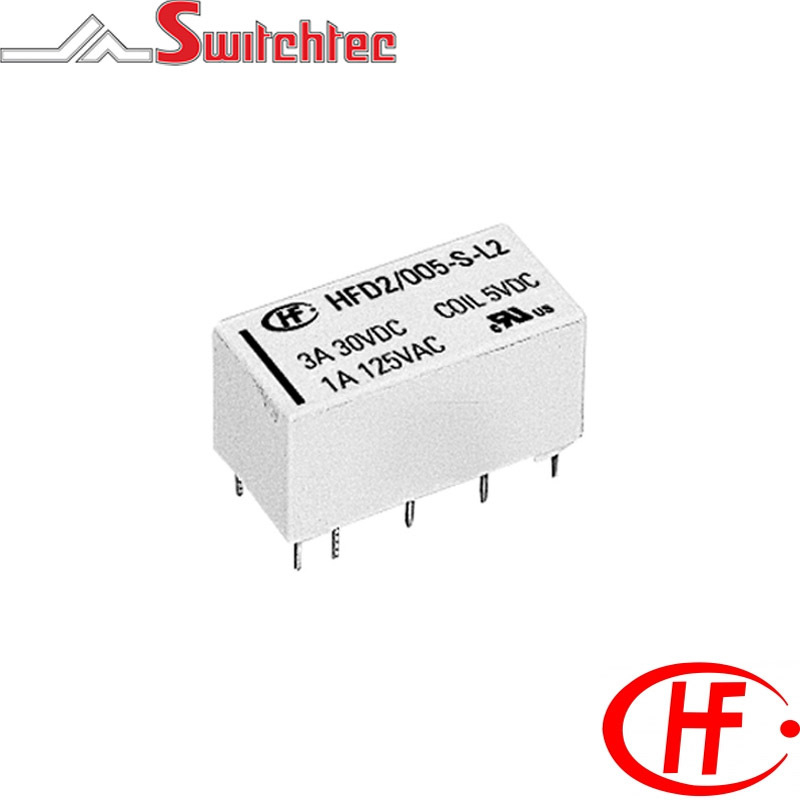

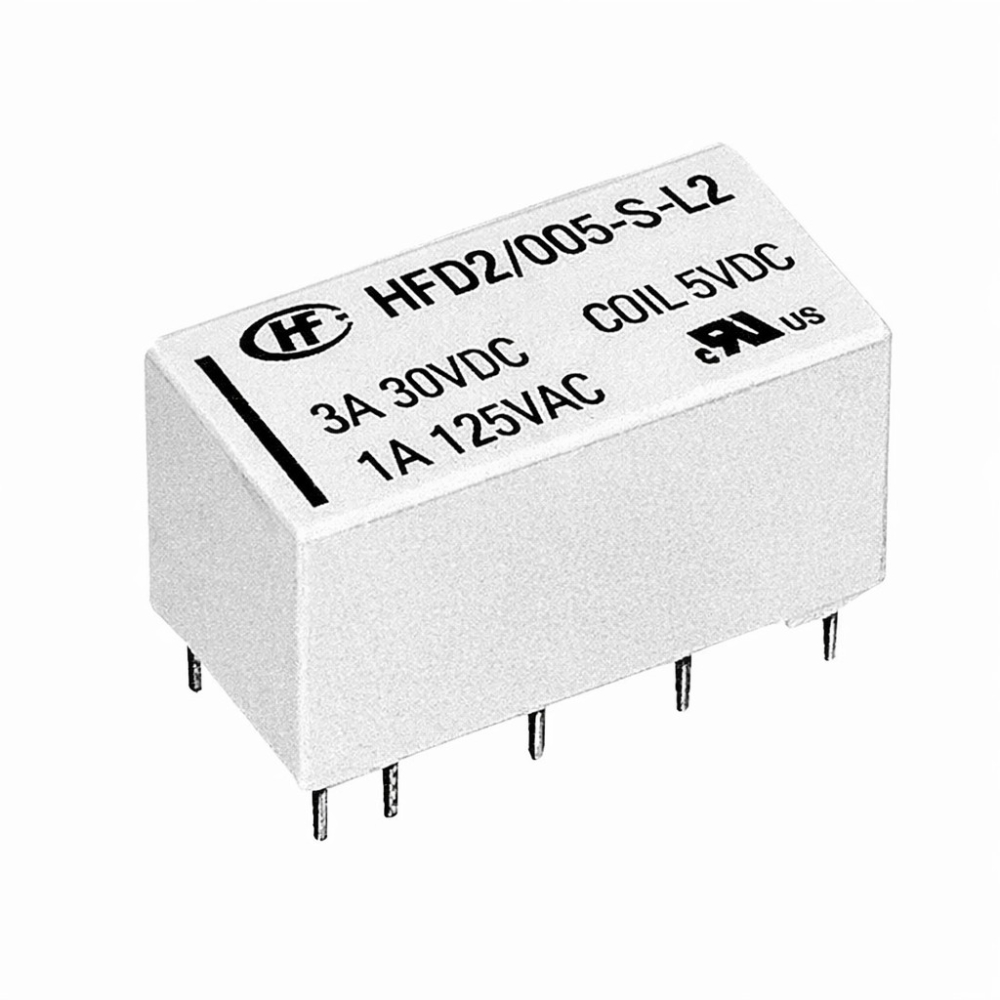

2 Coil Latching (Sensitive) 150mW 1 Amp

2 Coil Latching (Sensitive) 150mW 1 Amp

  • 1A 125VAC / 2A 30VDC contact rating
  • 2 pole c/o contacts
  • 2 Coil Latching versions
  • Sensitive version
  • High Sensitive Type 150mW
  • Fully sealed
  • Contact Materia; AgPd60/Ag – AuAg8, others available upon request
  • Bifurcated contacts
  • RoHS Compliant
  • Approvals UL/CSA



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Coil ? � 10% Set/Reset Voltage VDC Max Price
HFD2-003-S-L2 HONGFA PCB SIGNAL RELAY 3VDC 2A 2CO HFD2/003-S-L2 2C - Double Pole Changeover 3VDC 150mW 6.9 3AMP 60 x (1�10%) 2.4
HFD2-006-S-L2 HONGFA PCB SIGNAL RELAY 6VDC 2A 2CO HFD2/006-S-L2 2C - Double Pole Changeover 6VDC 150mW 13.8 3AMP 240 x (1�10%) 4.8
HFD2-009-S-L2 HONGFA PCB SIGNAL RELAY 9VDC 2A 2CO HFD2/009-S-L2 2C - Double Pole Changeover 9VDC 150mW 20.8 3AMP 540 x (1�10%) 7.2
HFD2005SL2 HONGFA PCB SIGNAL RELAY 5VDC 2A 2CO HFD2/005-S-L2 2C - Double Pole Changeover 5VDC 150mW 11.5 3AMP 167 x (1�10%) 4
HFD2012SL2 HONGFA PCB SIGNAL RELAY 12VDC 2A 2CO HFD2/012-S-L2 2C - Double Pole Changeover 12VDC 150mW 27.7 3AMP 960 x (1�10%) 9.6
HFD2024SL2 HONGFA PCB SIGNAL RELAY 24VDC 2A 2CO HFD2/024-S-L2 2C - Double Pole Changeover 24VDC 150mW 34.6 3AMP 1500 x (1�10%) 12
