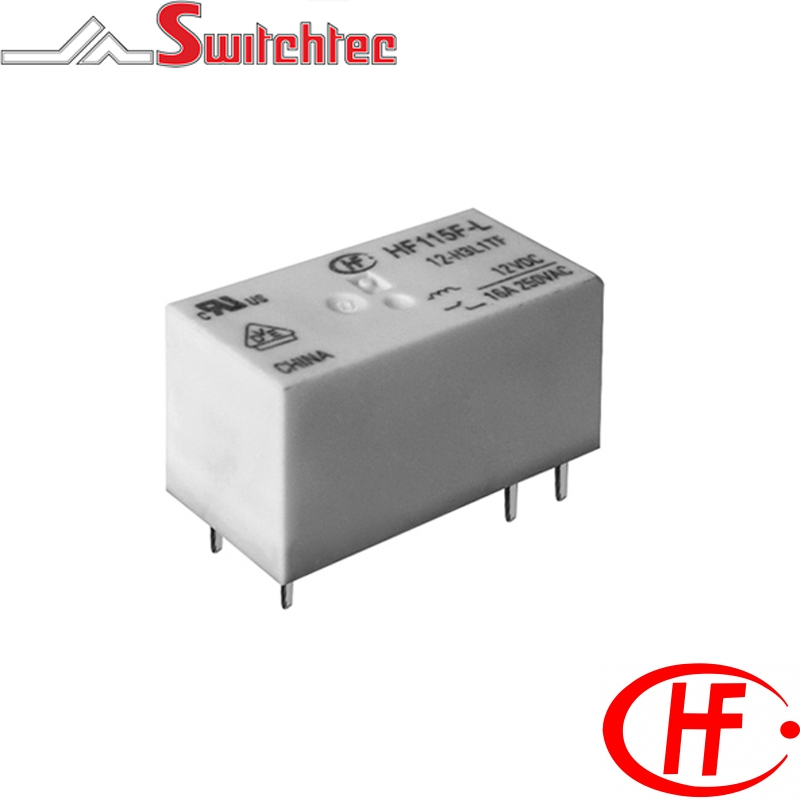

2 Coil Latching

2 Coil Latching

  • 16 Amp switching capacity
  • 5KV dielectric strength (between coil and contacts)
  • 1 Form A contact
  • 600mW Coil
  • Creepage distance 11mm
  • Plastic sealed and Flux proofed types available
  • RoHS compliant
  • Compliant with VDE 0631/0700
  • Approvals VDE & UL
  • Relays compliant with IEC 60335-1 also available
  • Class F Insulation



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Coil ? � 10% Set/Reset Voltage VDC Max Pulse Duration ms min. Price
HF115FL005HS3L2 HONGFA PCB POWER RELAY 5VDC 16A 1NO HF115F-L/005-HS3L2 1A - Single Pole Normally Open 5VDC 400mW 6 16 AMP 42 x (1�10%) 3.5 50
HF115FL006HS3L2 HONGFA PCB POWER RELAY 6VDC 16A 1NO HF115F-L/006-HS3L2 1A - Single Pole Normally Open 6VDC 400mW 7.2 16 AMP 55 x (1�10%) 4.2 50
HF115FL009HS3L2 HONGFA PCB POWER RELAY 9VDC 16A 1NO HF115F-L/009-HS3L2 1A - Single Pole Normally Open 9VDC 400mW 10.8 16 AMP 135 x (1�10%) 6.3 50
HF115FL012HS3L2 HONGFA PCB POWER RELAY 12VDC 16A 1NO HF115F-L/012-HS3L2 1A - Single Pole Normally Open 12VDC 400mW 14.4 16 AMP 240 x (1�10%) 8.4 50
HF115FL024HS3L2 HONGFA PCB POWER RELAY 24VDC 16A 1NO HF115F-L/024-HS3L2 1A - Single Pole Normally Open 24VDC 400mW 28.8 16 AMP 886 x (1�10%) 16.8 50
