VAC

VAC

  • 18 Amp switching capacity
  • 4.0VA Coil
  • 2KV dielectric strength (between coil and contacts)
  • Class F insulation
  • RoHS compliant
  • Approvals UL





No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price

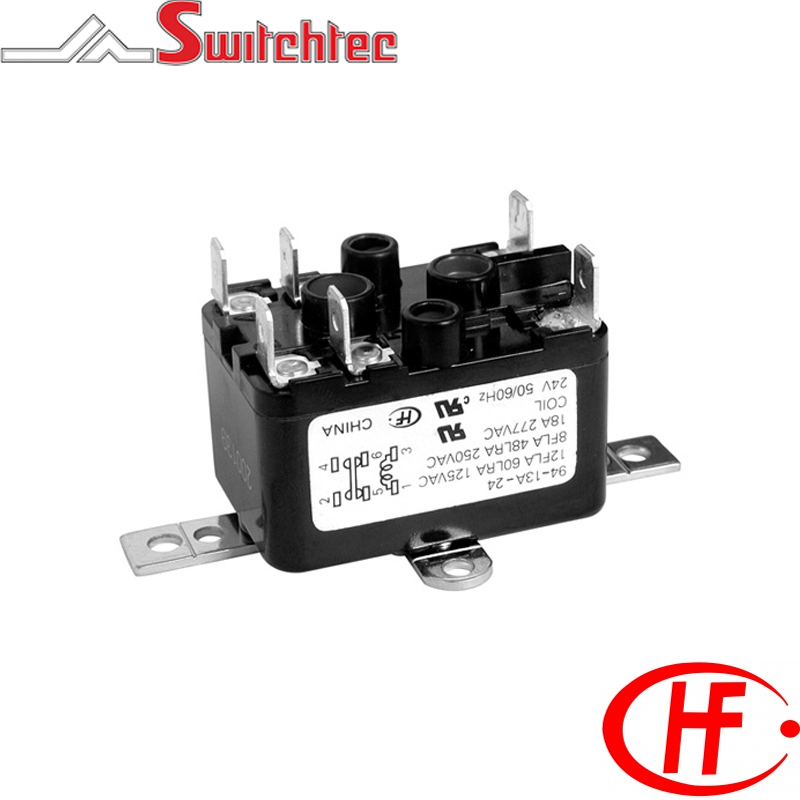

HF94F13A006 HONGFA INDUSTRIAL RELAY 6VAC 18A 1NO+NC HF94F-13A006 1A + 1B - Single pole Normally Open + Normally Closed 6VAC 4.0VA 6.6 18 AMP 4.8 x (1�10%) 5.1 1.2
HF94F13A012 HONGFA INDUSTRIAL RELAY 12AC 18A 1NO+NC HF94F-13A012 1A + 1B - Single pole Normally Open + Normally Closed 12VAC 4.0VA 13.2 18 AMP 19 x (1�10%) 10.2 2.4
HF94F13A024 HONGFA INDUSTRIAL RELAY 24AC 18A 1NO+NC HF94F-13A024 1A + 1B - Single pole Normally Open + Normally Closed 24VAC 4.0VA 26.4 18 AMP 77 x (1�10%) 20.4 4.8
HF94F13A048 HONGFA INDUSTRIAL RELAY 48AC 18A 1NO+NC HF94F-13A048 1A + 1B - Single pole Normally Open + Normally Closed 48VAC 4.0VA 52.8 18 AMP 280 x (1�10%) 40.8 9.6
HF94F13A120 HONGFA INDUSTRIAL RELAY 120VAC 18A 1NO+NC HF94F-13A120 1A + 1B - Single pole Normally Open + Normally Closed 120VAC 4.0VA 132 18 AMP 2000 x (1�10%) 102 24
HF94F13A240 HONGFA INDUSTRIAL RELAY 240VAC 18A 1NO+NC HF94F-13A240 1A + 1B - Single pole Normally Open + Normally Closed 240VAC 4.0VA 264 18 AMP 7250 x (1�10%) 204 48
HF94F13A277 HONGFA INDUSTRIAL RELAY 277VAC 18A 1NO+NC HF94F-13A277 1A + 1B - Single pole Normally Open + Normally Closed 277VAC 4.0VA 304.7 18 AMP 11000 x (1�10%) 235 55.4
