VDC

VDC

  • 18 Amp switching capacity
  • 2.4W Coil
  • 2KV dielectric strength (between coil and contacts)
  • Class F insulation
  • RoHS compliant
  • Approvals UL



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price

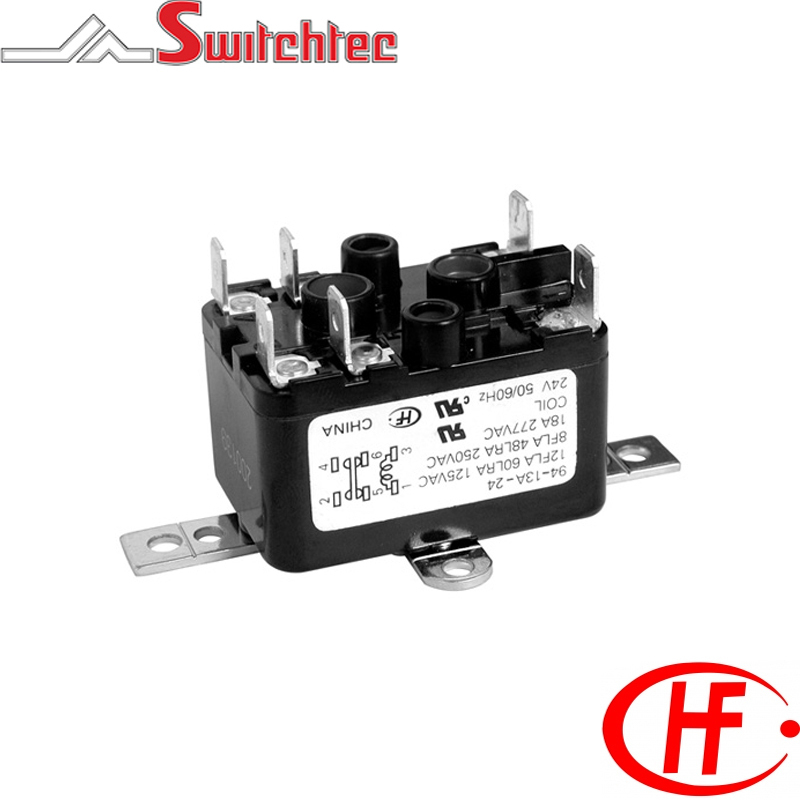

HF94F13D0061 HONGFA INDUSTRIAL RELAY 6VDC 18A 1NO+NC HF94F-13D006-1 1A + 1B - Single pole Normally Open + Normally Closed 6VDC 2400mW 6.6 18 AMP 4.5 0.6 17.5 x (1�10%)
HF94F13D0091 HONGFA INDUSTRIAL RELAY 9VDC 18A 1NO+NC HF94F-13D009-1 1A + 1B - Single pole Normally Open + Normally Closed 9VDC 2400mW 9.9 18 AMP 6.75 0.9 40 x (1�10%)
HF94F13D0121 HONGFA INDUSTRIAL RELAY 12DC 18A 1NO+NC HF94F-13D012-1 1A + 1B - Single pole Normally Open + Normally Closed 12VDC 2400mW 13.2 18 AMP 9 1.2 70 x (1�10%)
HF94F13D0241 HONGFA INDUSTRIAL RELAY 24DC 18A 1NO+NC HF94F-13D024-1 1A + 1B - Single pole Normally Open + Normally Closed 24VDC 2400mW 26.4 18 AMP 18 2.4 280 x (1�10%)
HF94F13D0481 HONGFA INDUSTRIAL RELAY 48DC 18A 1NO+NC HF94F-13D048-1 1A + 1B - Single pole Normally Open + Normally Closed 48VDC 2400mW 52.8 18 AMP 36 4.8 1120 x (1�10%)
HF94F13D1201 HONGFA INDUSTRIAL RELAY 120VDC 18A 1NO+NC HF94F-13D120-1 1A + 1B - Single pole Normally Open + Normally Closed 120VDC 2400mW 132 18 AMP 90 12 7000 x (1�10%)
