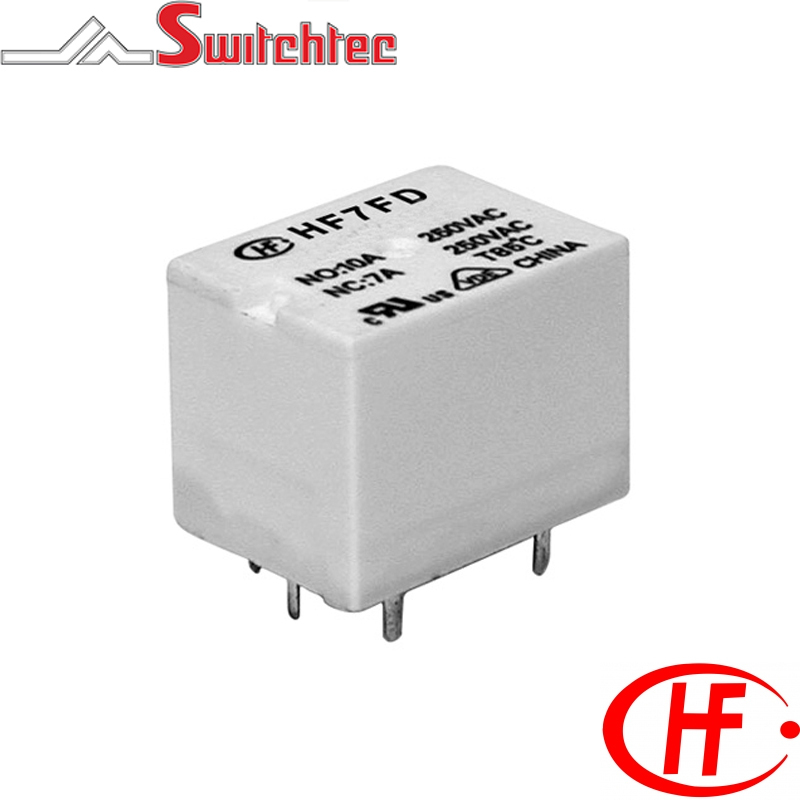

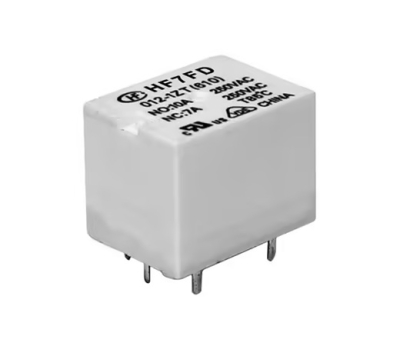

12 Amp 1 Pole Normally Open Relay

12 Amp 1 Pole Normally Open Relay

  • 12A 250VAC contact rating
  • 1 pole Form A
  • Fully sealed as standard
  • Wash Tight and flux proofed types available
  • 2 KV dielectric strength between coil & contacts
  • Contact Materials AgSn02 & AgCdO
  • RoHS compliant
  • UL94, V-0, CT1250 flammability class
  • Approvals UL/CSA & VDE 0631/0700
  • Class F insulation as standard



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF7FD0031HSTF HONGFA PCB CUBE RELAY 3VDC 10A SPST HF7FD/003-1HSTF 1A - Single Pole Normally Open 3VDC 360mW 3.9 16 AMP 2.25 0.3 25 x (1�10%)
HF7FD0051HSTF HONGFA PCB CUBE RELAY 5VDC 10A SPST HF7FD/005-1HSTF 1A - Single Pole Normally Open 5VDC 360mW 6.5 16 AMP 3.75 0.5 70 x (1�10%)
HF7FD0061HSTF HONGFA PCB CUBE RELAY 6VDC 10A SPST HF7FD/006-1HSTF 1A - Single Pole Normally Open 6VDC 360mW 7.8 16 AMP 4.5 0.6 100 x (1�10%)
HF7FD0091HSTF HONGFA PCB CUBE RELAY 9VDC 10A SPST HF7FD/009-1HSTF 1A - Single Pole Normally Open 9VDC 360mW 11.7 16 AMP 6.75 0.9 225 x (1�10%)
HF7FD0121HSTF HONGFA PCB CUBE RELAY 12VDC 10A SPST HF7FD/012-1HSTF 1A - Single Pole Normally Open 12VDC 360mW 15.6 16 AMP 9 1.2 400 x (1�10%)
HF7FD0181HSTF HONGFA PCB CUBE RELAY 18VDC 10A SPST HF7FD/018-1HSTF 1A - Single Pole Normally Open 18VDC 360mW 23.4 16 AMP 13.5 1.8 900 x (1�10%)
HF7FD0241HSTF HONGFA PCB CUBE RELAY 24VDC 10A SPST HF7FD/024-1HSTF 1A - Single Pole Normally Open 24VDC 360mW 31.2 16 AMP 18 2.4 1600 x (1�15%)
HF7FD0481HSTF HONGFA PCB CUBE RELAY 48VDC 10A SPST HF7FD/048-1HSTF 1A - Single Pole Normally Open 48VDC 360mW 62.4 16 AMP 36 4.8 6400 x (1�15%)
