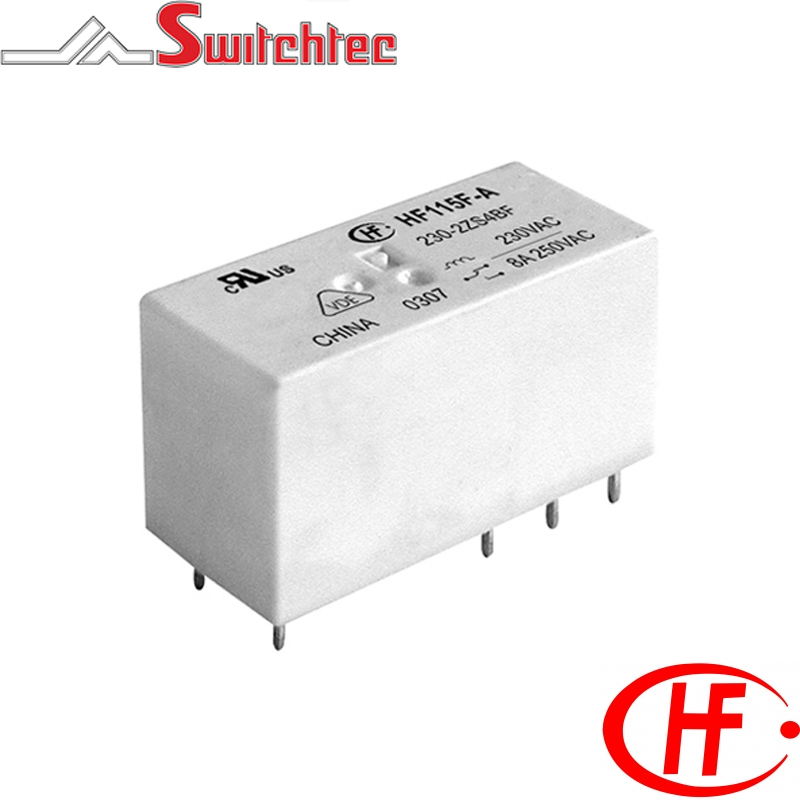

16 Amp Normally Closed 5mm Pinning - 1 Form B

16 Amp Normally Closed 5mm Pinning - 1 Form B

  • 16 amp switching capacity
  • 0.75VA rated coil
  • 5KVA dielectric strength (between coil & contacts)
  • 1 Form B contact
  • Creepage distance 10mm
  • AC coil version
  • Contact Material AgSnO2 as standard
  • Available on request AgCdO, AgNi, AgCdO + Au plated and AgNi + Au plated contacts
  • RoHS Complaint
  • Fully sealed as standard
  • Compliant with VDE 0435/0631/0700
  • Approvals VDE,UL & CUR
  • P.C. & DIN rail sockets available
  • Insulation Class F



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VAC Maximum Rated Switching Current Coil ? � 10% Pick Up Max VAC Drop Out Max VAC Price
HF115FA0241DS3AF HONGFA PCB POWER RELAY 24VAC 16A 1NC HF115F-A/024-1DS3AF 1B - Single Pole Normally Closed 24VAC 0.75VA 31.6 16 AMP 350 x (1�10%) 18 3.6
HF115FA1151DS3AF HONGFA PCB POWER RELAY 115VAC 16A 1NC HF115F-A/115-1DS3AF 1B - Single Pole Normally Closed 115VAC 0.75VA 6.6 16 AMP 8110 x (1�15%) 86.3 17.3
HF115FA2301DS3AF HONGFA PCB POWER RELAY 230VAC 16A 1NC HF115F-A/230-1DS3AF 1B - Single Pole Normally Closed 230VAC 0.75VA 3.2 16 AMP 32500 x (1�15%) 172.5 34.5
