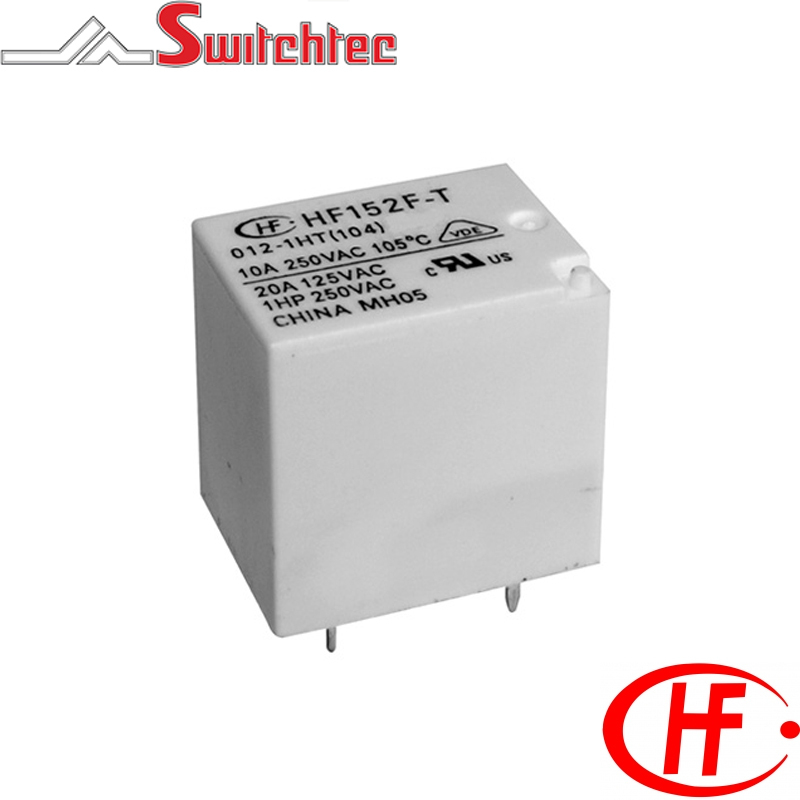

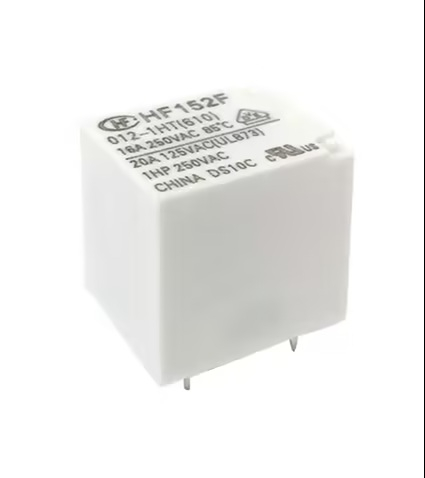

16 Amp 1 Pole Changeover Relay

16 Amp 1 Pole Changeover Relay

  • 16 amp switching capacity
  • 1 pole Changeover Form C
  • High temperature version available (105C)
  • Fully sealed
  • 360mW Coil
  • Surge voltage up to 6000VA
  • Contact materials AgSnO2; AgNi also available
  • Gold plated contacts available
  • RoHS Complaint
  • Approvals UL, CUL & VDE
  • TV-8 125VAC rating Form A type HF152T



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF152F0031ZST HONGFA PCB CUBE RELAY 3VDC 16A 1CO HF152F/003-1ZST 1C - Single Pole Changeover 3VDC 360mW 3.9 16 AMP 2.25 0.3 25 x (1�10%)
HF152F0051ZST HONGFA PCB CUBE RELAY 5VDC 16A 1CO HF152F/005-1ZST 1C - Single Pole Changeover 5VDC 360mW 6.5 16 AMP 3.75 0.5 70 x (1�10%)
HF152F0061ZST HONGFA PCB CUBE RELAY 6VDC 16A 1CO HF152F/006-1ZST 1C - Single Pole Changeover 6VDC 360mW 7.8 16 AMP 4.5 0.6 100 x (1�10%)
HF152F0091ZST HONGFA PCB CUBE RELAY 9VDC 16A 1CO HF152F/009-1ZST 1C - Single Pole Changeover 9VDC 360mW 11.7 16 AMP 6.75 0.9 225 x (1�10%)
HF152F0121ZST HONGFA PCB CUBE RELAY 12VDC 16A 1CO HF152F/012-1ZST 1C - Single Pole Changeover 12VDC 360mW 15.6 16 AMP 9 1.2 400 x (1�10%)
HF152F0181ZST HONGFA PCB CUBE RELAY 18VDC 16A 1CO HF152F/018-1ZST 1C - Single Pole Changeover 18VDC 360mW 23.4 16 AMP 13.5 1.8 900 x (1�10%)
HF152F0241ZST HONGFA PCB CUBE RELAY 24VDC 16A 1CO HF152F/024-1ZST 1C - Single Pole Changeover 24VDC 360mW 31.2 16 AMP 18 2.4 1600 x (1�10%)
HF152F0481ZST HONGFA PCB CUBE RELAY 48VDC 16A 1CO HF152F/048-1ZST 1C - Single Pole Changeover 48VDC 360mW 62.4 16 AMP 36 4.8 6400 x (1�10%)
