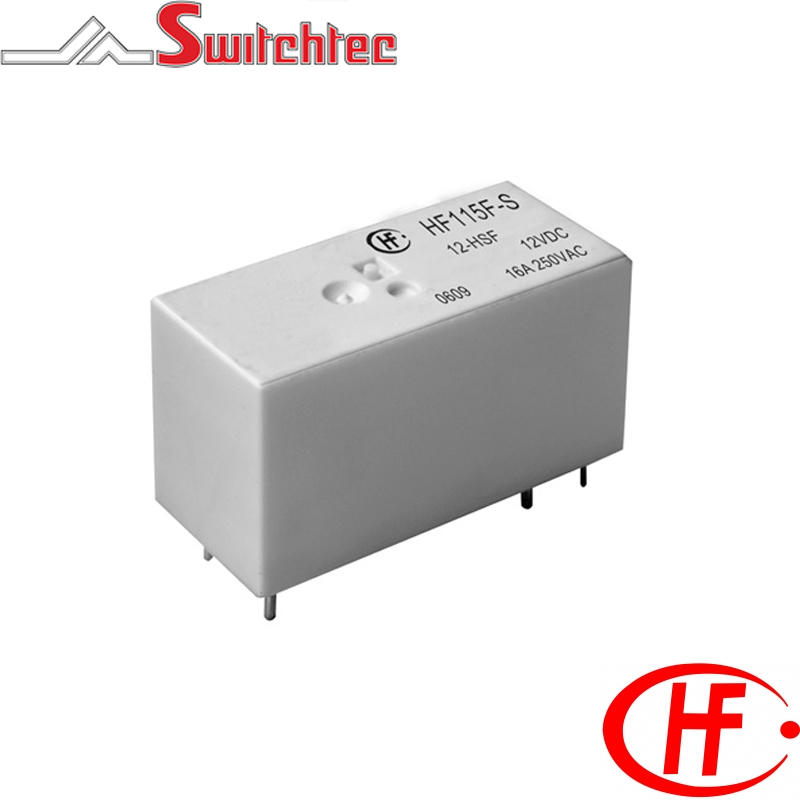

16 Amp 1 Pole Normally Open - 1 Form A

16 Amp 1 Pole Normally Open - 1 Form A

  • 16 Amp switching capacity
  • 5KV dielectric strength (between coil and contacts)
  • 1 Form A contact
  • 400mW Coil
  • Creepage distance 10mm
  • Plastic sealed and Flux proofed types available
  • RoHS compliant
  • Approvals VDE UL & CQC



No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Contact Arrangement Coil Voltage Coil Power Max VDC Maximum Rated Switching Current Pick Up Max VDC Drop Out Max VDC Coil ? � 10% Price
HF115FS005HSF HONGFA PCB POWER RELAY 5VDC 16A 1NO HF115F-S/005-HSF 1A - Single Pole Normally Open 5VDC 400mW 7.5 16 AMP 3.5 0.5 62 x (1�10%)
HF115FS006HSF HONGFA PCB POWER RELAY 6VDC 16A 1NO HF115F-S/006-HSF 1A - Single Pole Normally Open 6VDC 400mW 9 16 AMP 4.2 0.6 90 x (1�10%)
HF115FS009HSF HONGFA PCB POWER RELAY 9VDC 16A 1NO HF115F-S/009-HSF 1A - Single Pole Normally Open 9VDC 400mW 13.5 16 AMP 6.3 0.9 202 x (1�10%)
HF115FS012HSF HONGFA PCB POWER RELAY 12VDC 16A 1NO HF115F-S/012-HSF 1A - Single Pole Normally Open 12VDC 400mW 18 16 AMP 8.4 1.2 360 x (1�10%)
HF115FS018HSF HONGFA PCB POWER RELAY 18VDC 16A 1NO HF115F-S/018-HSF 1A - Single Pole Normally Open 18VDC 400mW 27 16 AMP 12.6 1.8 810 x (1�10%)
HF115FS024HSF HONGFA PCB POWER RELAY 24VDC 16A 1NO HF115F-S/024-HSF 1A - Single Pole Normally Open 24VDC 400mW 36 16 AMP 16.8 2.4 1440 x (1�10%)
HF115FS060HSF HONGFA PCB POWER RELAY 60VDC 16A 1NO HF115F-S/060-HSF 1A - Single Pole Normally Open 60VDC 400mW 90 16 AMP 42 6 7500 x (1�15%)
HF115FS110HSF HONGFA PCB POWER RELAY 110VDC 16A 1NO HF115F-S/110-HSF 1A - Single Pole Normally Open 110VDC 400mW 165 16 AMP 77 11 25200 x (1�15%)
